DEWESOFT SIRIUS-SBOXe - ACC+ (Counter)

/
SIRIUS
® 
TECHNICAL REFERENCE MANUAL 


5.8.3. ACC+ (Counter) 
As an additional function to the ACC module, the ACC+ module also has a 7-pin LEMO connector for                  
digital counters. 


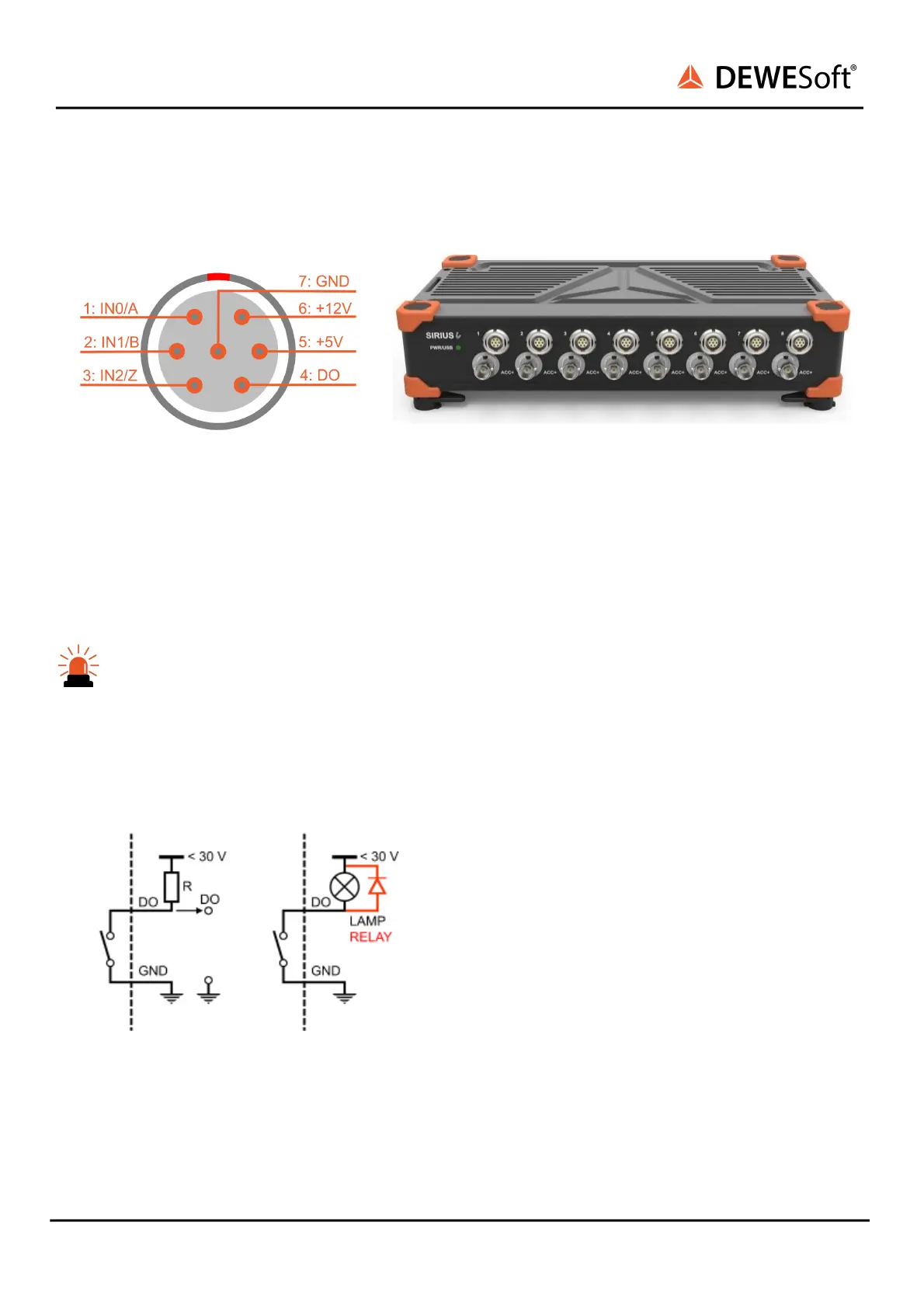

CNT connector: pin-out (7-pin LEMO) 

SIRIUSi-8xACC+ 

Connector type L1B7f 
Connector on the module: EGG.1B.307.CLL 
Mating cable connector: FGG.1B.307.CLAD52 

Caution 
GND of the counter input is connected via a 50 Ω resistor to In- of the analog channel. 

Digital output configuration 

The “switch” of the open collector output is closed when active. 



 
SIRIUS
®
V20-1 151 / 336  
