4.3. Miscellaneous
4.3.1. Click mechanism
You can use the SIRIUS slices independently or combine them to a single fully-synchronised
multi-channel measurement system. The clever Click mechanism makes it easy to physically attach
modules to each other. Click mechanism is available for Modular Solutions, Hub Solutions, SIRIUS Mini,
SIRIUS PCM, SIRIUS-SBOXe, SIRIUS-SBOXfe and some accessories e.g. Battery Packs and Mounting
plates.
To lock two SIRIUS modules turn all four tabs on the bottom of the module into the open position. Now
fit the module right above the fitting of the second module and stack it together as shows the picture
below ❶ . Make sure that it fits well and then turn the four tabs towards the inside of the module to hear
the click ❷ .

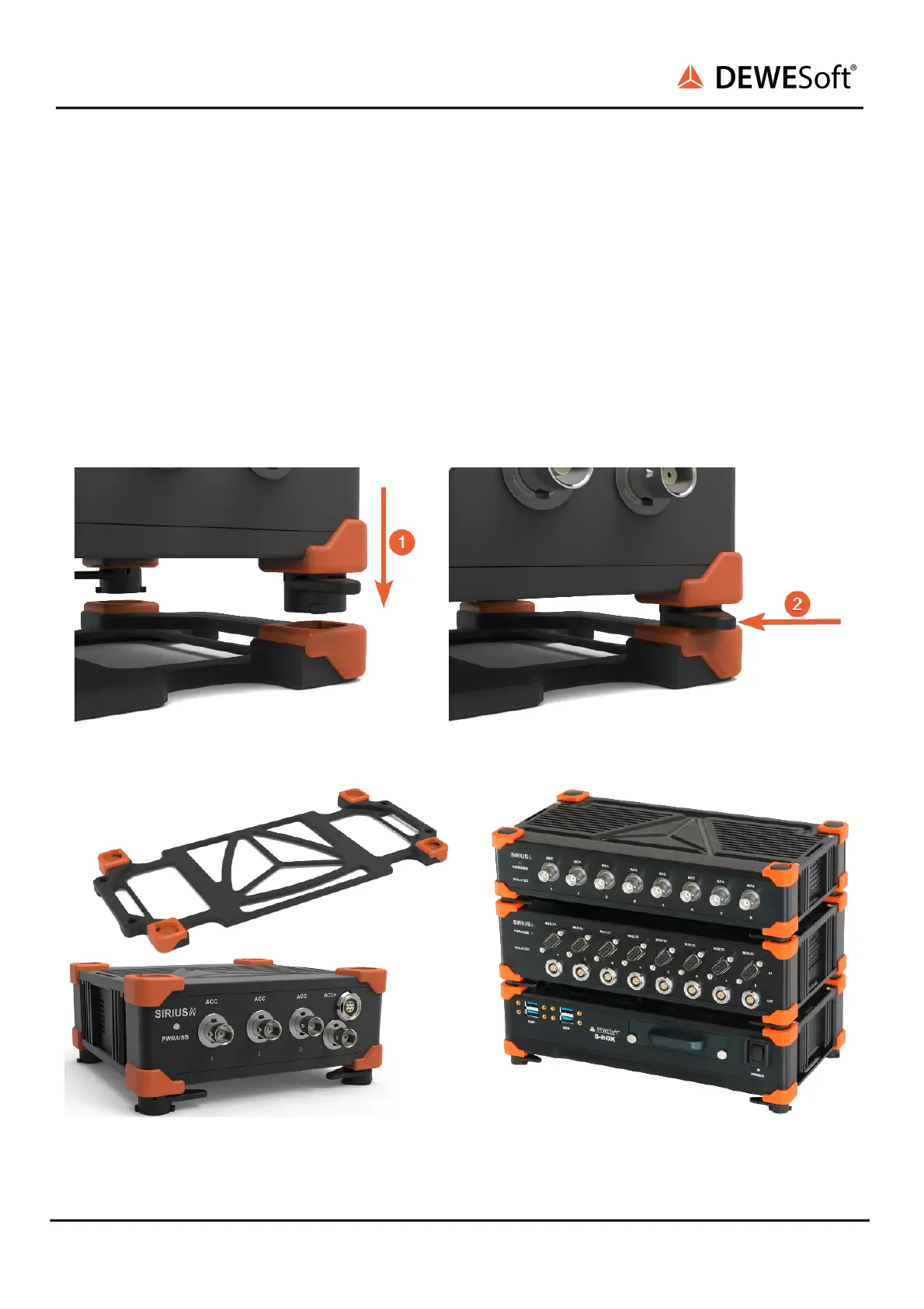

The steps of how to stack the SIRIUS modules with the Click mechanism
Options of using the SIRIUS Click mechanism
