6.1.5.3. Overall alias free bandwidth 
Alias Free analog measurement bandwidth or combined filter response from Analog filter and ADC              
filter response is again presented in illustration below “ Filtering components in SIRIUS® DualCore and              
HD modules ”. 



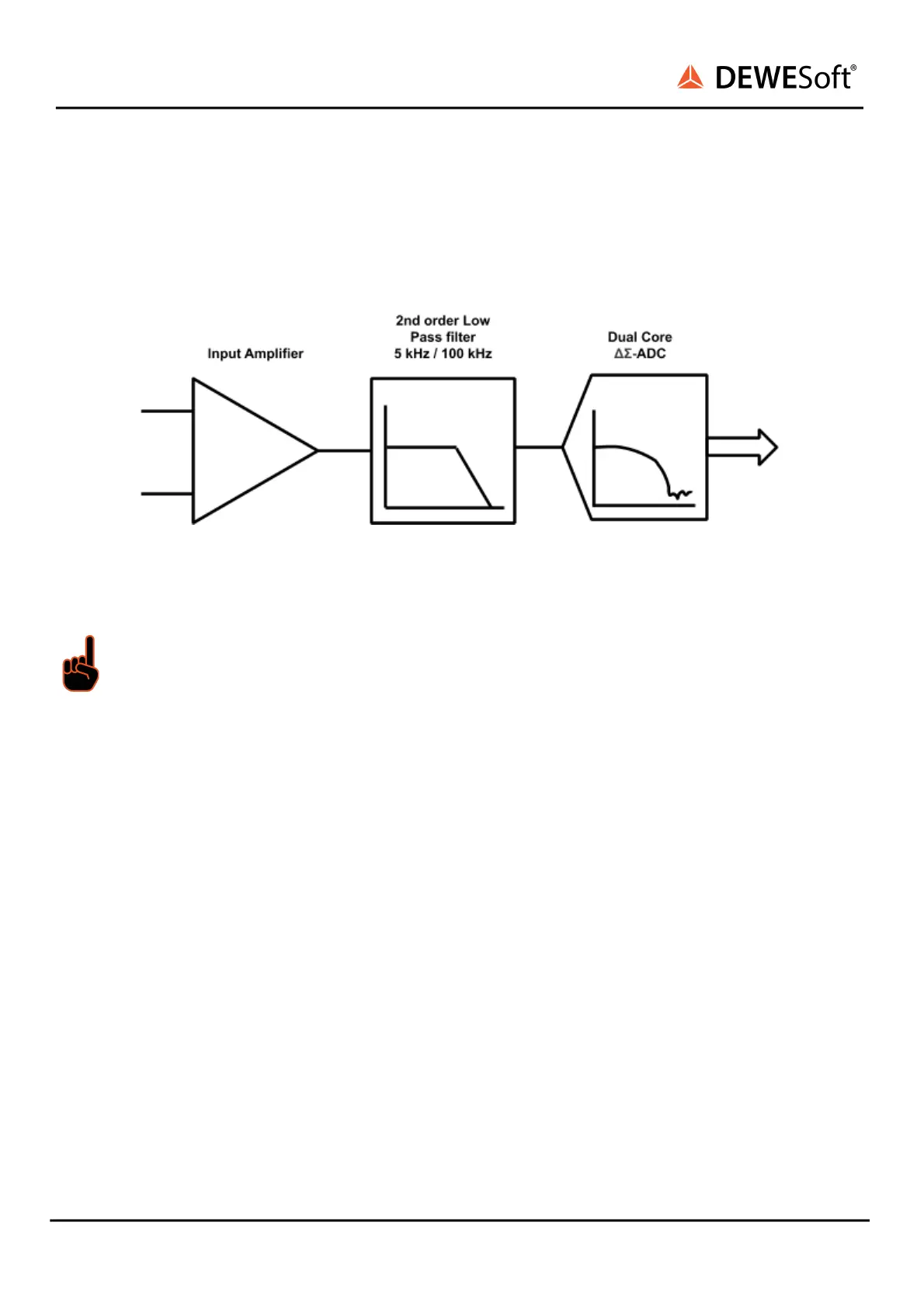

Filtering components in SIRIUS® DualCore and HD modules 

Important 
Analog filter (-3 dB): 
- 5 kHz up to 2 kS/s 
- 100 kHz from 2 kS/s up to 204.8 kS/s 
Digital filter (-3 dB): 
- 0.494 fs up to 51.2 kS/s 
- 0.49 fs from 51.2 kS/s up to 102.4 kS/s 
- 0.38 fs from 102.4 kS/s up to 204.8 kS/s 









