SIRIUS

® 

TECHNICAL REFERENCE MANUAL 



5.12.3. MULTI-L2B16f (STGM-L2B16f) 

Important 

For STGM-L2B16f MULTI: Speciﬁcations will apply, Analog Out is Not Connected! 



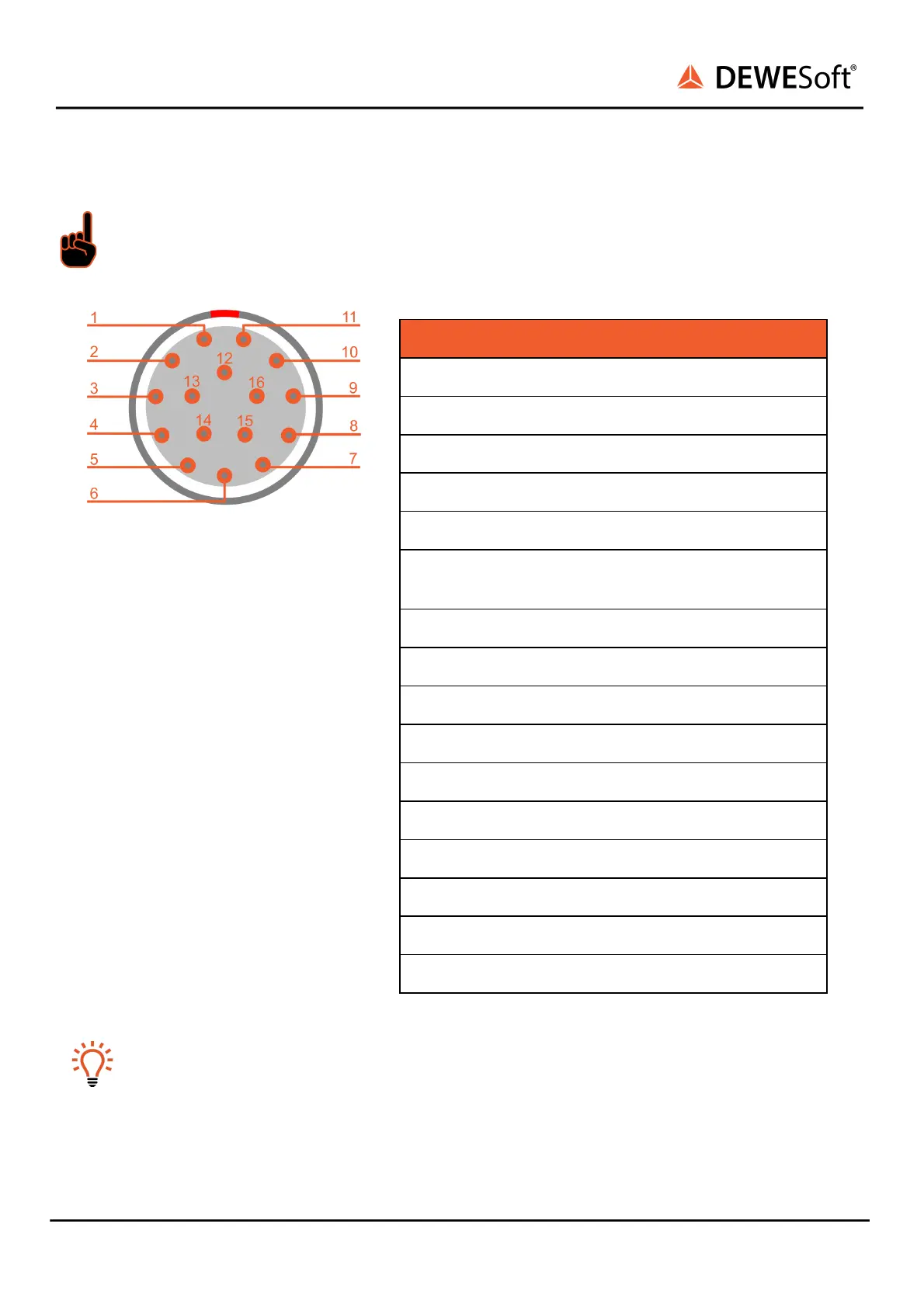

MULTI-L2B16f connector: pin-out 

(16-pin LEMO female) 



Pin 

Name 

Description 

1 

TEDS 

2 

Exc- 

Excitation - 

3 

Exc + 

Excitation + 

4 

R+ 

¼ Bridge/Shunt 

5 

In+ 

Input + 

6 

Aout 

NC 

Analog output (w. MULTI) 

Not Connected (w. STGM) 

7 

Sns+ 

Sense + 

8 

Sns- 

Sense - 

9 

GND 

Ground 

10 

In- 

Input - 

11 

+5V 

+5 V (max. 100 mA) supply 

12 

+14V5 

+14.5 V (max. 50 mA) supply 

13 

IN0/A 

Counter input IN0/A 

14 

IN1/B 

Counter input IN1/B 

15 

IN2/Z 

Counter input IN2/Z 

16 

-14V5 

-14.5 V (max. 50 mA) supply 



Hint 

You can use the analog input, analog output and counters at the same time. 

 

SIRIUS

V20-1 171 / 336  
