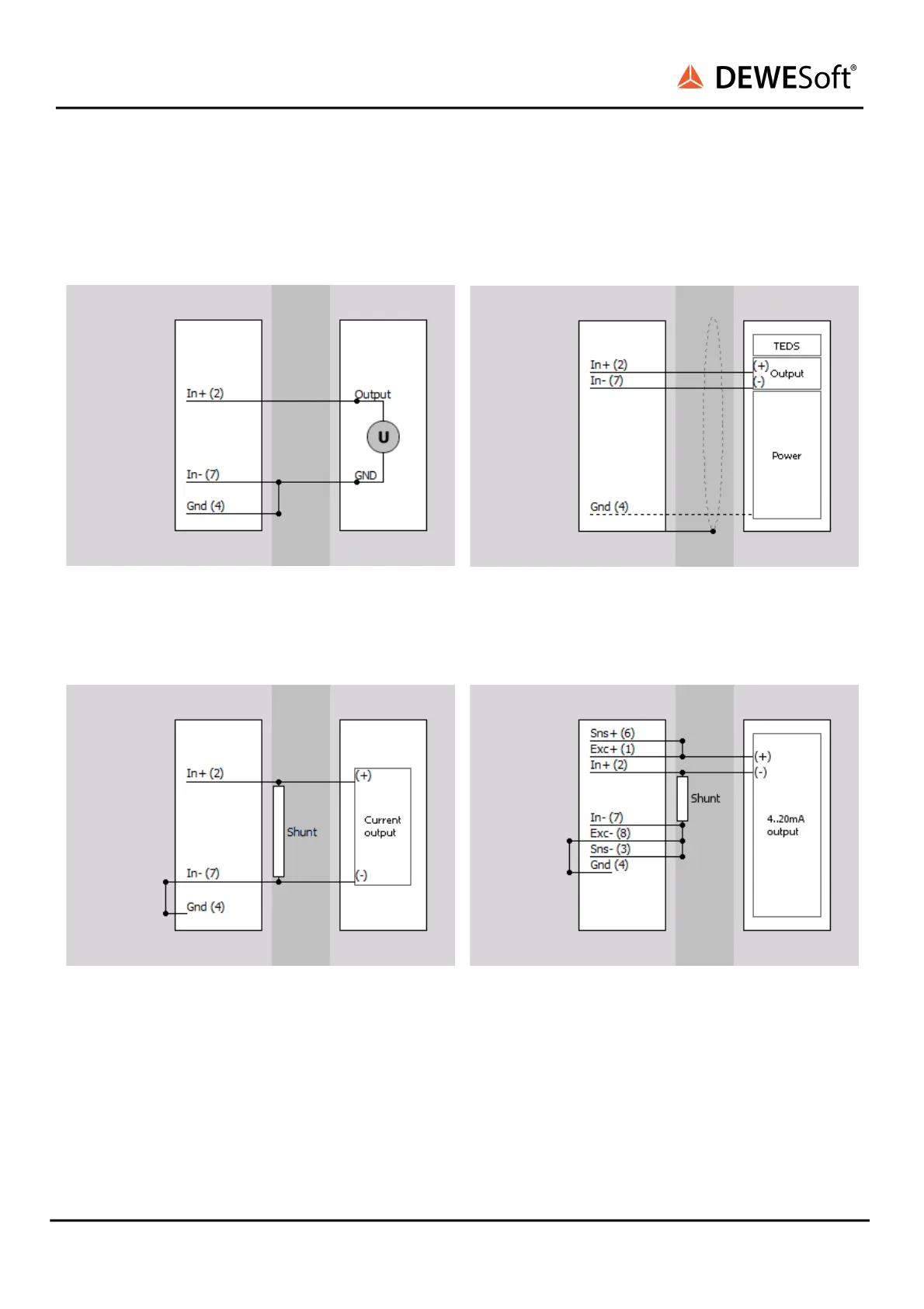

5.13.2.1. STGM: Voltage 
Voltage - Single ended 


Voltage – Differential 
Use only when sensor Output (+) and Output (-) 
are referenced to Gnd. Gnd must be connected.

5.13.2.2. STGM: Current 
External direct shunt 


External loop powered shunt 


