DEWESOFT SIRIUS-SBOXe - HS-CHG+ (Counter)

/
SIRIUS
® 
TECHNICAL REFERENCE MANUAL 



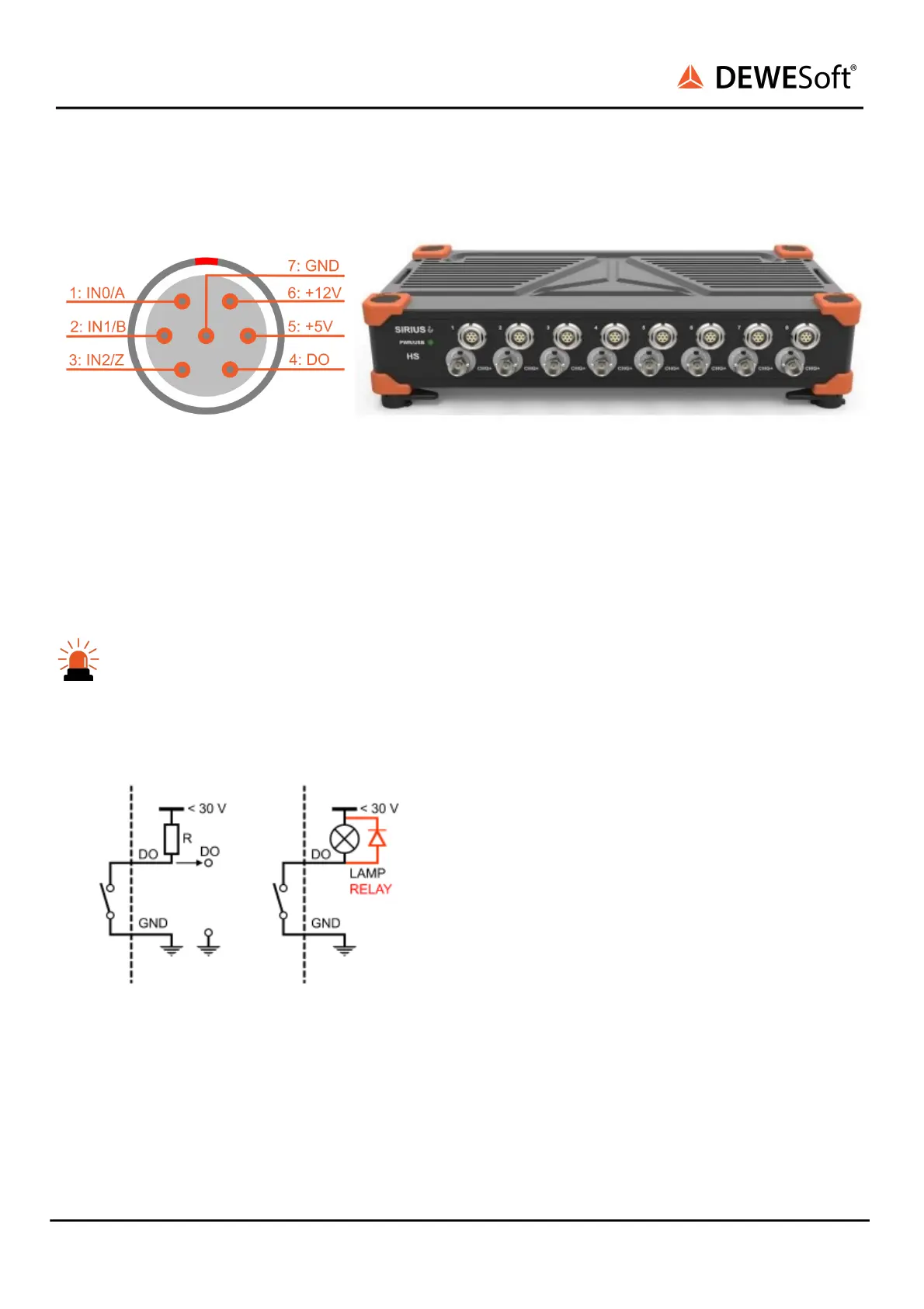

5.19.3. HS-CHG+ (Counter) 
CNT connector: pin-out (7-pin LEMO 
female) 
SIRIUSi-HS-8xCHG+ 


Connector type L1B7f 
Connector on the module: EGG.1B.307.CLL 
Mating cable connector: FGG.1B.307.CLAD52 


Caution 
GND of the counter input is connected via a 50 Ω resistor to In- of the analog channel. 


Digital output configuration 

 
