SIRIUS
®
TECHNICAL REFERENCE MANUAL

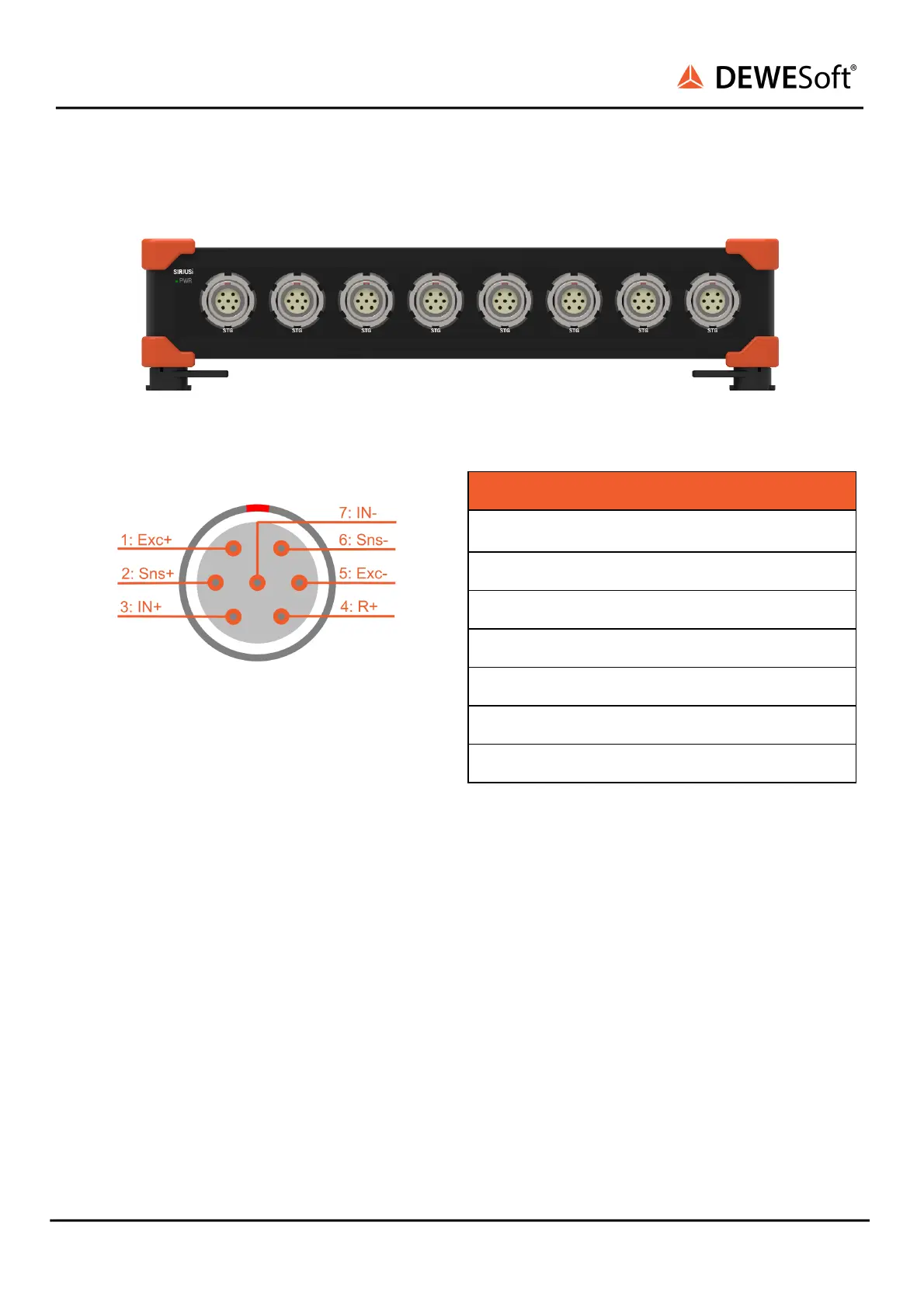

5.14.3. STG-L2B7f
SIRIUSi-8xSTG-L2B7f
STG-L2B7f connector: pin-out (7-pin LEMO female)
Mating Connector: FGG.2B.307.CLADxx
Pin
Name
Description
1
Exc +
Excitation +
2
Sns+
Sense +
3
In+
Input +
4
Exc -
Excitation -
5
Sns-
Sense -
6
In-
Input -
7
R+
¼ Bridge/Shunt
SIRIUS
®
V20-1 194 / 336
