8.2.2.6. No synchronisation 
If you use no synchronisation at all the time shift between the signals of the 2 devices will become                   
bigger and bigger the longer the measurement takes. At the beginning of the measurement the signals                

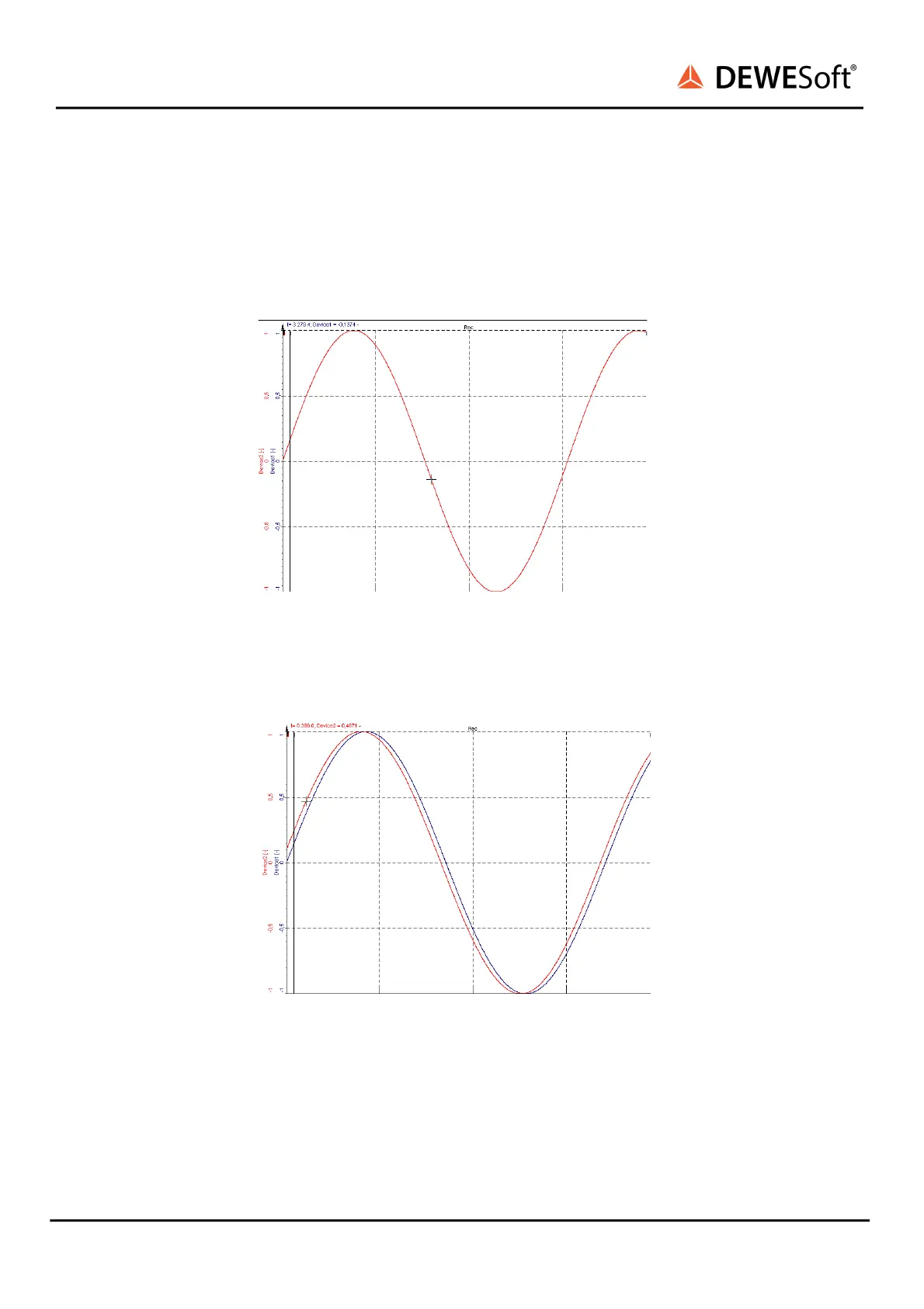

will be very good aligned. In image below “ No sync: start of measurement ” you can only see one of the                    
signals, signals are completely overlapped. 


No sync: start of measurement 


After some time (depending on the relative clock drift of the 2 devices), you will see that the signals are                    
not perfectly aligned any more… 


No sync: small offset 

 
