DEWESOFT SIRIUS-SBOXe - Current; Voltage

/
SIRIUS
® 
TECHNICAL REFERENCE MANUAL 



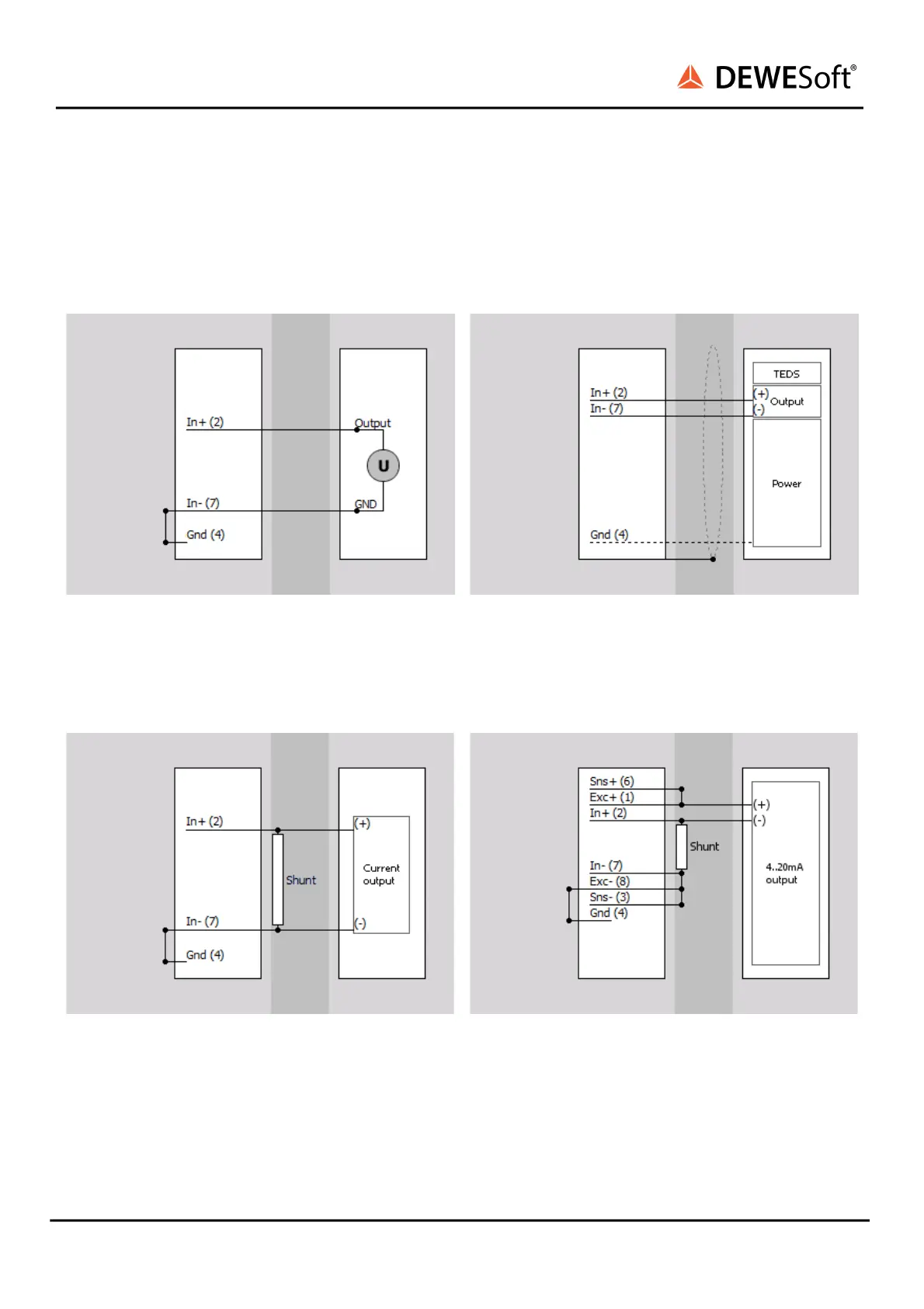

5.11.2.1. LV: Voltage 

Voltage - Single ended 



Voltage – Differential 
Use only when sensor Output (+) and Output (-) 
are referenced to Gnd. Gnd must be connected. 

5.11.2.2. LV: Current 

External direct shunt 


External loop powered shunt 


 
