SIRIUS
®
TECHNICAL REFERENCE MANUAL

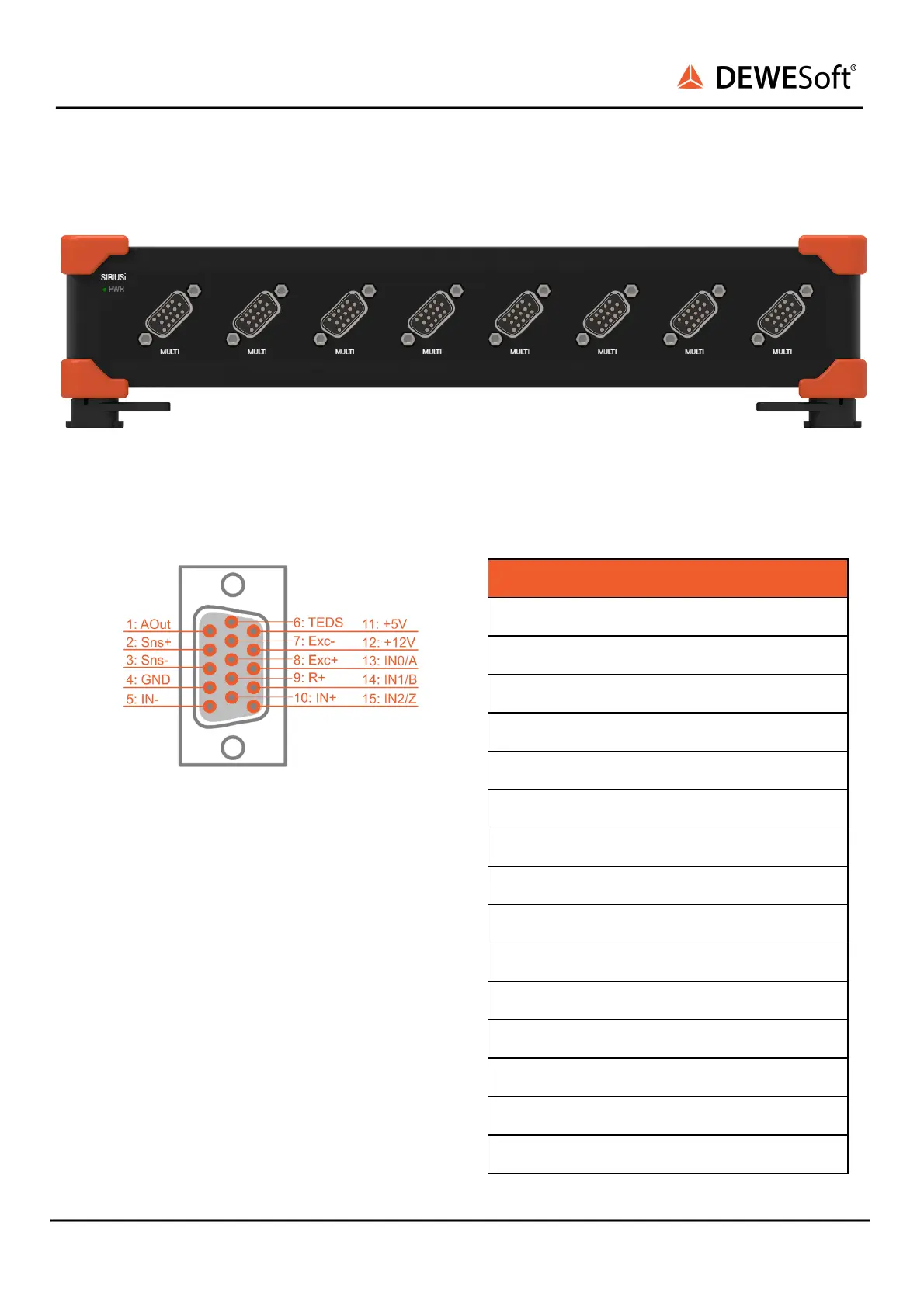

5.12.2. MULTI
SIRIUSi-8xMULTI
MULTI connector: pin-out (DSUB-15)
Pin
Name
Description
1
TEDS
TEDS
2
Exc-
Excitation -
3
Exc +
Excitation +
4
R+
¼ Bridge/Shunt
5
In+
Input +
6
Aout
analog output
7
Sns+
Sense +
8
Sns-
Sense -
9
GND
Ground
10
In-
Input -
11
+5V
+5V supply
12
+12V
+12V supply
13
IN0/A
Counter input IN0/A
14
IN1/B
Counter input IN1/B
15
IN2/Z
Counter input IN2/Z
SIRIUS
®
V20-1 167 / 336
