TECHNICAL REFERENCE MANUAL 



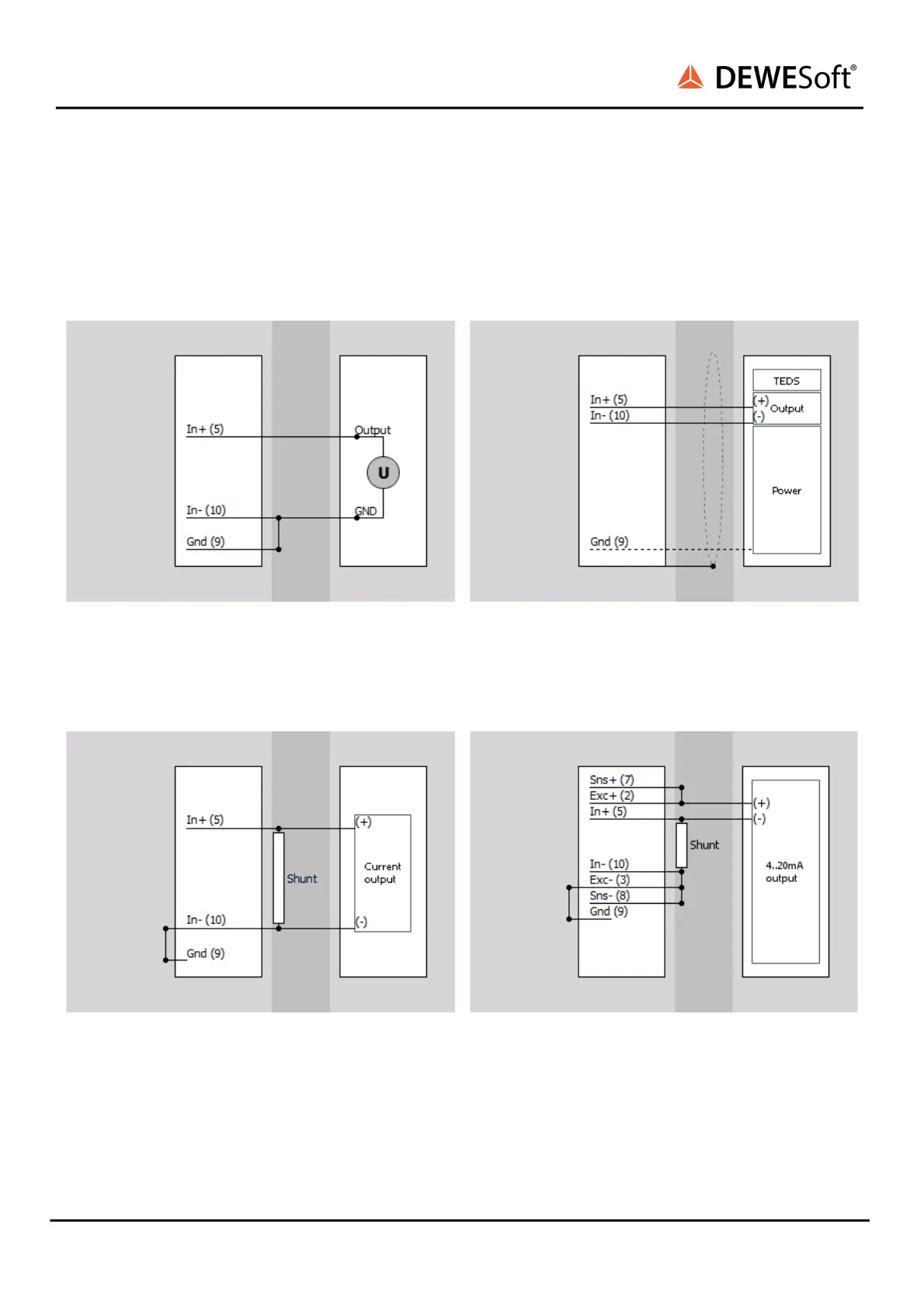

5.12.3.1. MULTI-L2B16f: Voltage 
STGM-L2B16f: Voltage 

Voltage - Single ended 



Voltage – Differential 
Use only when sensor Output (+) and Output (-) 
are referenced to Gnd. Gnd must be connected.

5.12.3.2. MULTI-L2B16f: Current 
STGM-L2B16f: Current 
External direct shunt 


External loop powered shunt 


 
SIRIUS
®
V20-1 172 / 336  
