DEWESOFT SIRIUS-SBOXe - MULTI: Current; MULTI: Voltage

/
SIRIUS
® 
TECHNICAL REFERENCE MANUAL 




Hint 
You can use the analog input, analog output and counters at the same time. 

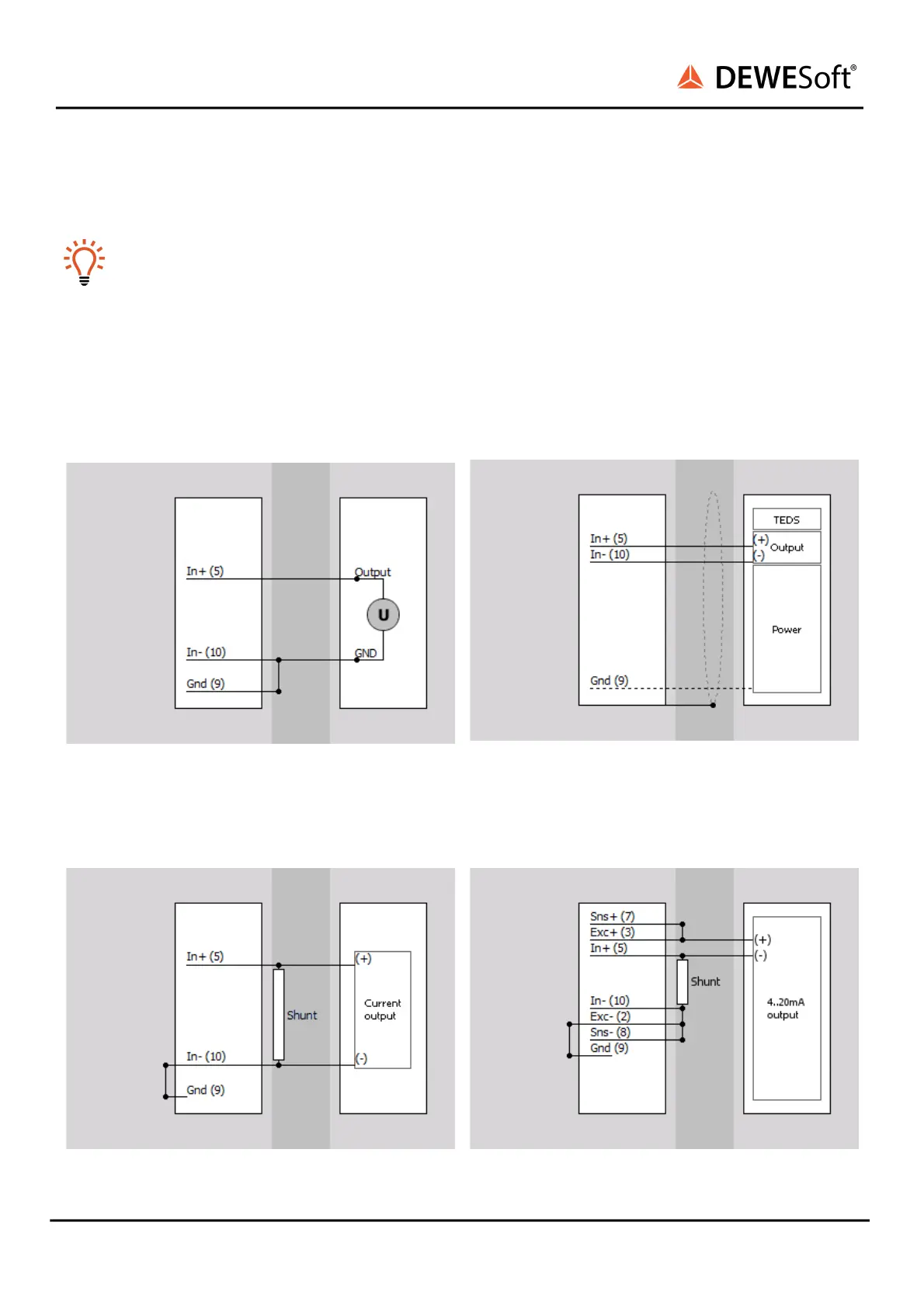

5.12.2.1. MULTI: Voltage 

Voltage - Single ended 


Voltage – Differential 
Use only when sensor Output (+) and Output (-) 
are referenced to Gnd. Gnd must be connected.

5.12.2.2. MULTI: Current 
External direct shunt 


External loop powered shunt 


