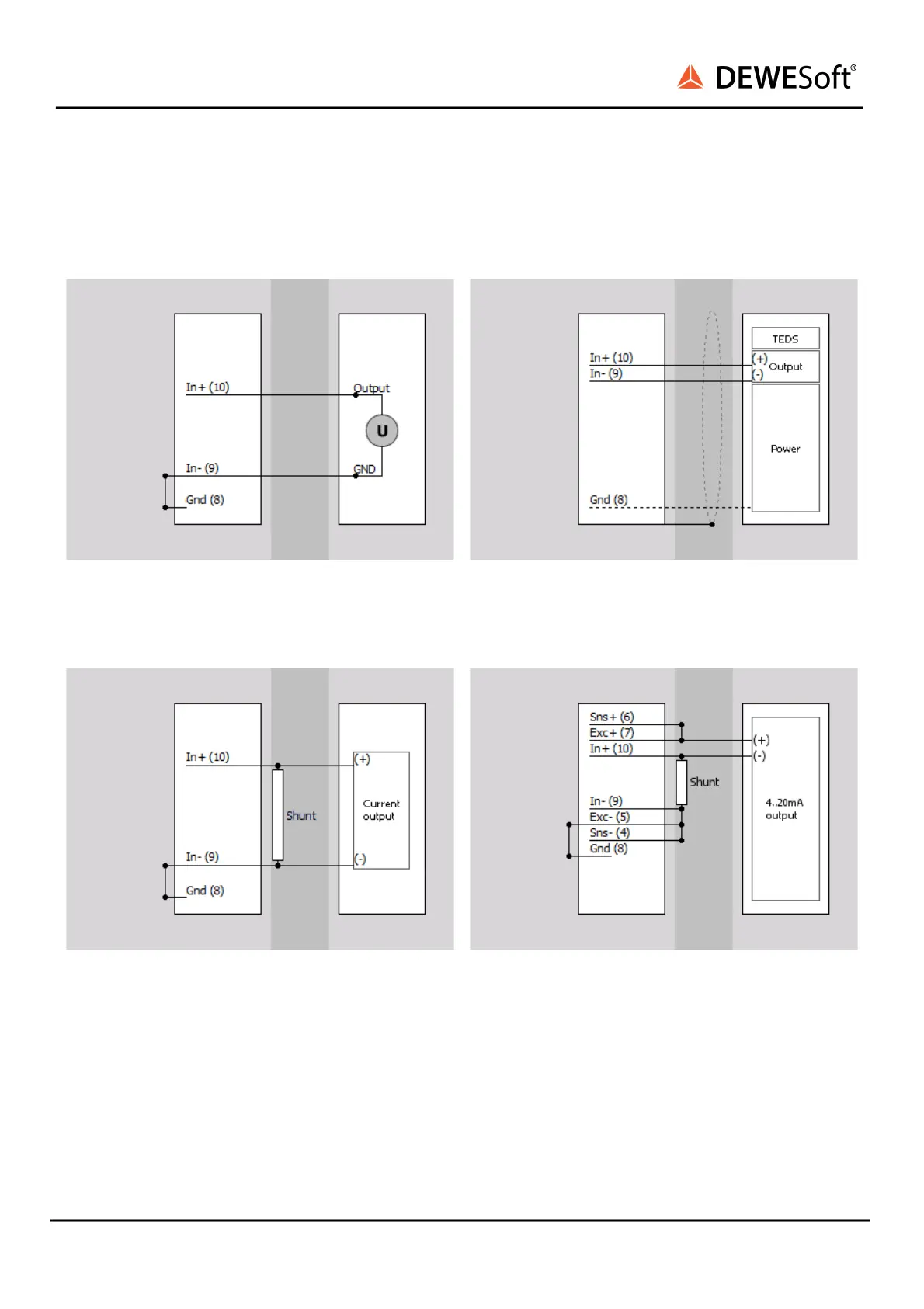

5.14.5.1. STG-L2B10fs: Voltage 
Voltage - Single ended 



Voltage – Differential 
Use only when sensor Output (+) and Output (-) 
are referenced to Gnd. Gnd must be connected.

5.14.5.2. STG-L2B10fs: Current 
External direct shunt 


External loop powered shunt 


