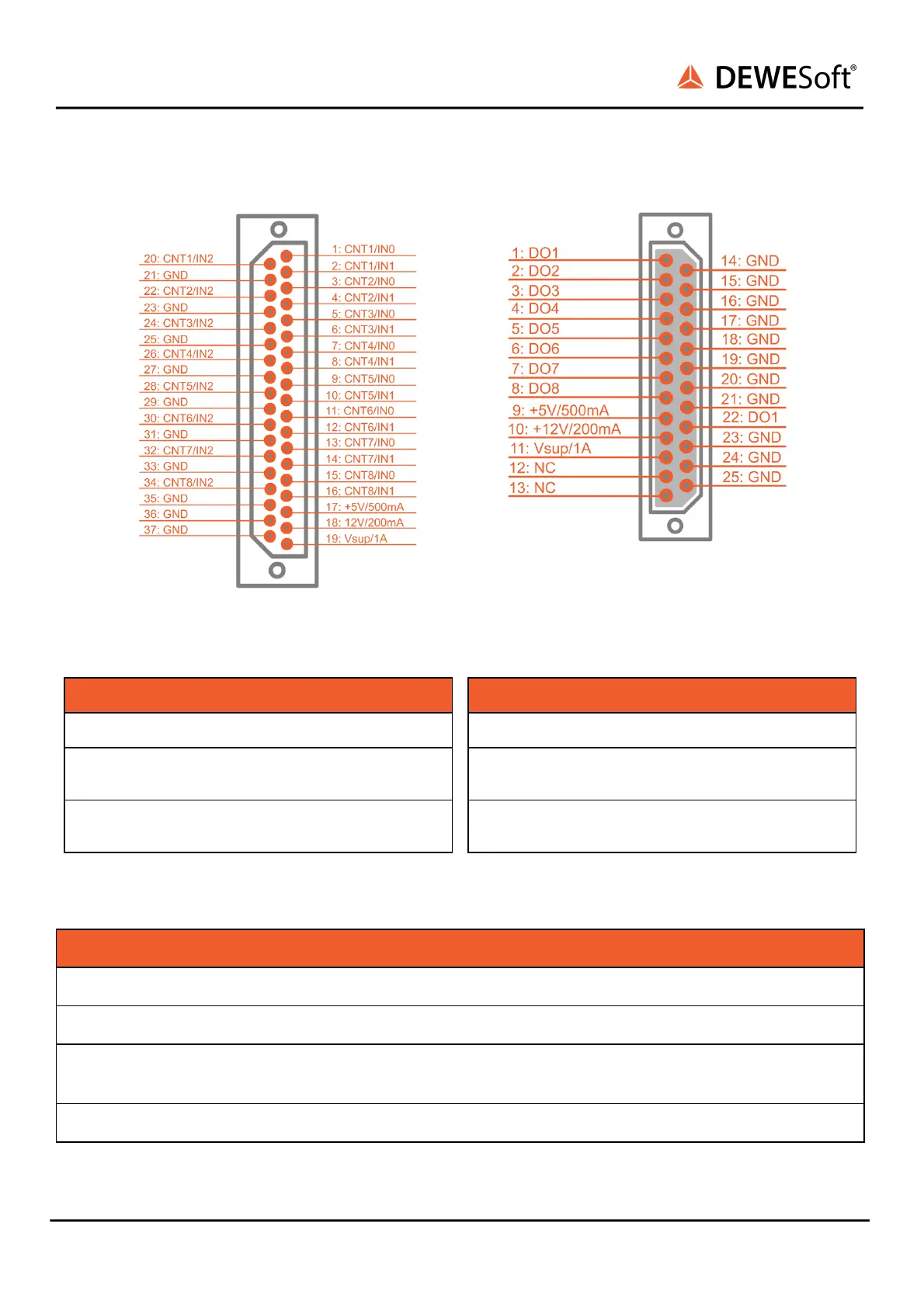

STGM-DB connector: pin-out (DSUB-37 male)
STGM-DB connector: pin-out (DSUB-25 female)
+12 Vdc if Vsup > 15 V
Vsup - 2 Vdc if Vsup < 15 V
SIRIUS input DC
supply voltage
+12 Vdc if Vsup > 15 V
Vsup - 2 Vdc if Vsup < 15 V
SIRIUS input DC
supply voltage
8 counter / 24 digital inputs fully synchronised with analog
counting, waveform timing, encoder, tacho, gear-tooth sensor
High side switch to supply voltage with internal 3.9 kΩ pull
down, max. 150 mA, short circuit protected.
DSUB-37 male, DSUB-25 female
