SIRIUS
®
TECHNICAL REFERENCE MANUAL
USB / Sync / Power / GND are all internally wired to the bottom slice. The bottom slice does of course
also have a CAN connector, plus all the other connectors of a Single Slice USB.
Hint
Only one USB cable is required to connect all 4 slices with your PC.

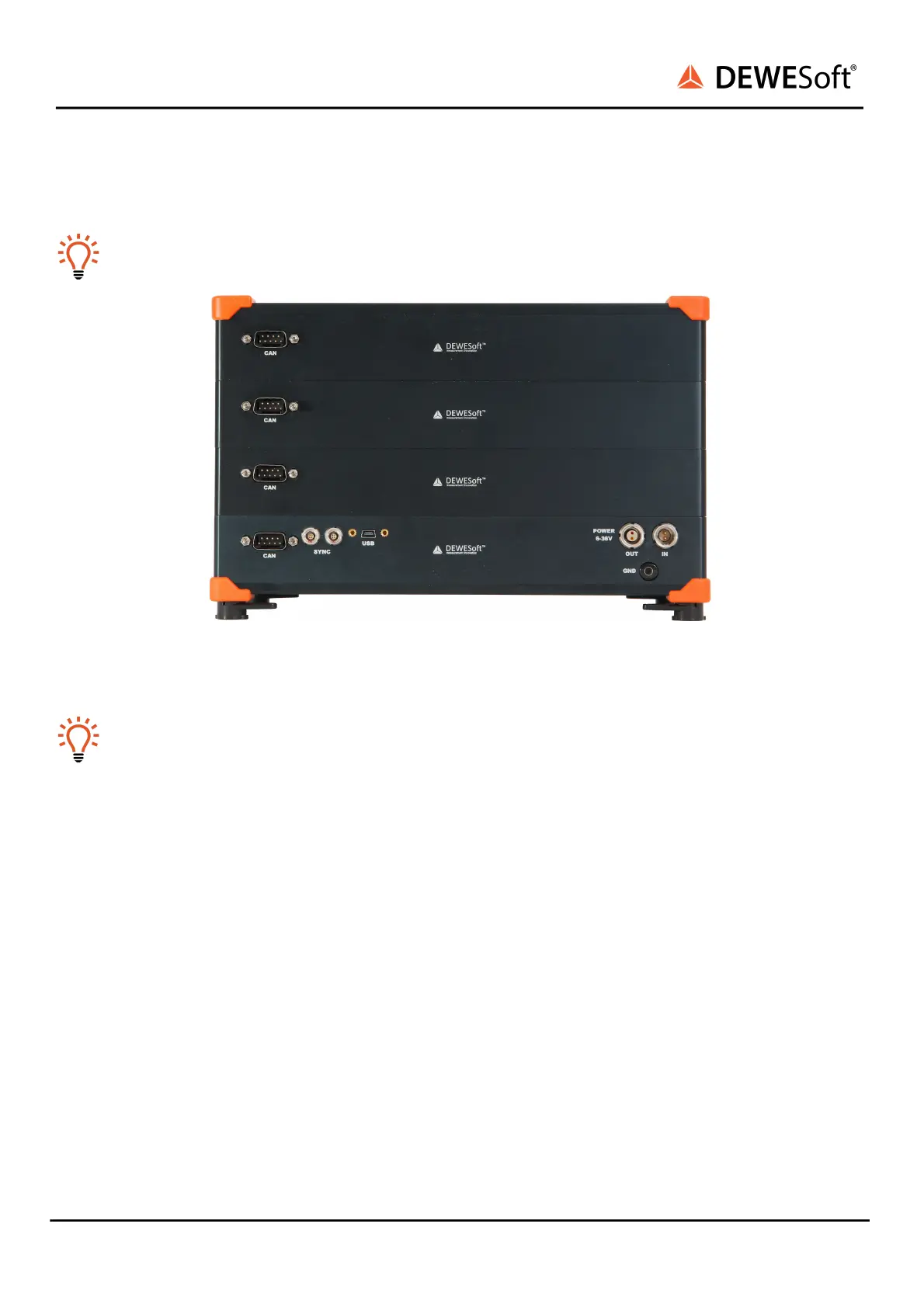

The rear side of a Boxed solution with 4 slices
Hint
You can use the click mechanism to attach other items to the Boxed Solution.
SIRIUS
®
V20-1 37 / 336
