MCQ-PRO RFID Reader — Installation and Tuning Manual Version 1.00
Page 18 of 89

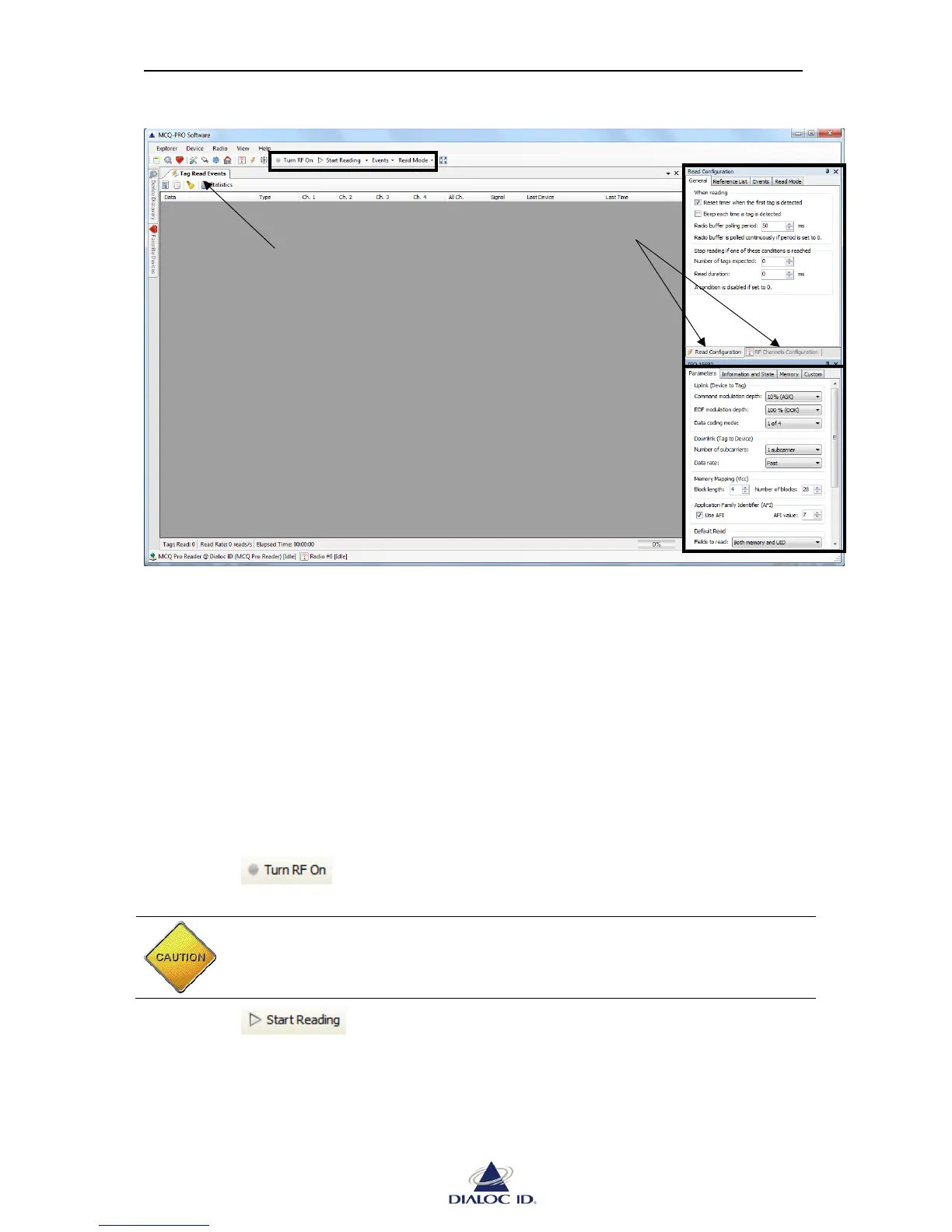

Figure 9: DIALOC ID MCQ-Pro workspace configured
3.2 Examples of Read/Write Operations
This following sections show two examples of read/write operations.
For each of them, make sure you have configured your device using DIALOC ID MCQ-Pro
wizard as explained in section 3.1.
3.2.1 Reading UID of ISO 15693 Tags
This section shows how to read asynchronously the UID of ISO 15693 tags (see section 8 for
more information about asynchronous read)
To start reading operation with current wizard configuration:
1. Click button in the toolbar.
CAUTION: Make sure an antenna is connected to the channel in use before
turning the radio field on; otherwise it may severely damage the device.
