9.4 ISO 15693
Open “ISO 15693” panel by choosing “ISO 15693” in the “Radio > Tag Parameters and
Commands” menu.
9.4.1 Parameters Tab

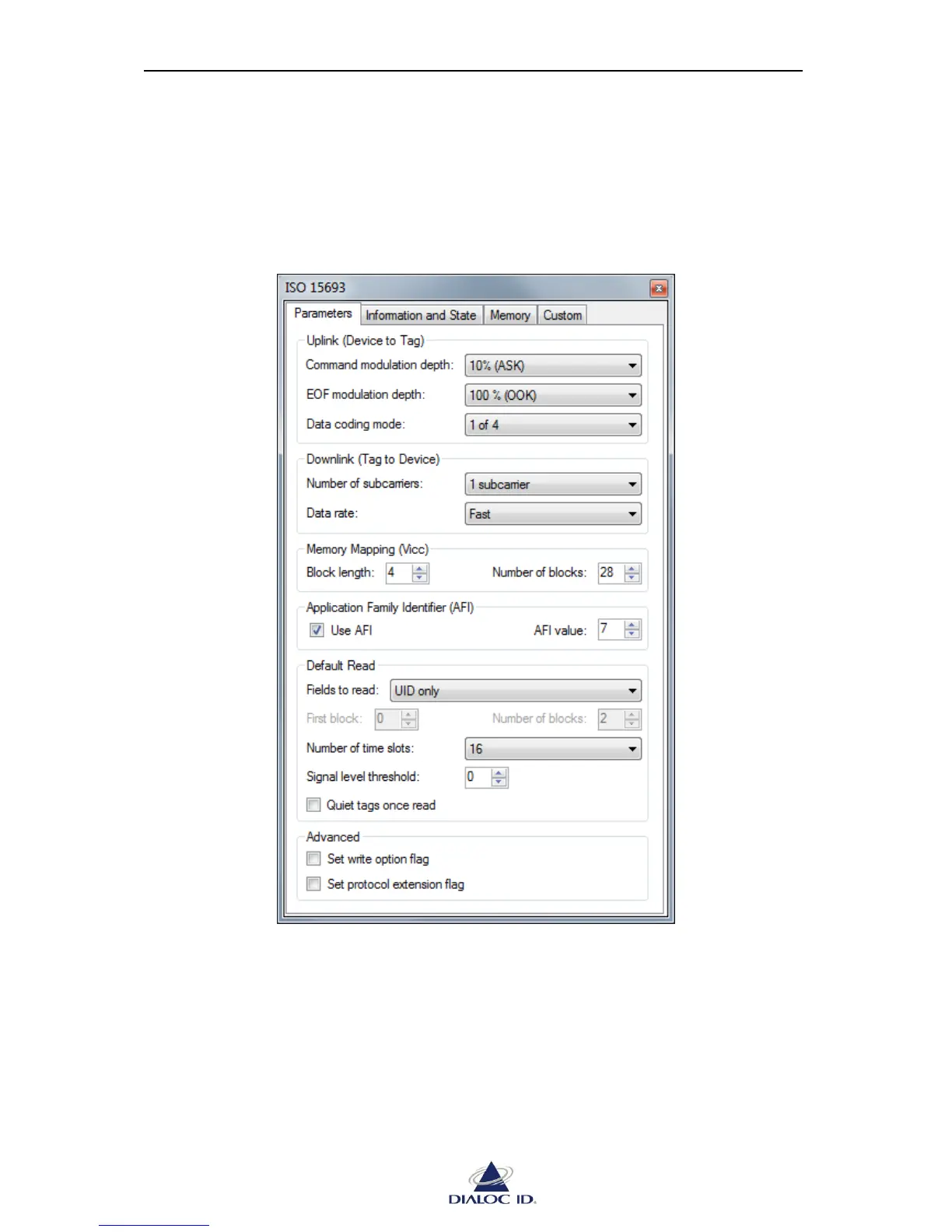

Figure 52: ISO 15693 panel (Parameters tab)
Uplink (Device to Tag)
Device communicates with tags using ASK (Amplitude Shift Keying) or OOK (On/Off
Keying). You can choose the modulation depth in “Command modulation depth” and “EOF
(End Of Frame) modulation depth” lists.
ISO 15693 tags can encode data in one of two modes as shown in Table 1.
