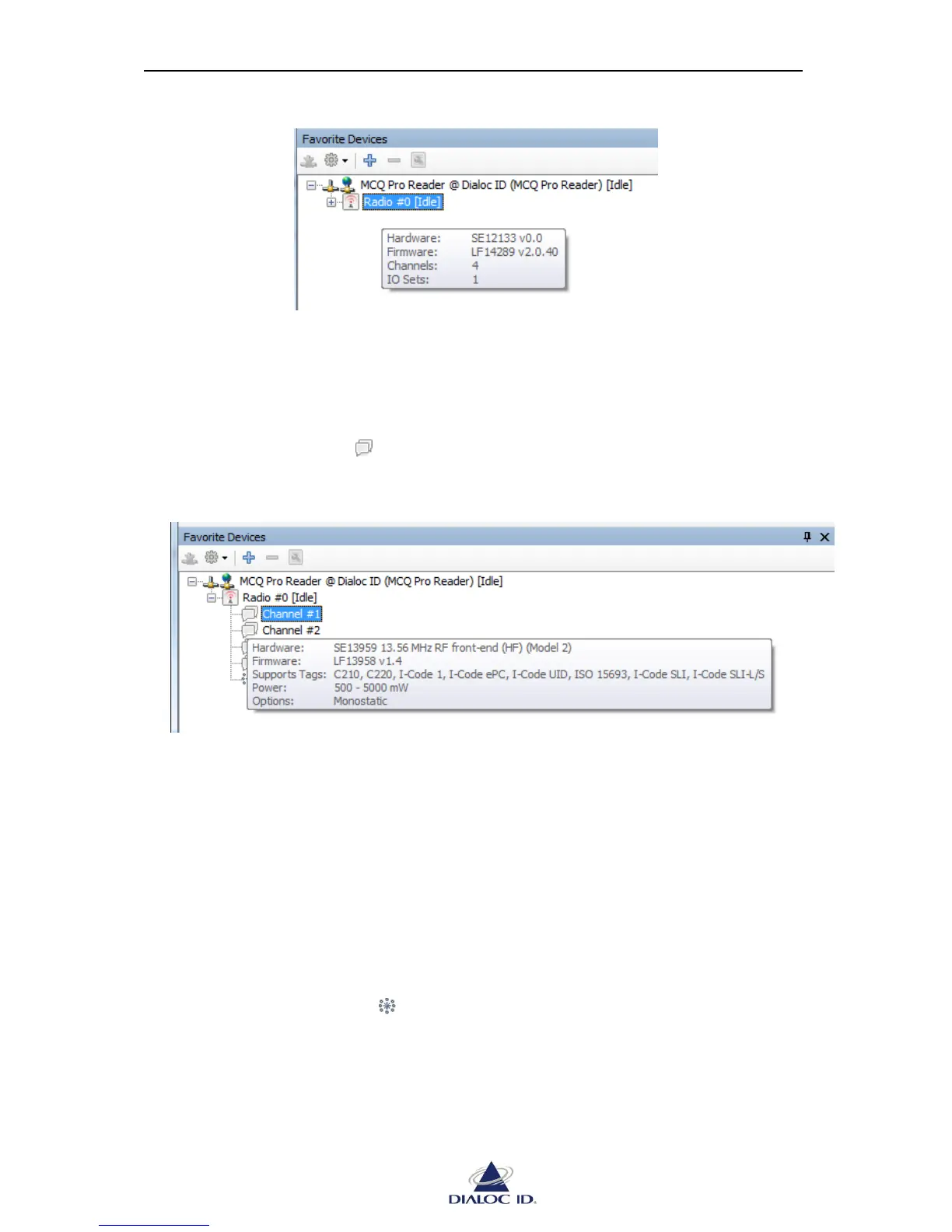

Figure 19: Radio Information
Hardware and Firmware: give hardware and firmware version.
Channels and IO Sets: indicates number of RF channel and IO sets.
Getting Channel Information
You can point a channel icon to get information about it.
Figure 20: Information about a channel
Hardware and Firmware: gives hardware and firmware version.
Supports Tags: indicates tags supported by the channel.
Power: indicates minimum and maximum power supported by the channel.
Options: indicates special characteristics of the channel such as:
Supports +π Phase Shifting indicates the RF field phase can be shifted by +π.
Monostatic indicates that the channel can be configured as an emitter only or
as both an emitter and a receiver.
Getting IO set Information
You can point out an IO set icon to get its information.
