17- ERROR MESSAGES

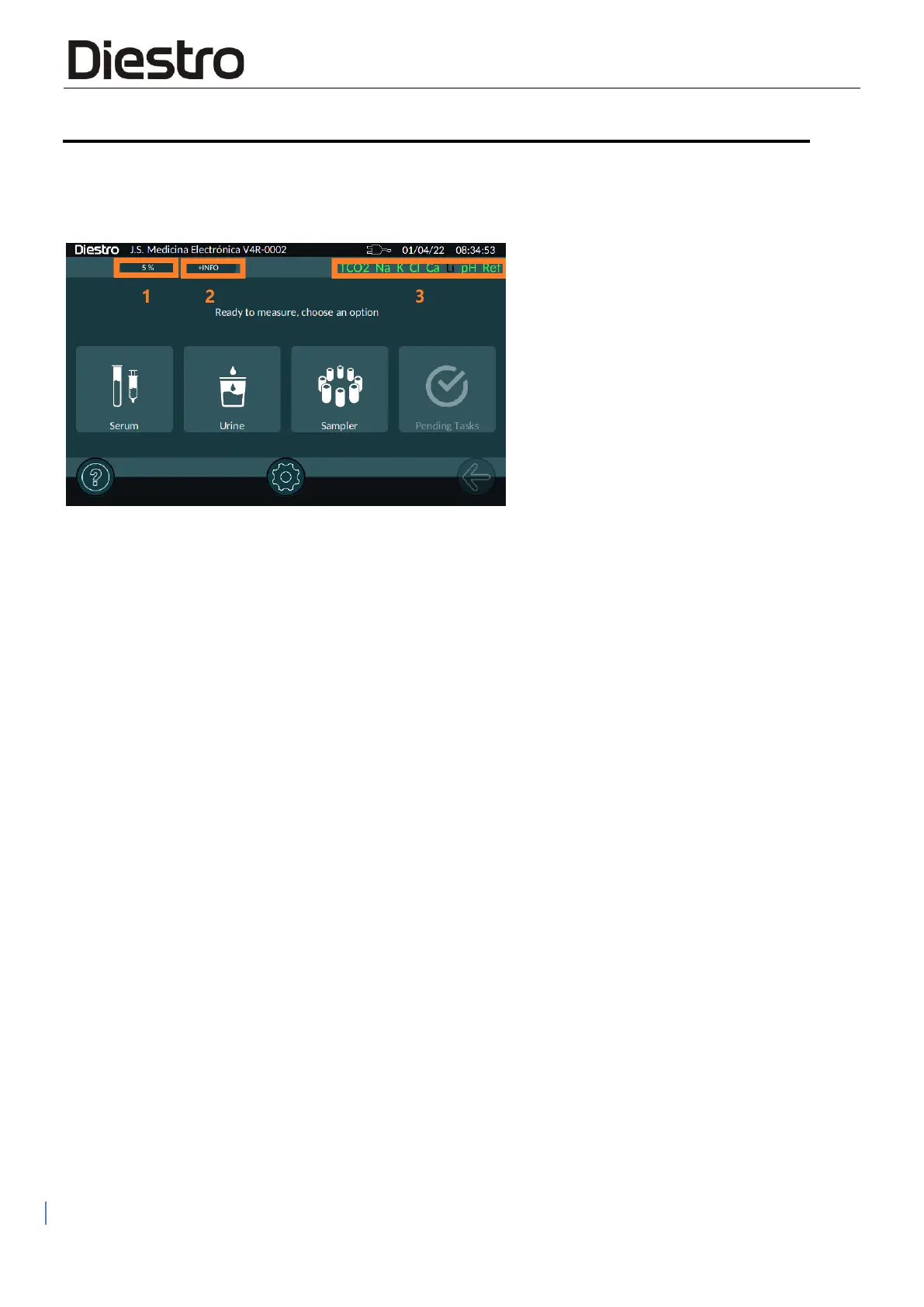

1. ANALYZER STATUS
The operator can quickly view the status of the equipment, from any location:
1) Semaphore
Indicates the overall status of the analyzer. By clicking on the indicator, you can access
more information.
Green: Ready to measure.
Flashing Green: You can measure, with certain considerations. (i.e.: Some electrode is
not calibrated, reagent level is low, etc.)
Red: There are errors, you can't measure it.
2) Reagent Pack Level
Indicates the remainder percentage of the reagent with the lowest content. By clicking on
the indicator, you can access the pack window
3) Electrode Status
By clicking on the status bar of the electrodes, you can access the configuration of the
electrodes.
Black: Present and disabled.
Red: Present, enabled and uncalibrated.
Green: Ready to measure.
