DIESTRO 103APV4R ELECTROLYTE ANALYZER
79 JS Medicina Electrónica
19 - SERVICE
1. OVERVIEW
The Analyzer has a menu for use by the manufacturer or authorized personnel, which allows to
evaluate the operation of the hydraulic circuit and the state of the electrodes

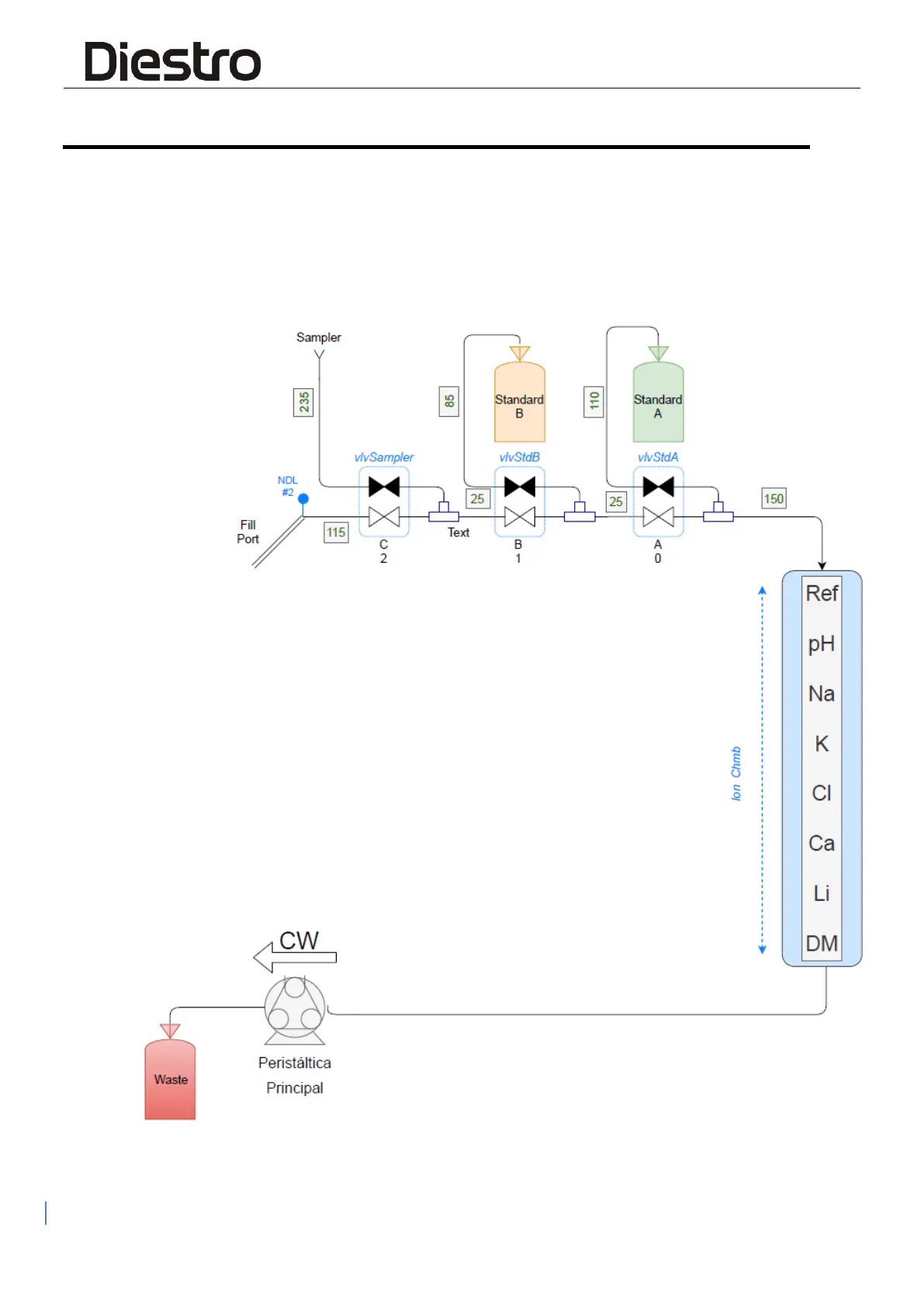

Analyzer hydraulic circuit (without TCO2)
Analyzer connection diagram
