DIESTRO 103APV4R ELECTROLYTE ANALYZER
82 JS Medicina Electrónica

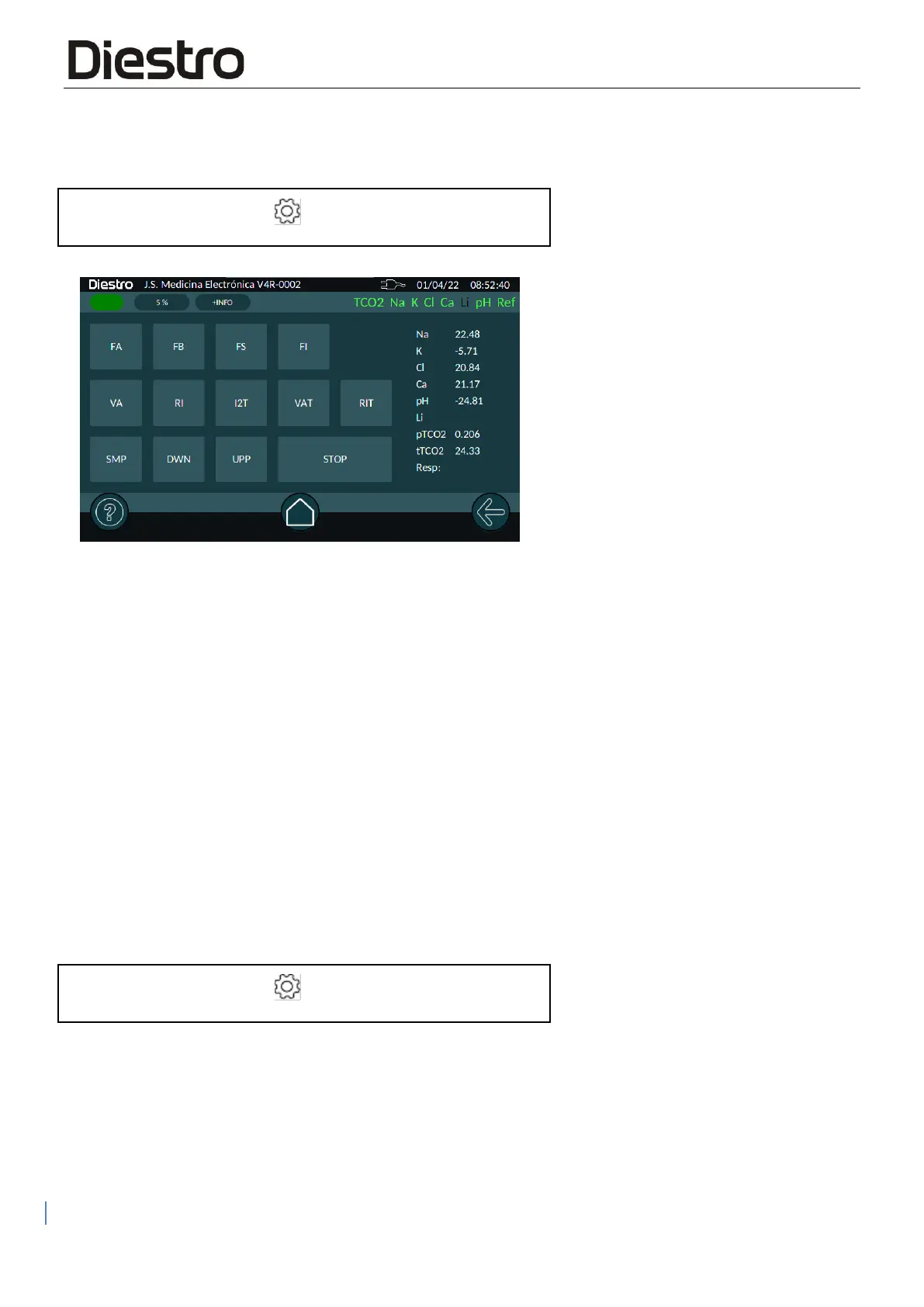

2.2. To access the automatic maintenance menu, navigate to:
Route: "HOME" screen → → Maintenance→ Automatic
Automatic positioning:
- FA: Position StdA on the ION chamber.
- FB: Position StdB on the ION chamber.
- FS: Load Sample from the FillPort (requires fill port out)
- FI: Move loaded sample to the ION chamber.
- VA: Empty ION Camber.
- RI: Normal Rinse
- I2T: Move sample from the electrode chamber to the TCO2 reactor.
- VAT: Empty TCO2 reactor.
- RIT: TCO2 Reactor Rinse
- SMP: Select Sampler Mode
- DWN: Lower the sampler needle until liquid is found
- UPP: Raise the Sampler needle
2.3. To access the sampler maintenance menu, navigate to:
(Only available for sampler analyzers)
Route: "HOME" screen → → Maintenance → Sampler
