DIESTRO 103APV4R ELECTROLYTE ANALYZER
93 JS Medicina Electrónica
Remove this screw

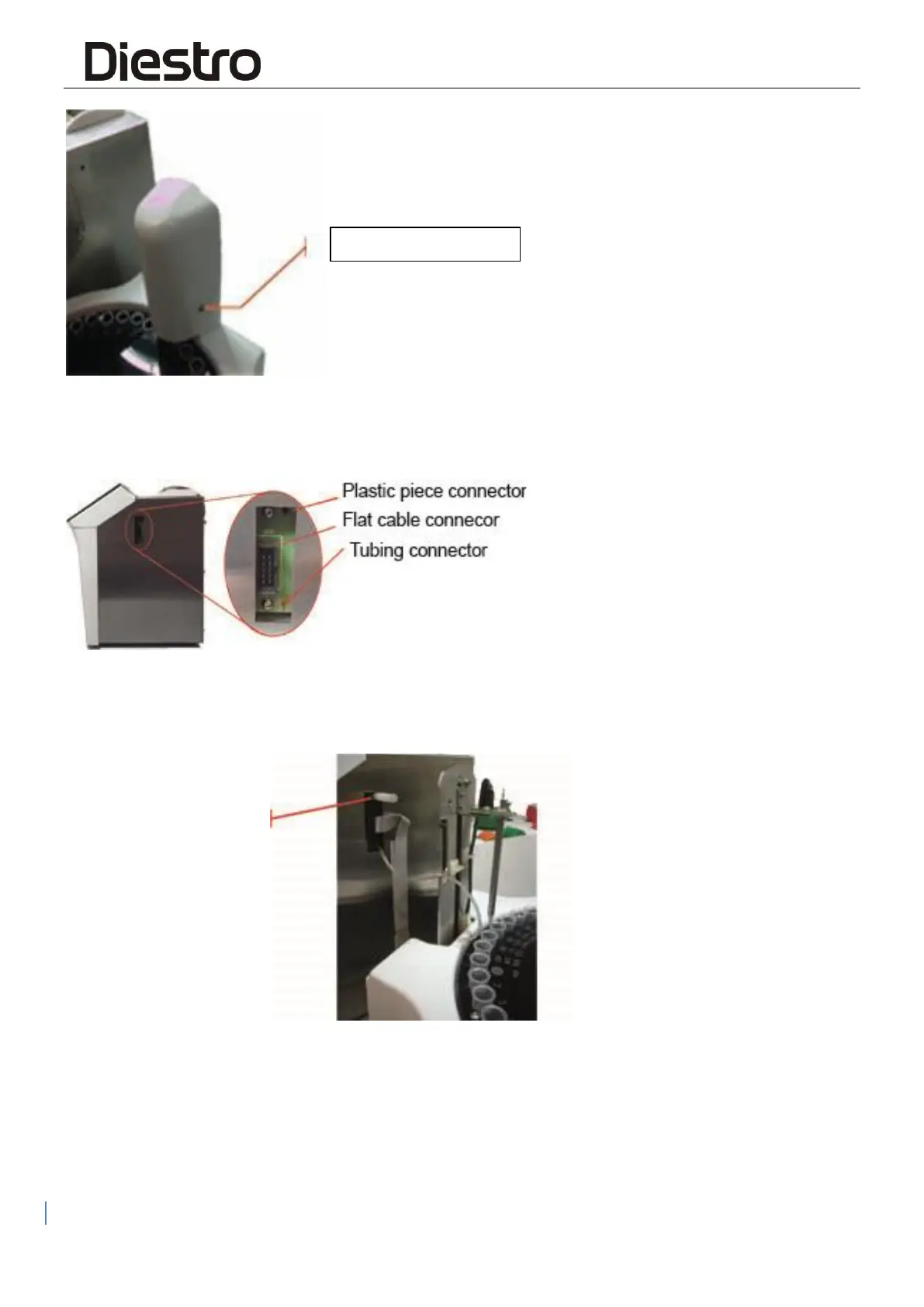

3. Connect the flat cable to the cable connector in the side of the analyzer.
Do the same with the tubing.
4. Stick the flat cable to the analyzer´s cabinet with the provided double sided tape. Screw
the plastic piece to the analyzer´s cabinet.
.
5. Bring the sampler close to the analyzer. Align the plastic piece with the sampler and
screw them together.
Plastic piece
