DIESTRO 103APV4R ELECTROLYTE ANALYZER
96 JS Medicina Electrónica
By pressing this button the sampler performs a scan of all the tubes and if it finds a label with a
valid barcode it uses it to identify the tube in that position. All tubes must contain the same type
of sample, in this case serum or urine as the case of the button pressed.
At the end of the scanning of all the tubes will be positioned again in those that did not have or

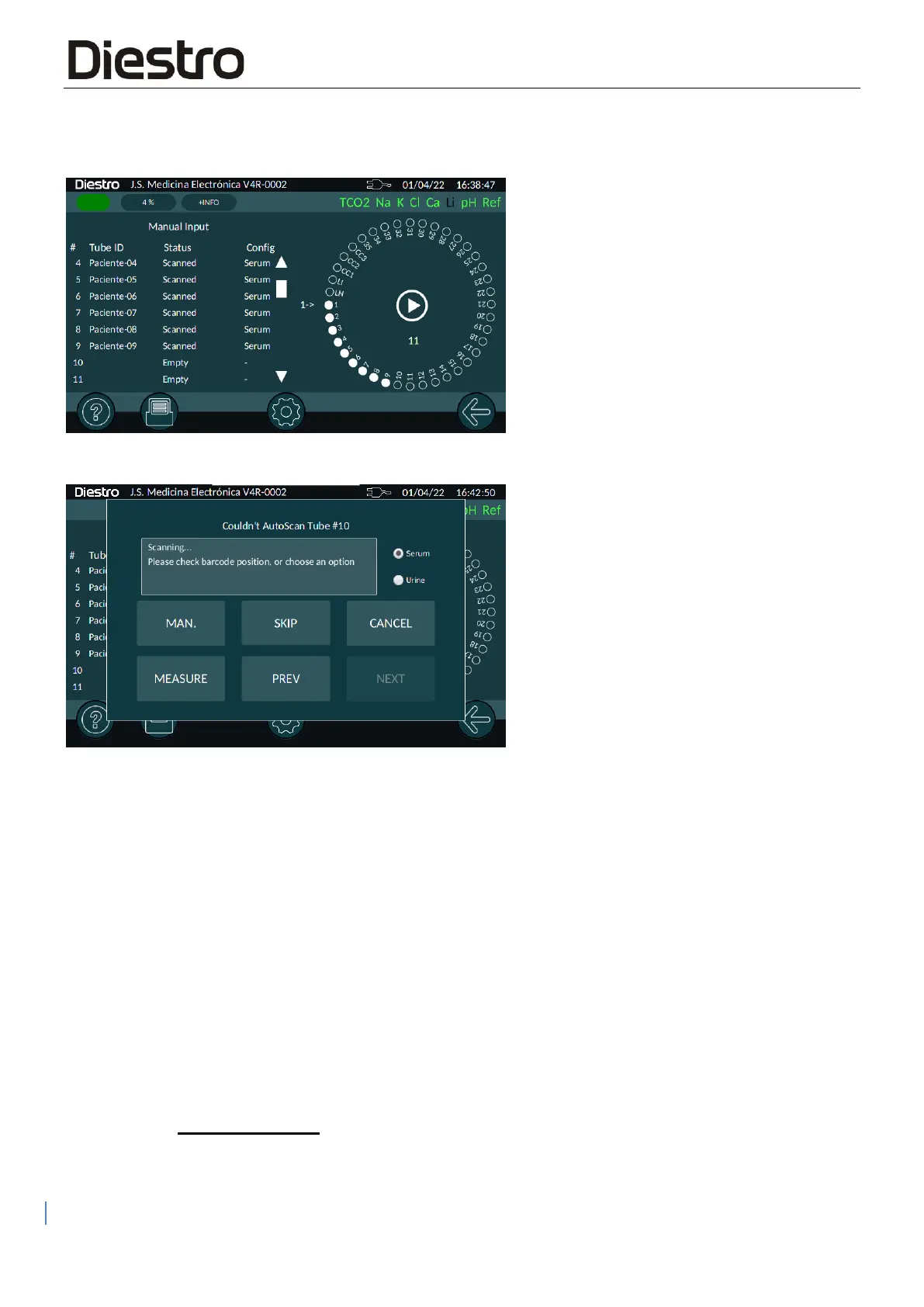

could not read the label, there the following screen will appear with the following options:
MAN. (Manual)
It allows you to enter an ID manually with the on-screen keyboard or an external
keyboard/scanner.
SKIP
Skip that tube.
CANCEL
Aborts the scan.
MEASURE
The measurement of the scanned tubes begins.
c. Manual Loading
In this mode the equipment will be positioned in the manual loading position of tube #1 and the
following screen will appear:
