DIG 710AP Series User Manual

3
3. LCD DISPLAY AND CONTROLS

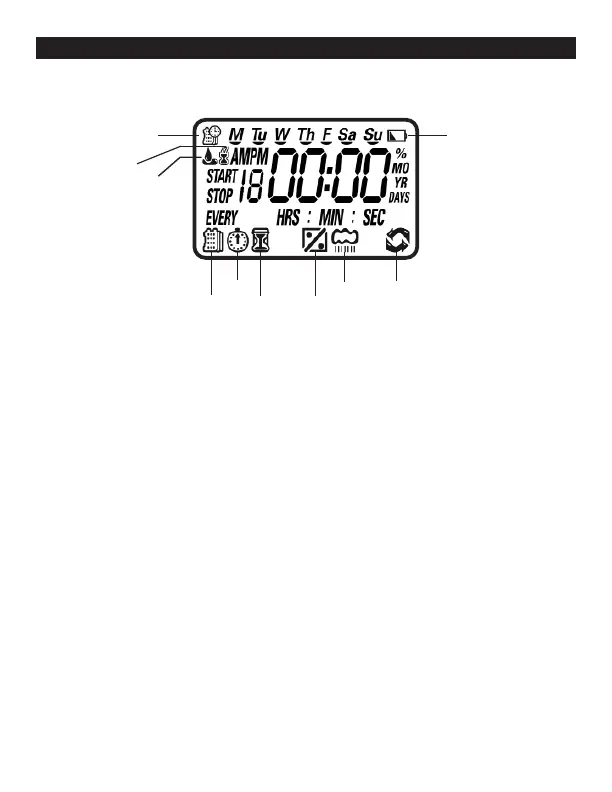

LCD Display
1. Time and Date icon – Indicates current time and day
2. Set Watering Days icon – Indicates the scheduling setting
3. Start Time icon – Indicates the start time setting
4. Run Time icon – Indicates the run time setting
5. Monthly Budget icon – Indicates the monthly budget setting or that monthly
budgeting is active
6. Rain Delay icon – Indicates the rain delay setting or that a rain delay is active
7. Manual Run icon – Indicates the manual run screen or that a valve or program
is being run manually
8. Battery Indicator icon – Flashes when batteries need to be replaced
9. Sensor icon – Indicates that a rain sensor is connected and active
10. Watering icon – Indicates that a valve is open and running
w
r
t
u
i
e
y
q
a
o
