SM500MK4 Service Manual
24
KEY TO PRESS OPERATION
-- Exit to Z mode.
Remarks:

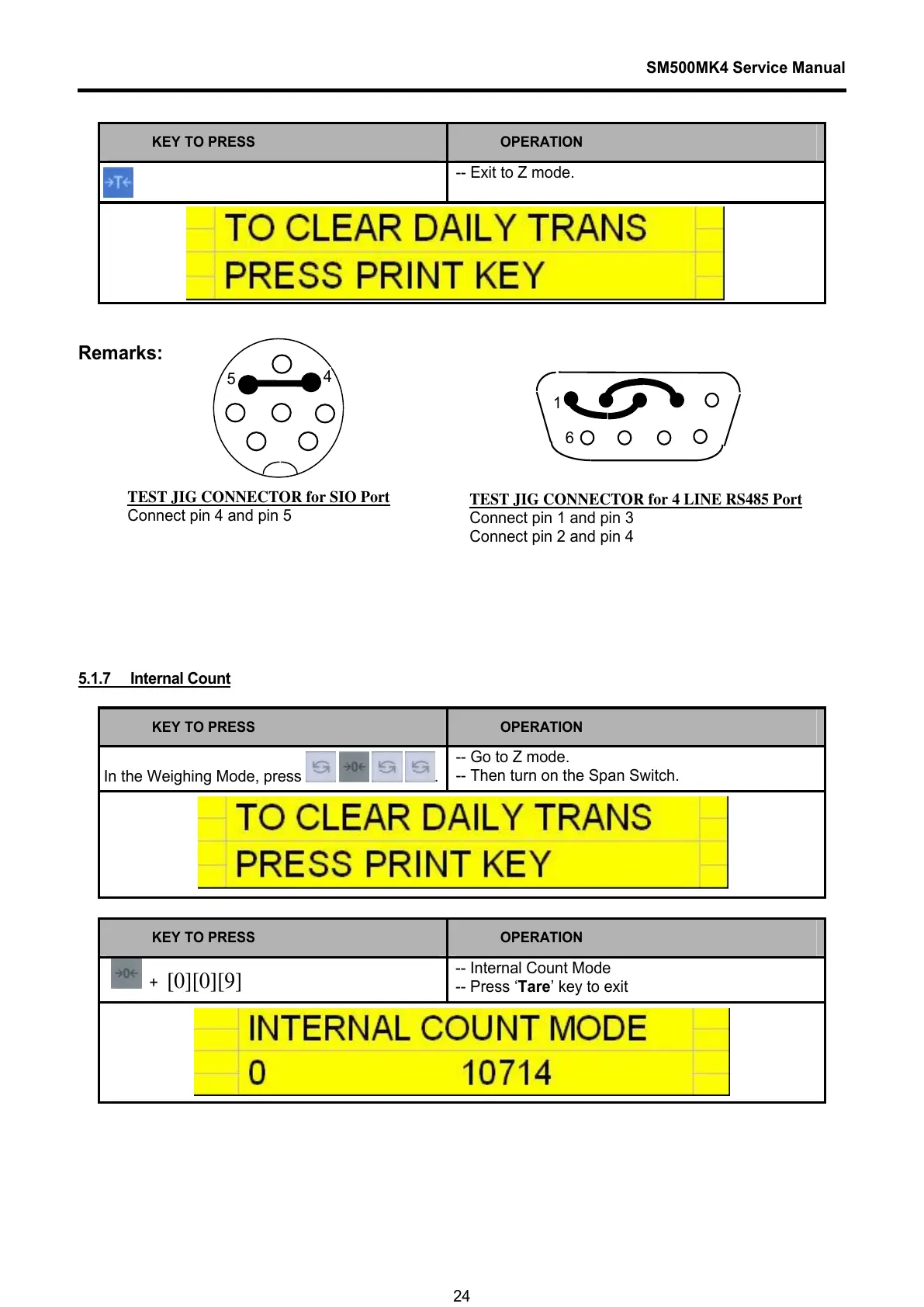

5.1.7 Internal Count
KEY TO PRESS OPERATION
In the Weighing Mode, press .
-- Go to Z mode.
-- Then turn on the Span Switch.
KEY TO PRESS OPERATION
+ [0][0][9]
-- Internal Count Mode
-- Press ‘Tare’ key to exit
5
4
1
6
TEST JIG CONNECTOR for SIO Port
Connect pin 4 and pin 5
TEST JIG CONNECTOR for 4 LINE RS485 Port
Connect pin 1 and pin 3
Connect pin 2 and pin 4
