Digi SM-500MK4 DP - 6.4 Extra Bracket Disassembly for 30 Kg

SM500MK4 Service Manual
38
6.4 Extra Bracket Disassembly for 30Kg

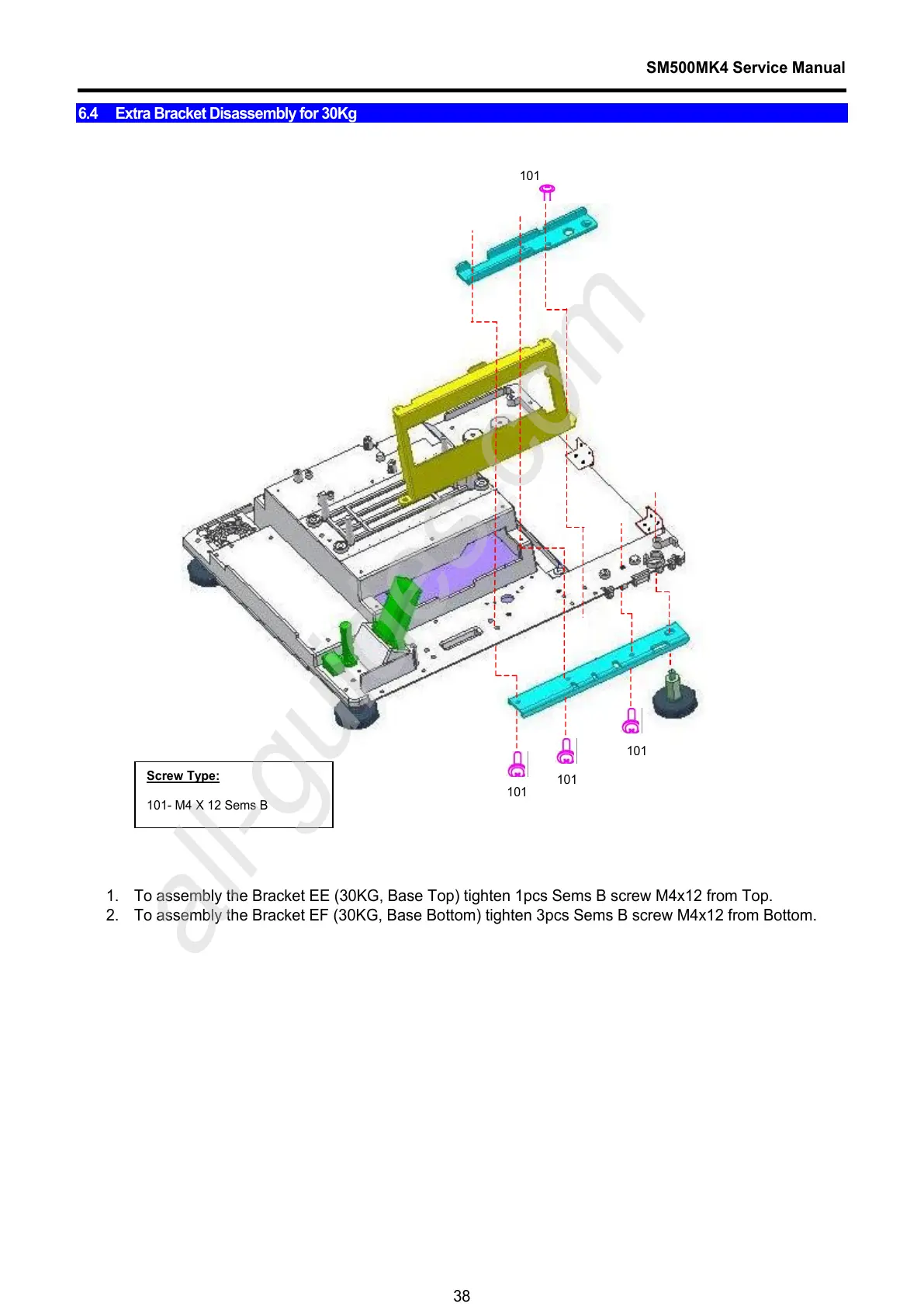

1. To assembly the Bracket EE (30KG, Base Top) tighten 1pcs Sems B screw M4x12 from Top.
2. To assembly the Bracket EF (30KG, Base Bottom) tighten 3pcs Sems B screw M4x12 from Bottom.
101
101
101
101
Screw Type:
101- M4 X 12 Sems B
