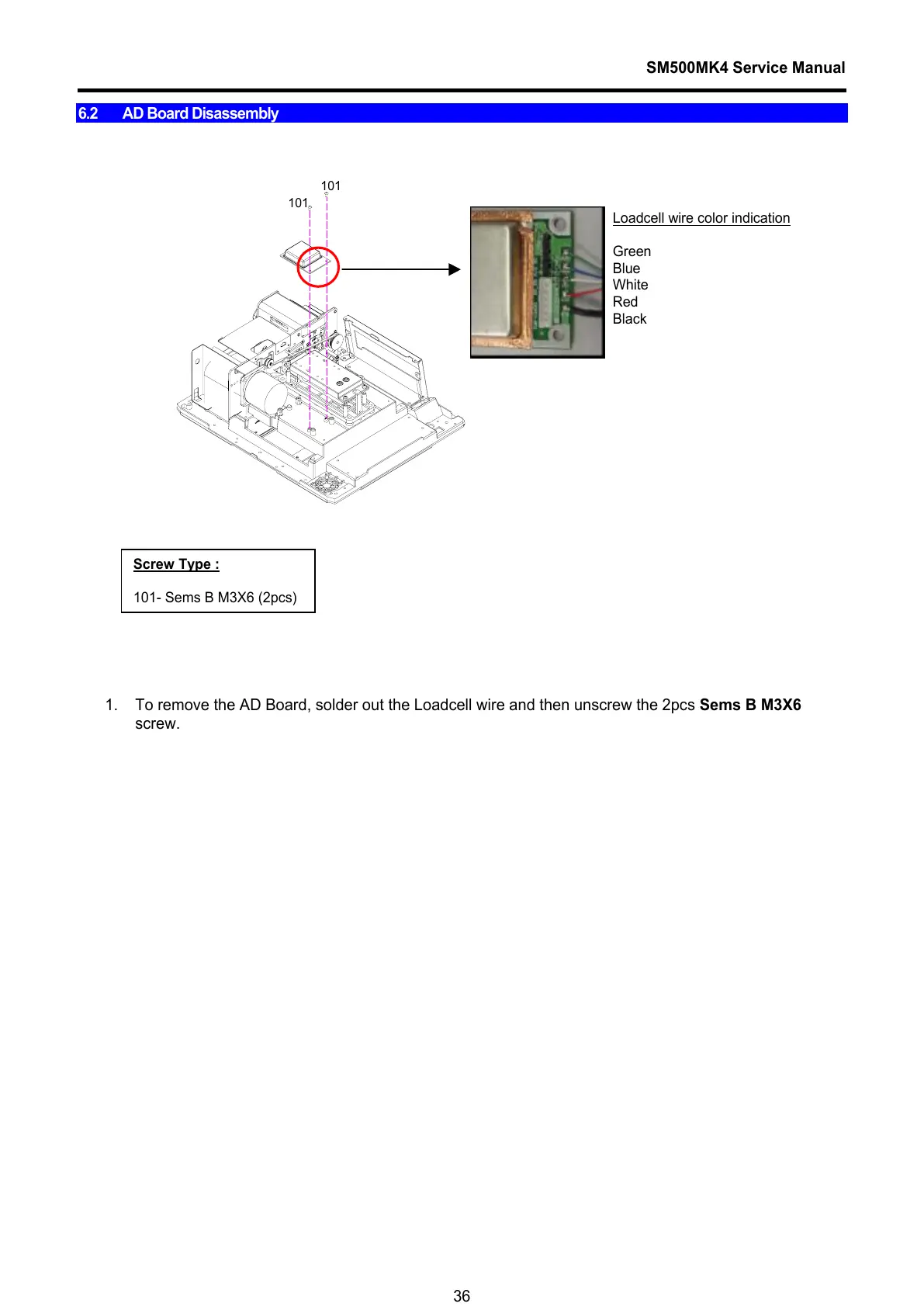

6.2 AD Board Disassembly
1. To remove the AD Board, solder out the Loadcell wire and then unscrew the 2pcs Sems B M3X6
screw.
Screw Type :
101- Sems B M3X6 (2pcs)
101
101
Loadcell wire color indication
Green
Blue
White
Red
Black
