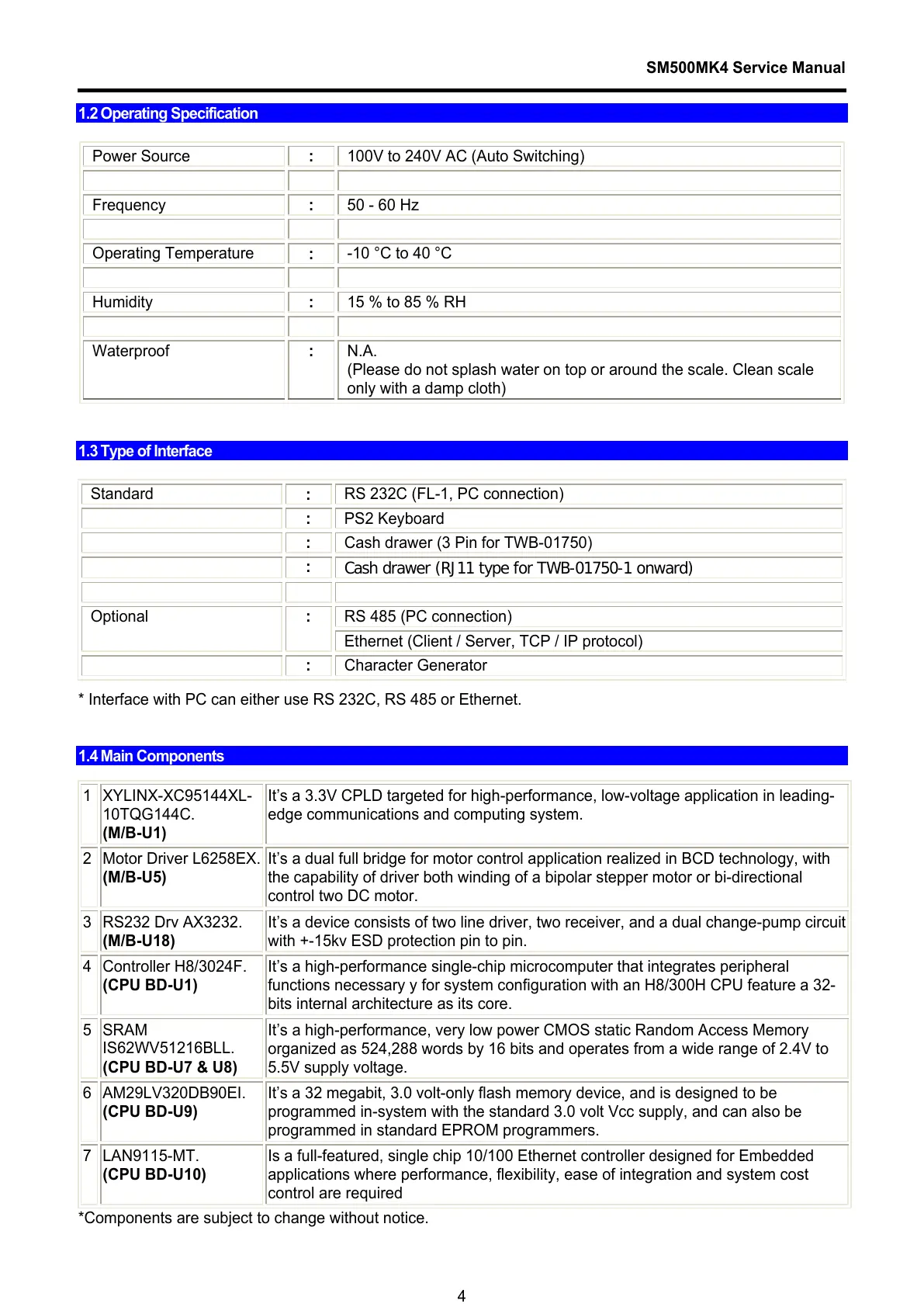

1.2 Operating Specification
Power Source
:
100V to 240V AC (Auto Switching)
Frequency
:
50 - 60 Hz
Operating Temperature
:
-10 °C to 40 °C
Humidity
:
15 % to 85 % RH
Waterproof
:
N.A.
(Please do not splash water on top or around the scale. Clean scale
only with a damp cloth)
1.3 Type of Interface
Standard
:
RS 232C (FL-1, PC connection)
:
PS2 Keyboard
:
Cash drawer (3 Pin for TWB-01750)
:
Cash drawer (RJ11 type for TWB-01750-1 onward)
RS 485 (PC connection) Optional
:
Ethernet (Client / Server, TCP / IP protocol)
:
Character Generator
* Interface with PC can either use RS 232C, RS 485 or Ethernet.
1.4 Main Components
1 XYLINX-XC95144XL-
10TQG144C.
(M/B-U1)
It’s a 3.3V CPLD targeted for high-performance, low-voltage application in leading-
edge communications and computing system.
2 Motor Driver L6258EX.
(M/B-U5)
It’s a dual full bridge for motor control application realized in BCD technology, with
the capability of driver both winding of a bipolar stepper motor or bi-directional
control two DC motor.
3 RS232 Drv AX3232.
(M/B-U18)
It’s a device consists of two line driver, two receiver, and a dual change-pump circuit
with +-15kv ESD protection pin to pin.
4 Controller H8/3024F.
(CPU BD-U1)
It’s a high-performance single-chip microcomputer that integrates peripheral
functions necessary y for system configuration with an H8/300H CPU feature a 32-
bits internal architecture as its core.
5 SRAM
IS62WV51216BLL.
(CPU BD-U7 & U8)
It’s a high-performance, very low power CMOS static Random Access Memory
organized as 524,288 words by 16 bits and operates from a wide range of 2.4V to
5.5V supply voltage.
6 AM29LV320DB90EI.
(CPU BD-U9)
It’s a 32 megabit, 3.0 volt-only flash memory device, and is designed to be
programmed in-system with the standard 3.0 volt Vcc supply, and can also be
programmed in standard EPROM programmers.
7 LAN9115-MT.
(CPU BD-U10)
Is a full-featured, single chip 10/100 Ethernet controller designed for Embedded
applications where performance, flexibility, ease of integration and system cost
control are required
*Components are subject to change without notice.
