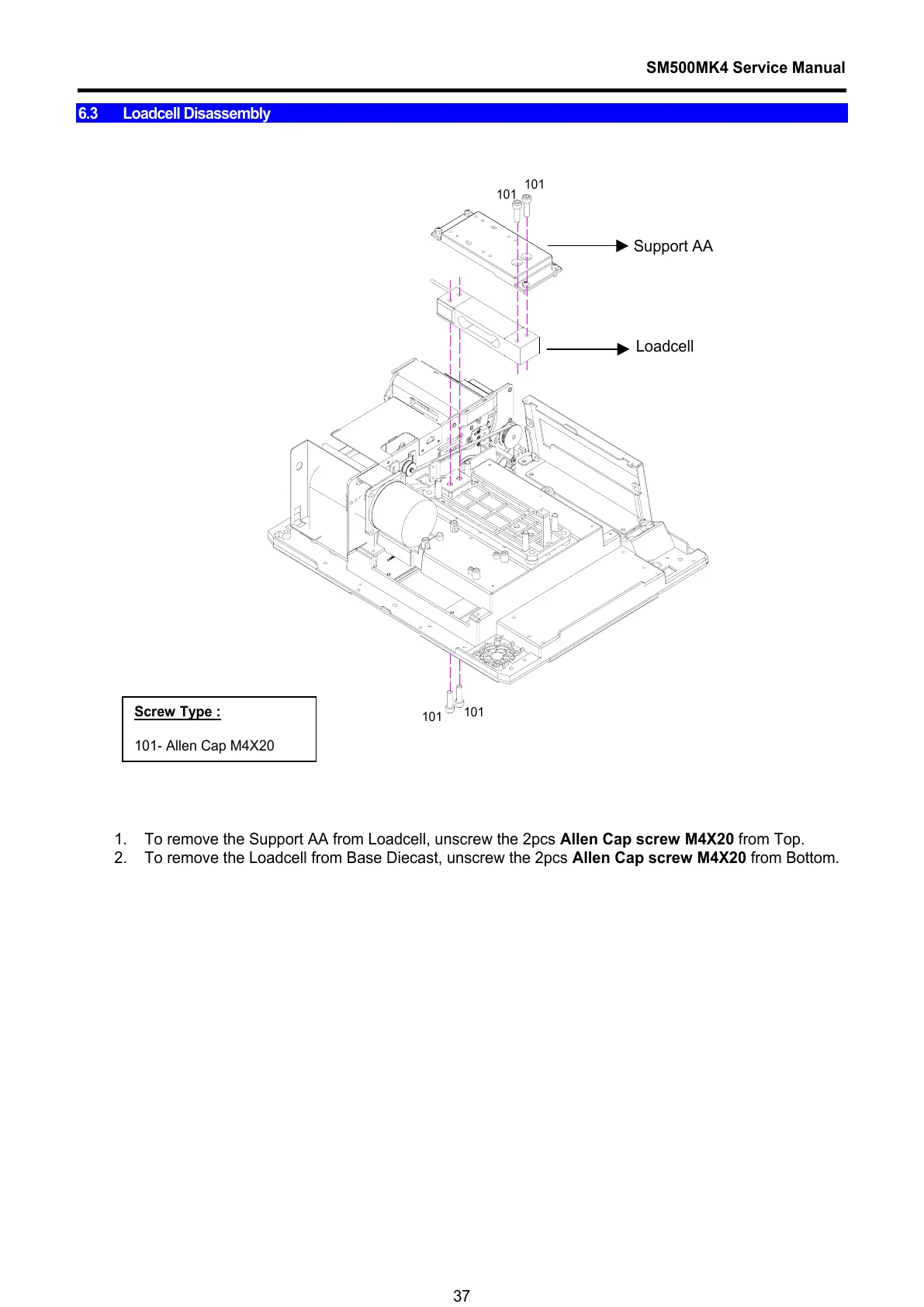

6.3 Loadcell Disassembly
1. To remove the Support AA from Loadcell, unscrew the 2pcs Allen Cap screw M4X20 from Top.
2. To remove the Loadcell from Base Diecast, unscrew the 2pcs Allen Cap screw M4X20 from Bottom.
Screw Type :
101- Allen Cap M4X20
101
101
101
101
Support AA
Loadcell
