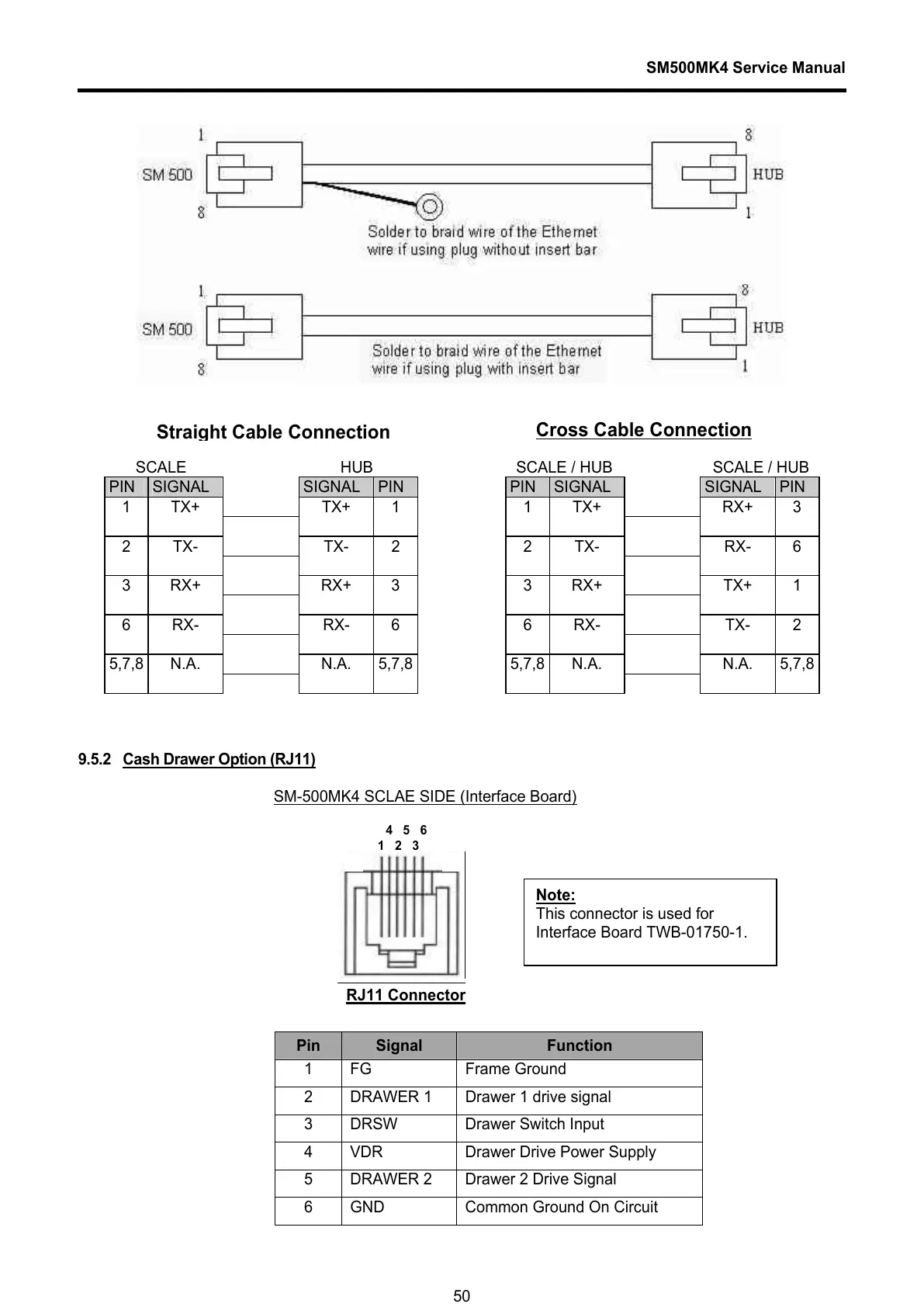

SM500MK4 Service Manual

SCALE HUB SCALE / HUB SCALE / HUB

PIN SIGNAL SIGNAL PIN PIN SIGNAL SIGNAL PIN

1 TX+

TX+ 1 1 TX+

RX+ 3

2 TX-

TX- 2 2 TX-

RX- 6

3 RX+

RX+ 3 3 RX+

TX+ 1

6 RX-

RX- 6 6 RX-

TX- 2

5,7,8 N.A.

N.A. 5,7,8 5,7,8 N.A.

N.A. 5,7,8

9.5.2 Cash Drawer Option (RJ11)

SM-500MK4 SCLAE SIDE (Interface Board)

Pin Signal Function

1 FG Frame Ground

2 DRAWER 1 Drawer 1 drive signal

3 DRSW Drawer Switch Input

4 VDR Drawer Drive Power Supply

5 DRAWER 2 Drawer 2 Drive Signal

6 GND Common Ground On Circuit

Strai

ht Cable Connection

Cross Cable Connection

1 2 3

4 5 6

Note:

This connector is used for

Interface Board TWB-01750-1.

RJ11 Connector
