SM500MK4 Service Manual
10

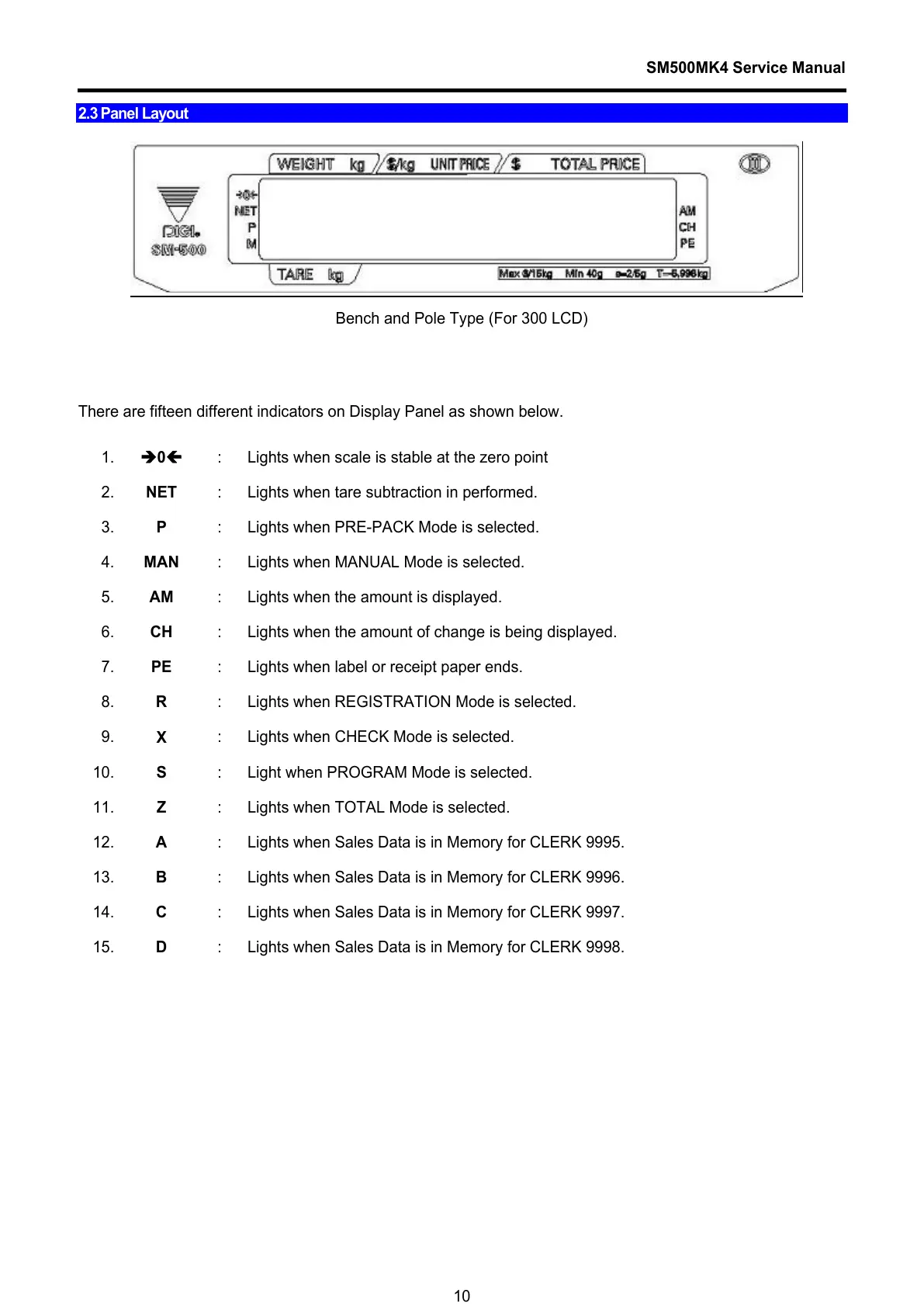

2.3 Panel Layout
Bench and Pole Type (For 300 LCD)
There are fifteen different indicators on Display Panel as shown below.
1.
Î0Í
: Lights when scale is stable at the zero point
2.
NET
: Lights when tare subtraction in performed.
3.
P
: Lights when PRE-PACK Mode is selected.
4.
MAN
: Lights when MANUAL Mode is selected.
5.
AM
: Lights when the amount is displayed.
6.
CH
: Lights when the amount of change is being displayed.
7.
PE
: Lights when label or receipt paper ends.
8.
R
: Lights when REGISTRATION Mode is selected.
9.
X
: Lights when CHECK Mode is selected.
10.
S
: Light when PROGRAM Mode is selected.
11.
Z
: Lights when TOTAL Mode is selected.
12.
A
: Lights when Sales Data is in Memory for CLERK 9995.
13.
B
: Lights when Sales Data is in Memory for CLERK 9996.
14.
C
: Lights when Sales Data is in Memory for CLERK 9997.
15.
D
: Lights when Sales Data is in Memory for CLERK 9998.
