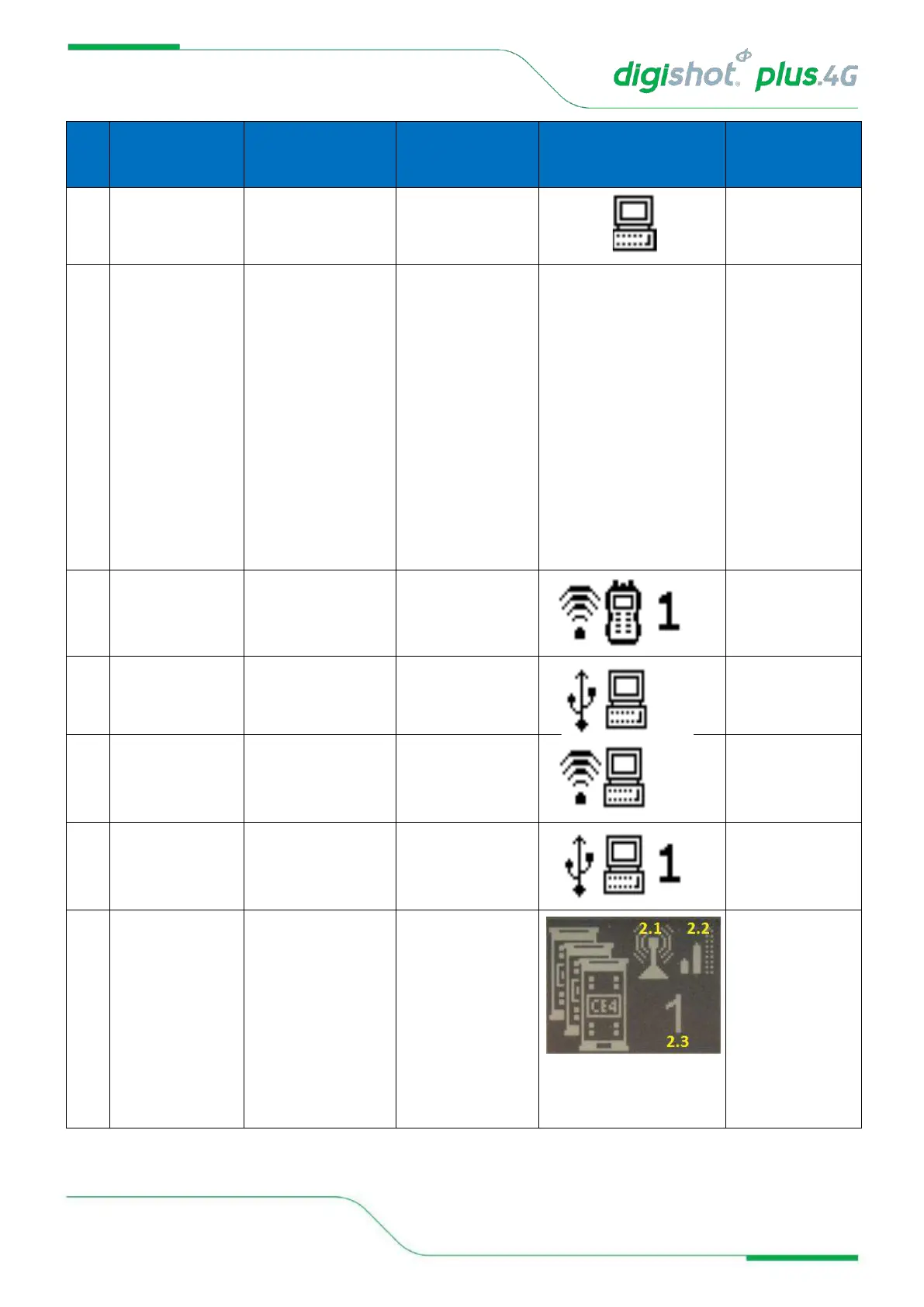

Ite
m #
Description
Detail
Indication
Icon
Options /
Variants /
Description
Connected to PC
1.3
CE4 Tagger ID to
which the
Commander is
connected to
Indicates the CE4
Tagger ID to which the
Commander is
connected.
CE4 Tagger
connections to
Commander is always
via Wi-Fi.
Whenever a non-zero
value is indicated that
value represents an
active Wi-Fi connection
to the relevant CE4
Tagger.
CE4 Tagger ID
connected to
1…10
1.4
Possible connection
combinations
Wi-Fi and USB
connections, and
combinations thereof.
CE4 Tagger ID 1
connected via Wi-Fi
PC connected via
USB
PC connected via Wi-
Fi
PC connected via
USB AND CE4 Tagger
ID 1 connected via Wi-
Fi
2
RF connectivity
indication area
Indicates whether the
RF module on this Base
is active
Indicates whether Base
Commander is
connected to one or
more Benches via RF
Indicates the signal
quality of the RF
connection
Connected to Bench
(In this case depicted,
connected to 1 Bench
– Refer to section 2.3
below)
