DigiShot plus.4G - Page 167

UTM-00339 | Rev 19
Page 167 of 253
DetNet South Africa Copyright © 2021
Item
#
Description
Detail
Indication
Icon
Options / Variants /
Description
8

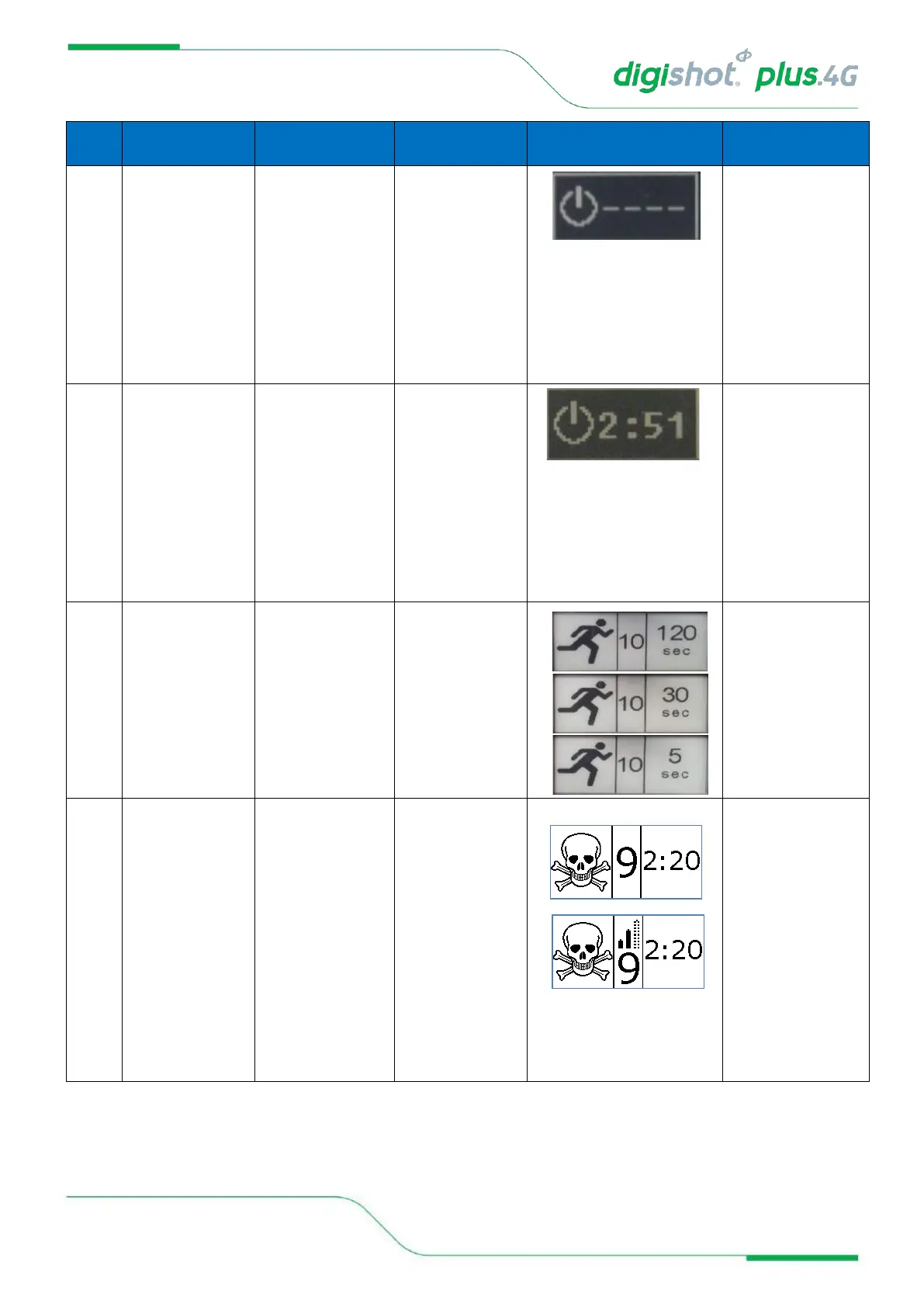

Blast shutdown timer
indicator
Once the Commander
passed the "PRESS
NEXT" state, the
shutdown timer is
started.
When timer expires,
the Commander will
shut down.
Timer indicates hours
and minutes
Timer inactive
Blast shutdown timer
inactive.
Commander will be
turned off if Auto
Shutdown timer
(inactivity timer)
expires.
Timer active
Blast shutdown timer
active. Auto Shutdown
timer deactivated when
Blast shutdown timer is
started, and
Commander will shut
down after Blast
shutdown timer expires
2hrs 51 minutes as per
this displayed icon.
If Bench is in GRACE
after Function button
was pressed to ARM
and the Wi-Fi/USB
connection is severed
/ lost / disconnected,
this display indicates
the Bench grace time
counting down,
If Bench is in state
after GRACE is timed
out and the Wi-
Fi/USB connection is
severed / lost /
disconnected, then
this display indicates
the Bench is in a
potentially dangerous
state, awaiting ARM
command either from
CE4 Tagger or from
Base
The top figure indicates
a local blast, where RF
is not used or for
remote, when RF is not
connected. Bottom
figure indicates RF
signal
