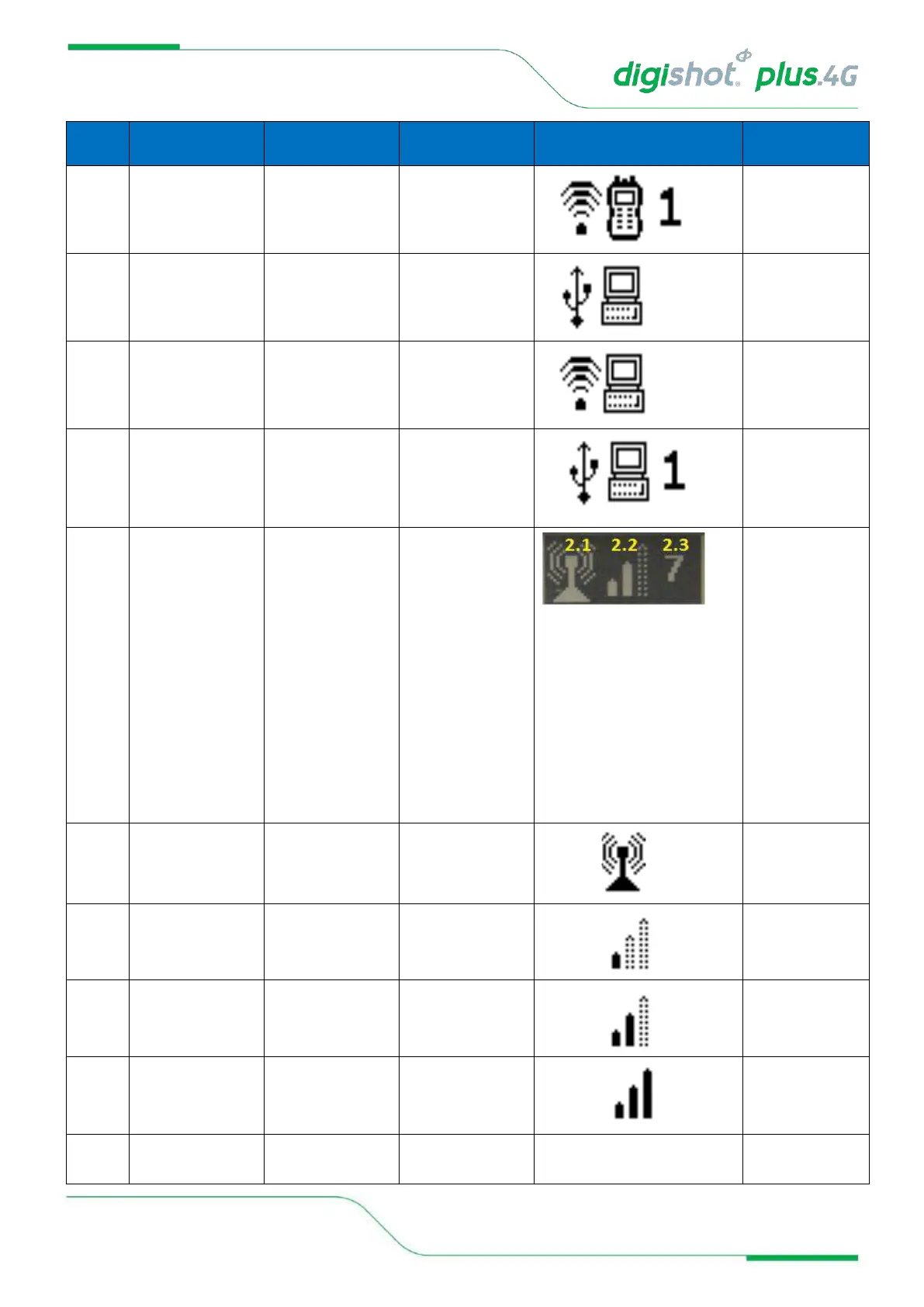

Item #
Description
Detail
Indication
Icon
Options / Variants
/ Description
1.4
Possible connection
combinations
Wi-Fi and USB
connections, and
combinations
thereof.
CE4 Tagger ID 1
connected via Wi-Fi
PC connected via
USB
PC connected via
Wi-Fi
PC connected via
USB
AND
CE4 Tagger ID 1
connected via Wi-Fi
2
RF connectivity
indication area
Indicates whether the
RF module on this
Repeater is active.
On Repeater the RF
module is
permanently
engaged.
Indicates whether
Base Commander is
connected to one or
more Benches via
RF
Indicates the signal
quality of the RF
connection as
reported by the
Base.
Connected to Bench
(In this case
connected to 1
Bench - section 2.3)
2.1
RF active
RF active
2.2
RF signal quality
Signal low
Signal medium
Signal high
No connection to
Benches
Blank space
