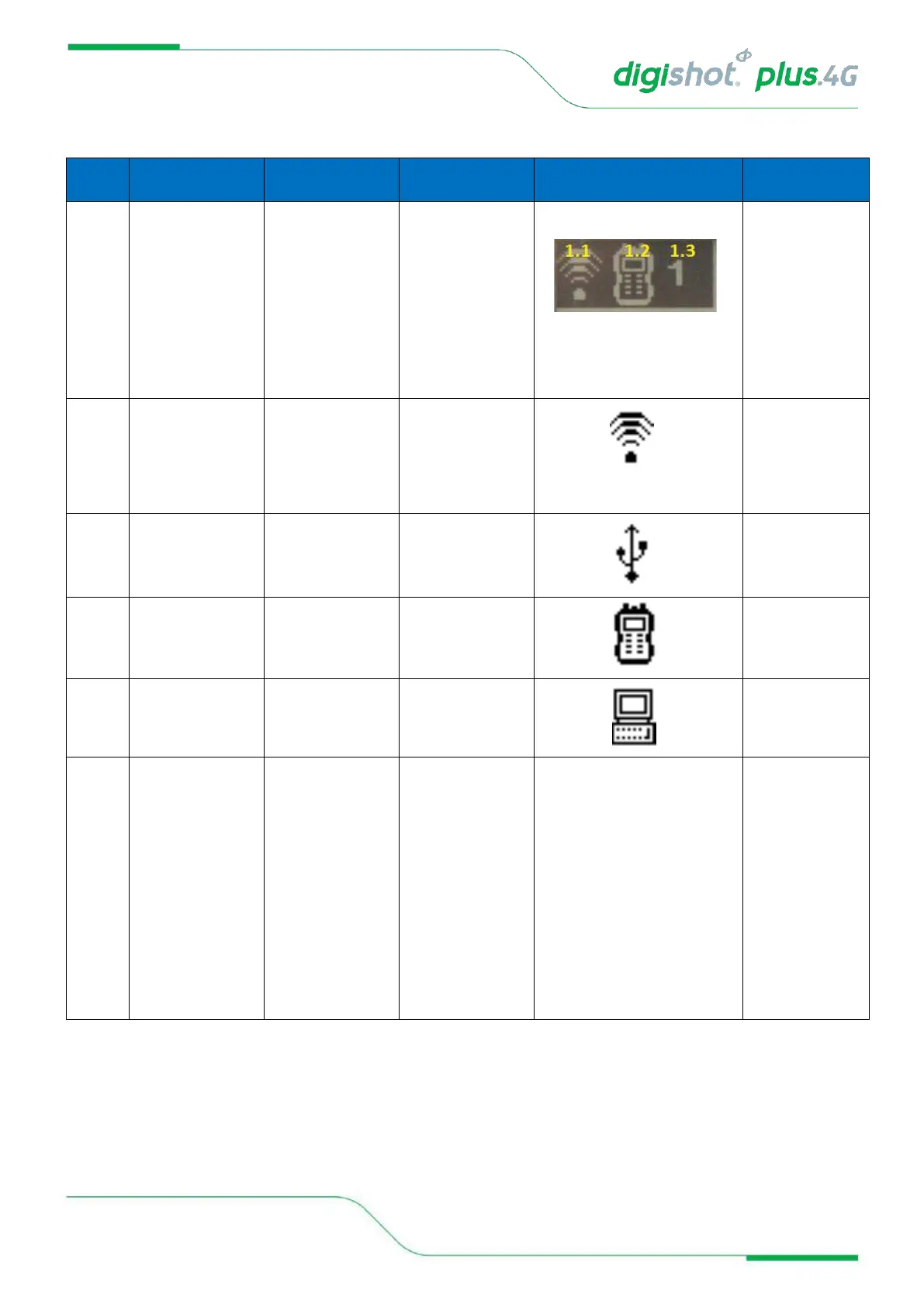

Table 11: Repeater Screen Icons
Item #
Description
Detail
Indication
Icon
Options / Variants
/ Description
1
Wi-Fi / USB
connectivity
indication area (CE4
Tagger or PC)
Indicates whether
Commander is
connected via Wi-Fi
or USB
Indicates whether
Commander is
connected to CE4
Tagger or PC
Connected to
something
As simultaneous
Wi-Fi and USB
connections are
allowed (one of
each), this section
can indicate a
combination of
connections. See
point 1.4 for
possible
combinations.
1.1
Connection type
Indicates the
connection type and
will also show the
last active
connection type
when disconnected
Connected via Wi-Fi
Connected via USB
1.2
Type of device
connected to
Indicates the type of
device / driving unit
that the Commander
is connected to.
Connected to CE4
Tagger
Connected to PC
1.3
CE4 Tagger ID to
which the
Commander is
connected to
Indicates the CE4
Tagger ID to which
the Commander is
connected to.
CE4 Tagger
connections to
Commander is
always via Wi-Fi.
Whenever a non-
zero value is
indicated here, that
value represents an
active Wi-Fi
connection to the
relevant CE4 Tagger.
CE4 Tagger ID
connected to
1…10
