5
1 2 3 4 6
7
8
9
10
11 12 13 14 15 16
17

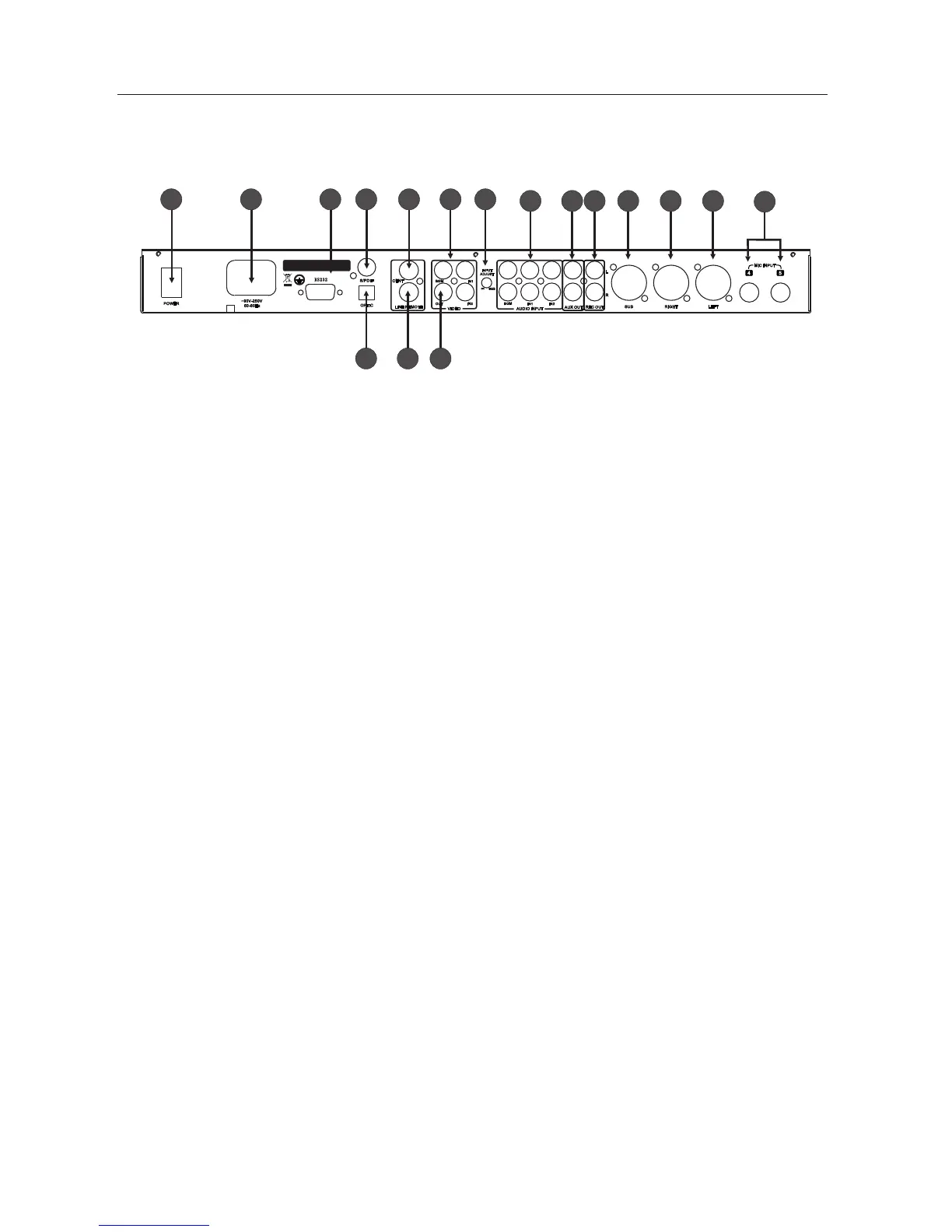

4、Rear Panel instruction
5
1 Power Switch (T1AL/250VAC)
2 Standard IEC Power Input (~ 90V-220V)
3 RS232 interface
4 Digital Audio Output (S / PDIF)
5 The OPTIC Interface (fiber interface)
6 Main Output
7 Remote Line Interface (external remote receiver)
8 3-way video inputs: the background music (BGM) "," Input 1 "," Input 2 "
9 1-way video output interface (selected from the 3-way input signal as the output signal)
10 Audio input level adjustment potentiometer
11 Stereo audio input interface: the background music (BGM) "," Input 1, Input 2
12 Auxiliary output (use as surround output)
13 Recording output
14 Sub woofer output
15 Right main output
16 Left main output
17 Microphone inputs
、
、
、
、
、
、
、
、
、
、
、
、
、
、
、
、
、
4 5
MIC INPUT
LEFTRIGHTSUB
L
R
REC OUT
AUX OUT
AUDIO INP UT
IN2
BGM
IN1
-
∞
+3d B
INP UT
ADJ UST
BGM
IN1
OUT
VIDEO
CENT
LINE REMO TE
R S 2 32
IN2
POWER
50-60Hz
~90V-250 V
S/PDIF
OPTIC
Made In China
