126
3-3-4 Demilitarized Zone (DMZ)
Demilitarized Zone (DMZ) refers to a special area in your local network. This
area resides in local network, and all computers in this area uses private IP
address, too. But these private IP addresses are mapped to a certain Internet
IP address, so other people on Internet can fully access those computers in
DMZ.
Please follow the following instructions to set DMZ parameters:

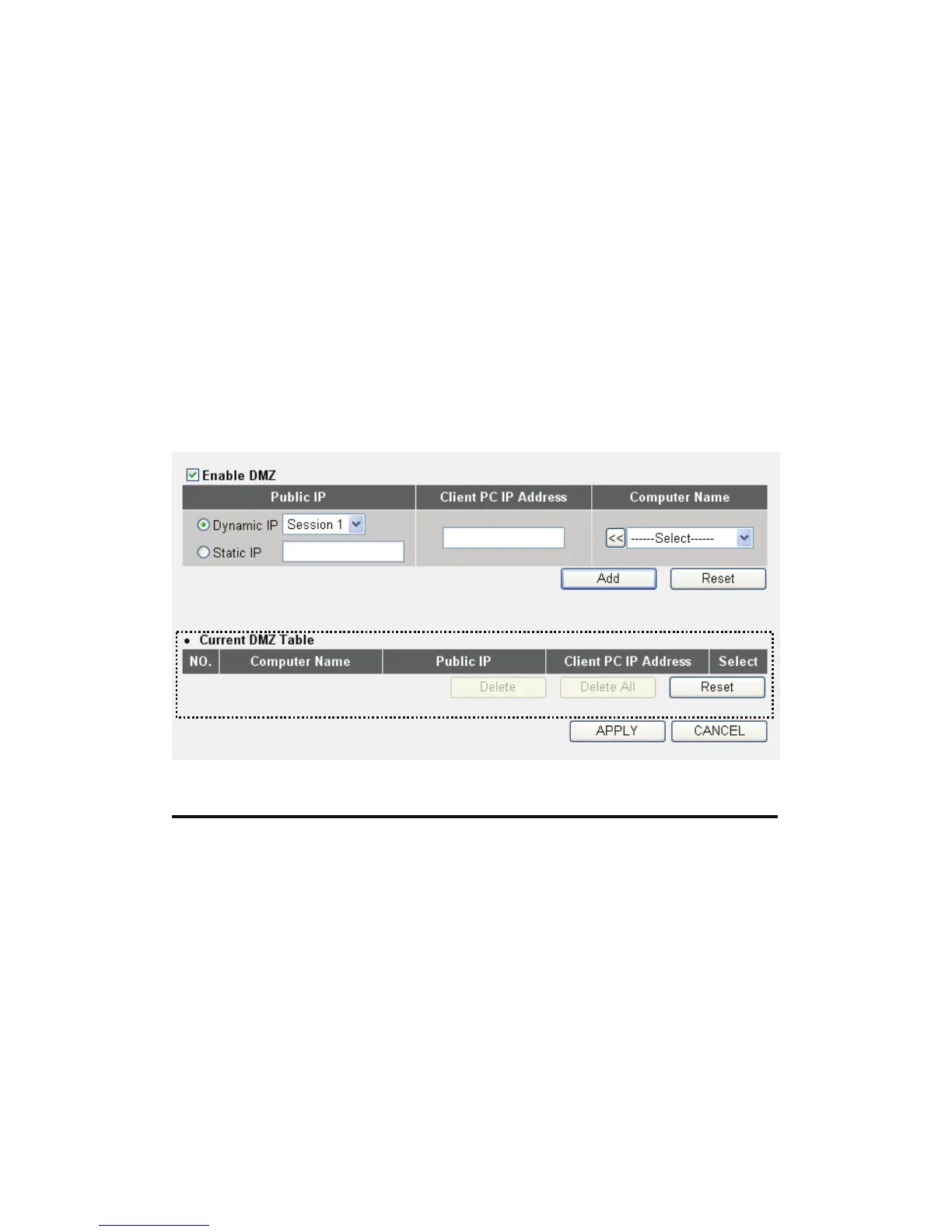

Please click ‘Firewall’ menu on the left of web management interface, then
click ‘DMZ’, and the following message will be displayed on your web browser:
Here are descriptions of every setup items:
Enable DMZ (1): Check this box to enable DMZ function, uncheck this
box to disable DMZ function.
Public IP You can select ‘Dynamic IP’ or ‘Static IP’ here.
address (2): If you select ‘Dynamic IP’, you have to select an
Internet connection session from dropdown menu; if
you select ‘Static IP’, please input the IP address that
you want to map to a specific private IP address.
Client PC IP Please input the private IP address that the
address (3): Internet IP address will be mapped to.
1
2
4
56
7
8 9 10
11
3
To Next Page
