RED (+)12v CONSTANT POWER INPUT
Before connecting this wire, remove the supplied fuse. Connect to the battery
positive terminal or the constant 12V supply to the ignition switch.
Note:
Always use a fuse within 12 inches of the point you obtain (+)12V. Do not
use the 15A fuse in the harness for this purpose. This fuse protects the module.
H1/3

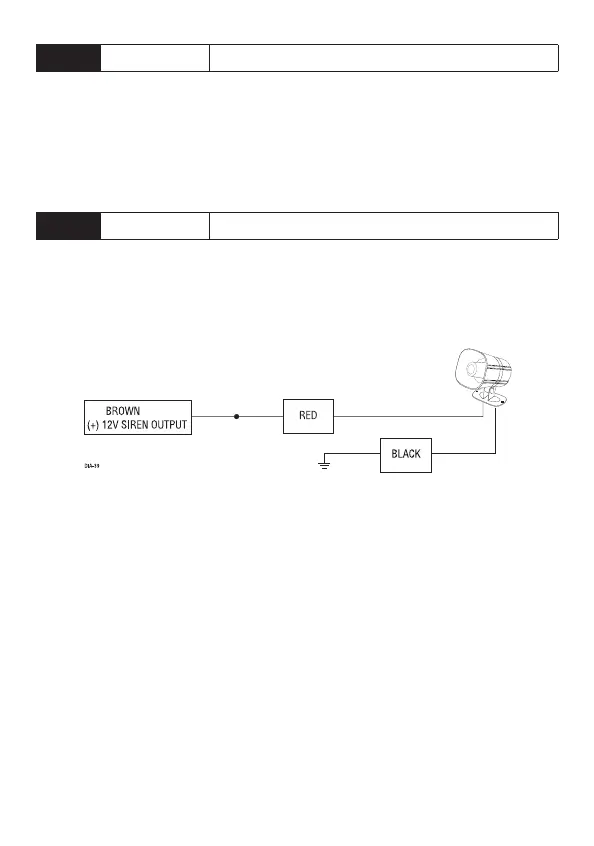

BROWN (+) SIREN OUTPUT
Connect this to the red wire of the siren. Connect the black wire of the siren to (-)
chassis ground, preferably at the same point you connected the control module’s
black ground wire.
