Directed Electronics Python 533 User Manual

31
© 2009 Directed Electronics. All rights reserved.
Shock sensor harness, 4-pin connector
H
GREEN (-) MULTIPLEX INPUT, ZONE 4
Inputs shorter than 0.8 seconds will trigger the Warn Away® response, while
inputs longer than 0.8 seconds will trigger full alarm sequence and report Zone

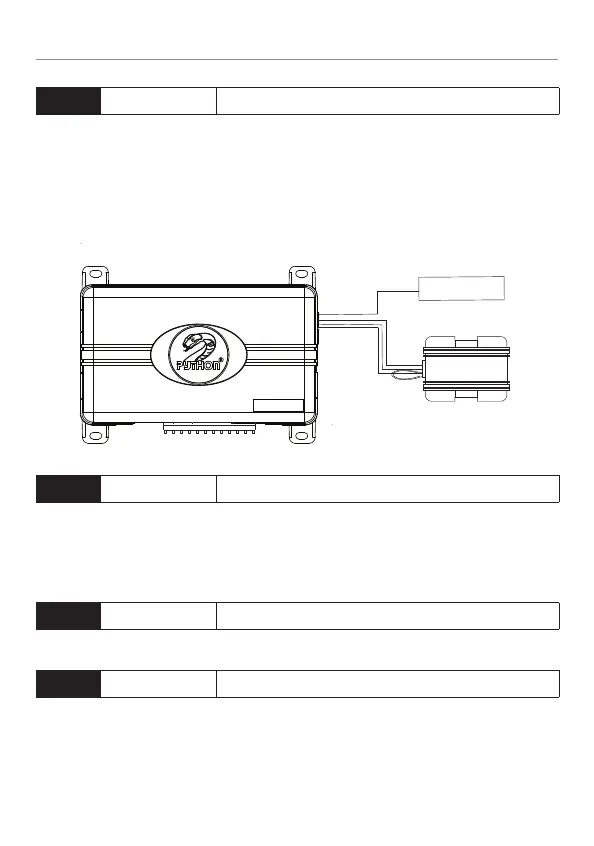

4. If installing an optional Directed Electronics dual stage sensor, connect to the
green wire as shown below. When you use this connection it eliminates the
need for diodes to isolate the sensors.
533
Blue and Green wires from
Directed dual stage sensor
Green Mux Input
H
BLUE (-) MULTIPLEX INPUT, ZONE 2
Inputs shorter than 0.8 seconds will trigger the Warn Away® response, while
inputs longer than 0.8 seconds will trigger full alarm sequence and will also
report Zone Two.
H
RED (+) 12V CONSTANT
Do not use these for anything besides the plug-in shock sensor.
H
BLACK (-) GROUND
Do not use these for anything besides the plug-in shock sensor.
