24
© 2009 Directed Electronics. All rights reserved.
H2/6
LIGHT GREEN/BLACK (-) 200mA FACTORY DISARM OUTPUT
This wire sends a (-) 200mA pulse every time the remote start is activated, trunk
release is activated (programmable on/off), or when the doors are unlocked
with the remote. This can be used to pulse the disarm wire of the vehicle's fac-
tory anti-theft device. Use a relay to send a (-) or (+) pulse to the disarm wire as
shown in the following diagrams

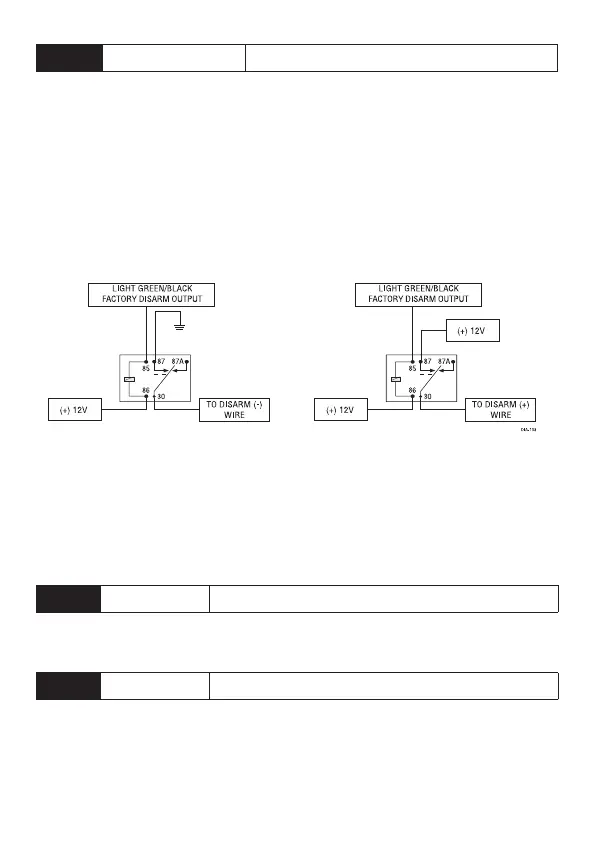

Relay for Negative (-)
Disarm Wire
Relay for Positive (+)
Disarm Wire
➤ Heavy Gauge relay satellite
The heavy gauge wires coming from the large pin connector are used to ener-
gize the high current circuits in the vehicle. It is crucial to ensure that these con-
nections are capable of handling the current demands. For this reason, Scotch-
Locks, T-taps and other such connectors are strongly discouraged.
H/1
PURPLE (+) STARTER OUTPUT
After cutting the starter wire connect the PURPLE wire to the end going to the
starter motor.
H/2
GREEN STARTER INPUT
After cutting the starter wire connect the GREEN wire to the end going to the
key side of the ignition.
