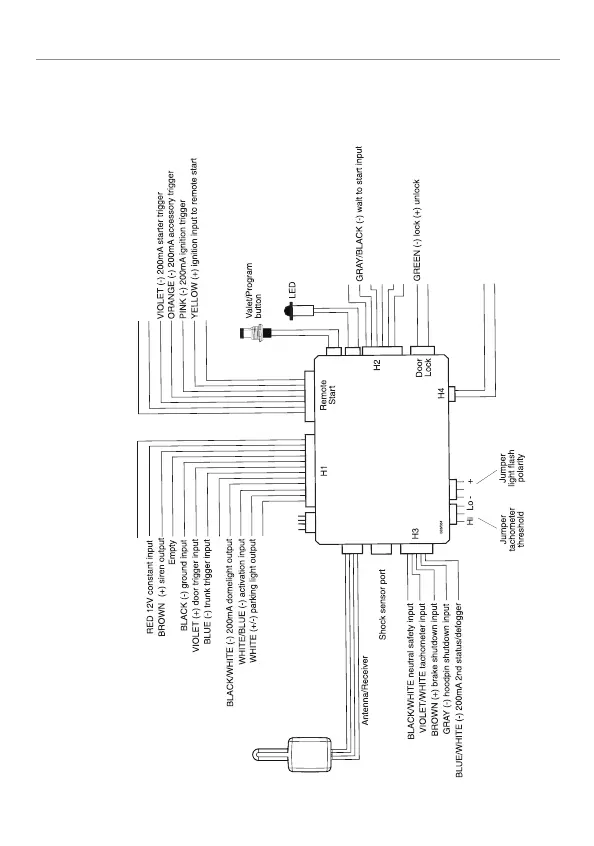

Bitwriter/D2D port
GREEN (-) door trigger input
BLUE (-) 200mA status output
ORANGE/BLACK (-) 500mA anti-grind when armed output
PINK/WHITE (-) 200mA programmable ignition/accessory trigger
VIOLET/BLACK (-) 200mA AUX 2 output
WHITE/BLACK (-) 200mA AUX 3 output
ORANGE/BLACK (-) 200mA Aux 4 output
RED/WHITE (-) 200mA AUX trunk release output
ORANGE (-) 500mA ground when armed output
GREEN/WHITE (-) 200mA factory alarm disarm
LIGHT BLUE (-) unlock (+) lock
LIGHT BLUE (-) 200mA 2nd unlock output
BROWN (-)200mA horn honk output
LIGHT-GREEN/BLACK (-) 200mA factory alarm disarm
