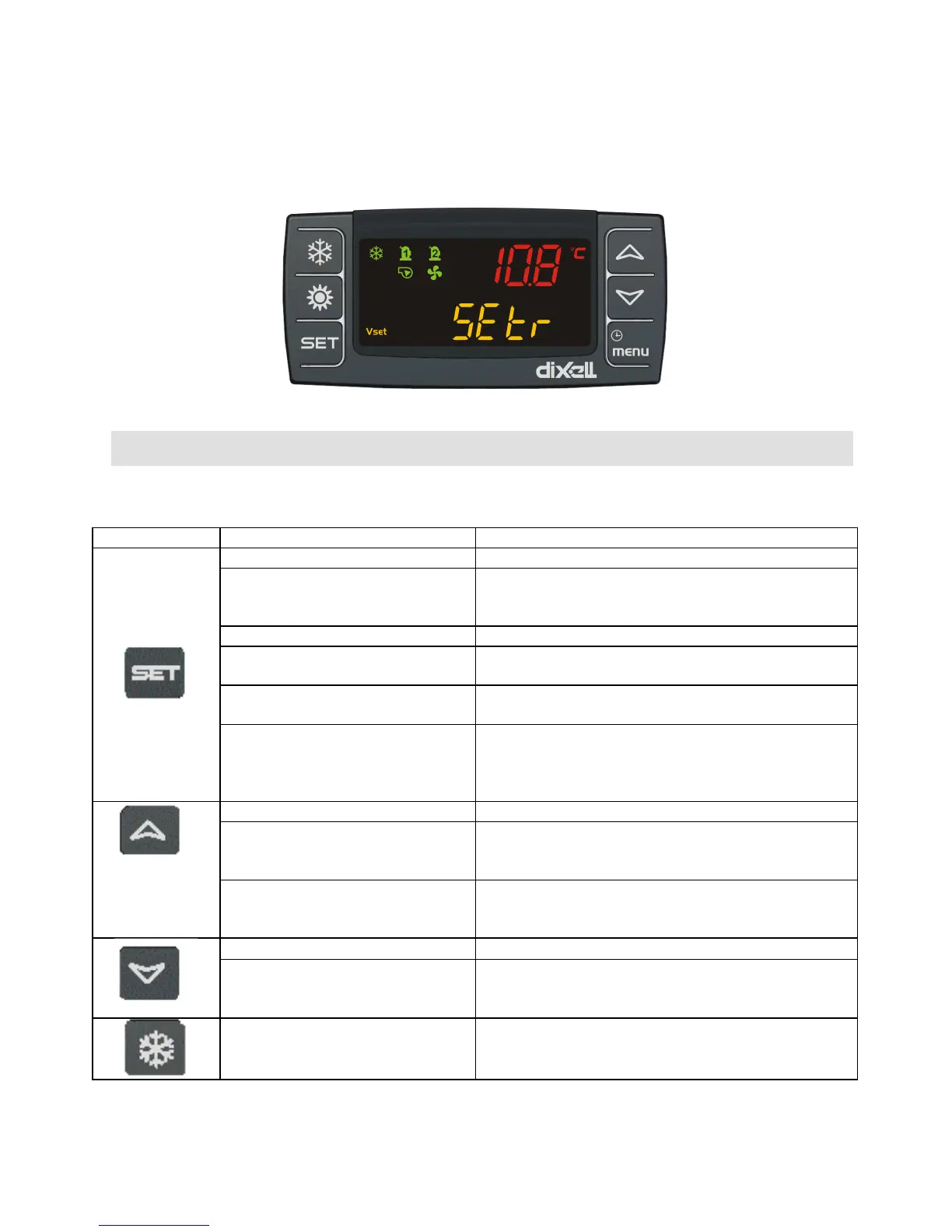

another time the SET key, the bottom display shows “SEtr” (real setpoint), and the top diplay shows
the setpoint that the unit is really using for the thermoregulation.
5.4 KEY FUNCTION
KEY ACTION FUNCTION
Push and release
Show chiller set point SetC and heat pump SetH
Push once again
In chiller or heat pump if the Energy saving or the
Dynamic setpoint are enabled it shows the real
setpoint Setr, the led is blinking.
Push for 3 seconds Set point modification
During the programming: push
once
To enter parameter modification or confirm a
value
Push when an alarm is showed
in menù ALrM
To reset the alarm
Push once with probe label
showed on the bottom display
(press up or down starting from
default visualization)
To read probes values of circuit 1 or circuit 2
Push once To read probes value
Pushing once during the
programming
To change the group of parameters, to change
the parameter, to change the value of the
parameter
Push for 1 second during the
programming when the display
visualize Pr1 or Pr2
1 time shows the Pr2 programming level
2 times shows the Pr3 programming level
Push once To read probes value
Pushing once during the
programming
To change the group of parameters, to change
the parameter, to change the value of the
parameter
Push once
To turn ON or turn OFF the controller (in chiller or
heat pump depending from CF51 parameter)
