15 WIRING CONNECTIONS

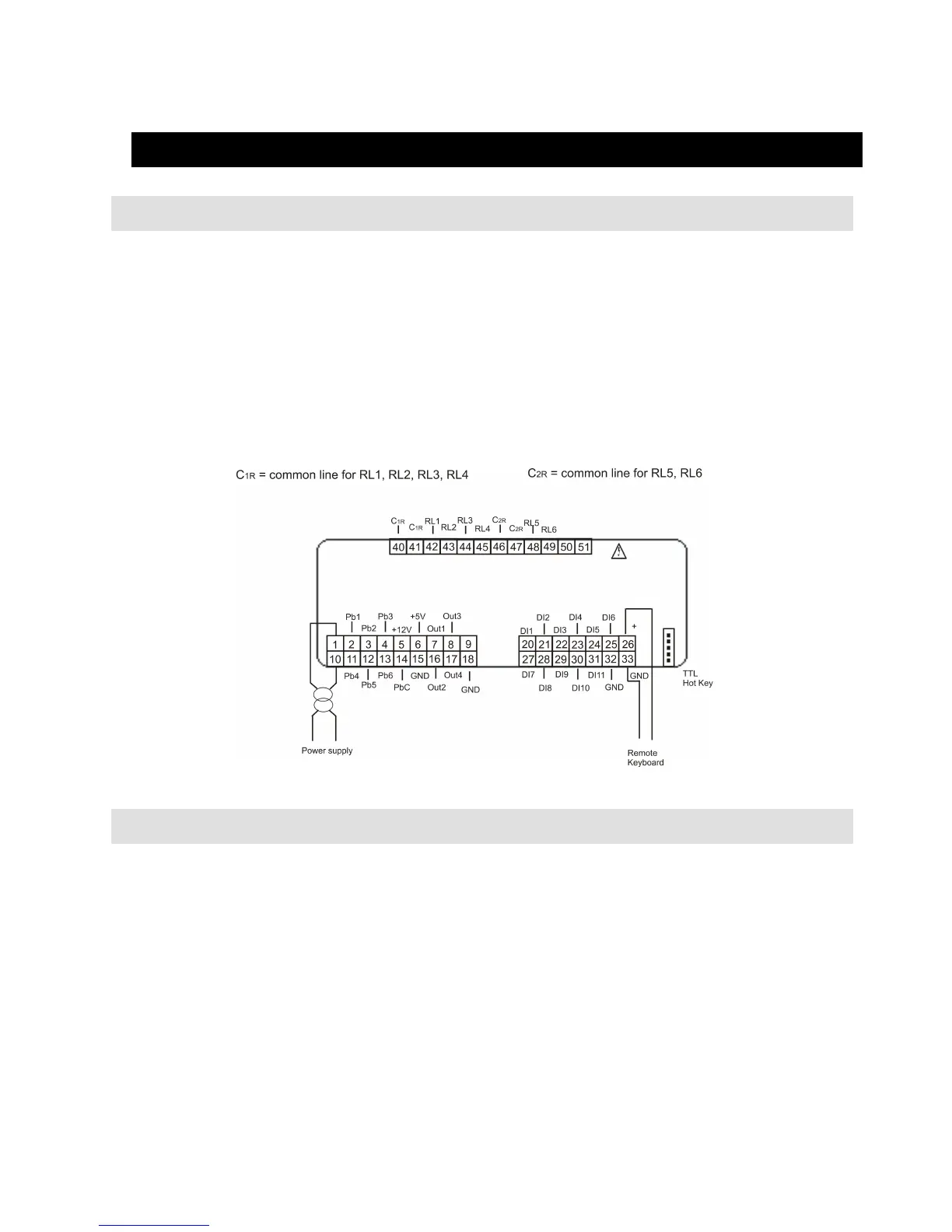

15.1 HARDWARE RESOURCES FOR IC206CX MODEL
6 digital outputs (relays) MAX current on the relay contacts relè 5(2)A 250V - MAX common current
10A 250V
11 digital inputs (free of voltage)
6 analogue inputs:
• 4 NTC / PTC probes
• 2 NTC / PTC / pressure transducer 4÷20 mA / pressure transducer ratio-metric 0÷ 5.0 Volt
4 modulating outputs:
• 2 configurable 0 ÷ 10 Volt
• 2 configurable 0 ÷ 10.0 Volt or cut of phase (for modulating condenser fan)
1 output to connect a remote keyboard (max 2 remote keyboards)
1 TTL output for “Hot Key 64” or for XJ485CX (interface module for monitoring system)
15.2 HARDWARE RESOURCES FOR 208CX MODELS
8 digital outputs (relays) MAX current on the relay contacts relè 5(2)A 250V - MAX common current
10A 250V
11 digital inputs (free of voltage)
6 analogue inputs:
• 4 NTC / PTC probes
• 2 NTC / PTC / pressure transducer 4÷20 mA / pressure transducer ratio-metric 0÷ 5.0 Volt
4 modulating outputs:
• 2 configurable 0 ÷ 10 Volt
• 2 configurable 0 ÷ 10.0 Volt or cut of phase (for modulating condenser fan)
1 output to connect a remote keyboard (max 2 remote keyboards)
1 TTL output for “Hot Key 64” or for XJ485CX (interface module for monitoring system)
