4. Select a parameter family with DOWN or UP keys.
5. Push SET to enter, the bottom display shows the first available parameter label while the top
display shows its value.
The user can shows and modify all the paramters belonging to this family.

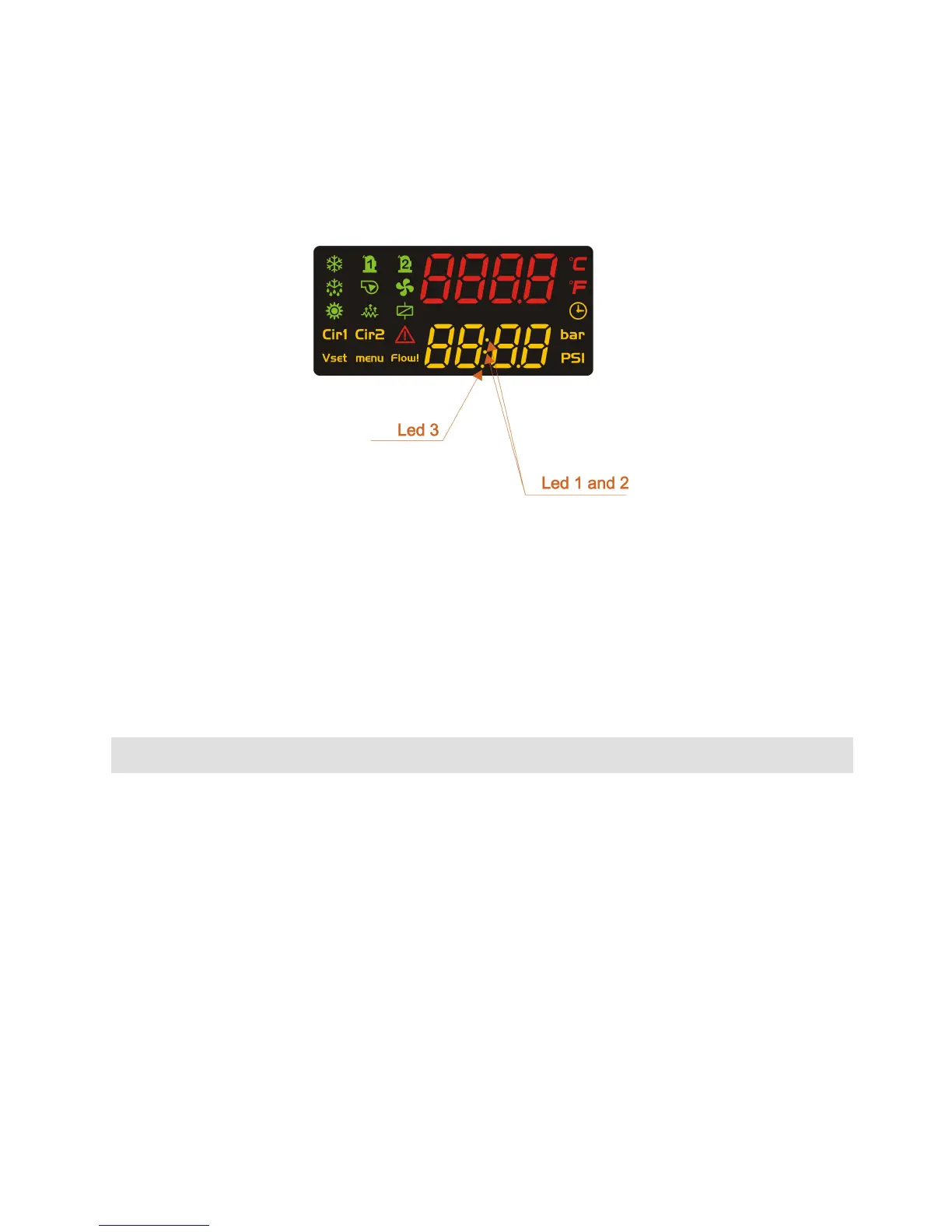

Parameter status, leds and bottom display in Pr2
• Leds 1 / 2 are blinking: the parameter can not be changed.
• All the leds are off: the parameter ca not be seen in Pr1 level.
• Led 3 is on: the parameter can be seen in Pr1 level.
• Led 3 blinking: the parameter can be showed and changed in Pr2, showed but not changed in
Pr1.
• Leds 1 / 2 / 3 are blinking: the parameter can’t be showed and changed in Pr2 and in Pr1.
• In Pr2 level the user can not see and change any parameter of Pr3 level.
• The MENU key allows to exit from a family to reselect another without exit the Pr2 level.
• The MENU key allows to pass to Pr1 starting from a family label.
• To exit completely the programming push SET + UP.
10.7 ENTER THE PROGRAMMING LEVEL PR3
Enter the Pr3 “OEM level ”:
1. Push the SET + DOWN keys together for 3 seconds. The top display shows PAS while the
bottom display shows Pr1 labels.
2. Push UP key for 2 seconds and the top display will show Pr2.
1. Push UP key again for 2 seconds and the top display will show Pr3
3. Push SET key and the top display shows a blinking 0, with UP or DOWN insert the Pr3
password. Push SET and, if the value is correct, top display will show the first family of
parameters “ALL”. Otherwise set the password again.
4. Select a parameter family with DOWN or UP keys.
5. Push SET to enter, the bottom display shows the first available parameter label while the top
display shows its value.
The user can shows and modify all the paramters belonging to this family.
Parameter status, leds and bottom display in Pr3
To Next Page
