4 XT30/XT50 User Guide Introduction
Select Keys and Select Areas
Thinline™, Aqualite™, Icon and Wireless Keypads:
There are four keys under the display called the select keys. On
Graphic Touchscreen keypad these are referred to as the select
areas. These keys are one of the features that make your system so
easy to operate. They allow you to make selections by pressing the
select key or area under a choice shown in the display.
Note: For the purposes of this guide, when instructed to press the
rst select key, press the far left select key; the second select key
is the second from the left; third select key is second from the
right; and the fourth select key is the far right key.
Graphic Touchscreen Keypads:
There are four Select Areas in the display. These select Areas are
one of the features that make your system so easy to operate. They
allow you to make selections by touching the area to choose the
item in the display.
Note: For the purposes of this guide when using Graphic Touchscreen
Keypads, when instructed to press the rst select key, touch select
area 1; the second select key touch select area 2; third select key
touch select area 3; and the fourth select key touch select area 4.
Power/Armed LED
Thinline™ and Aqualite™ Keypads:
The Power LED indicates the panel Power status. It is recommended
you contact the service department when the Power LED is off or
blinks.
The Armed LED is ON steady anytime any burglary protection
area is armed and is OFF when ALL areas are disarmed.
LED Operation AC Battery
ON (Steady) OK OK
OFF Trouble N/A
BLINKS OK Trouble
Graphic Touchscreen Keypads:
The LED indicates the Power and Armed status of the panel.
Depending on the operation, the LED displays in Red or Blue as
listed in the table.
Color and Activity LED Operation
Blue Steady Panel Disarmed, AC Power OK, Battery OK
Blue Blinking Panel Disarmed, AC Power OK, Battery Fault
No Light Panel Disarmed, AC Power Fault, Battery OK
Red Steady Panel Armed, AC Power OK, Battery OK
Red/Blue Alternate Panel Armed, AC Power OK, Battery Fault
Red Blinking Panel Armed, AC Power Fault, Battery OK

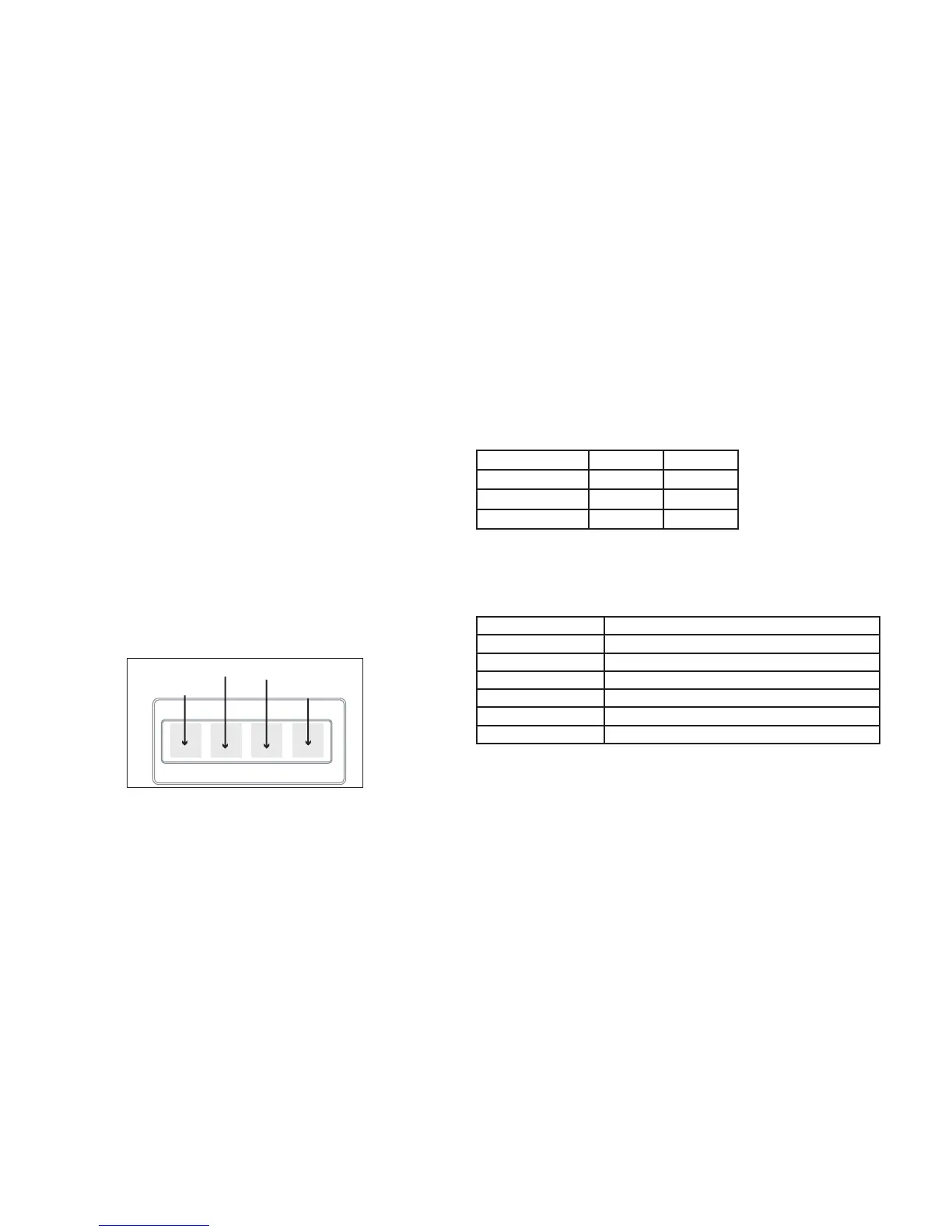

32-Character Display
Select Area 1
Select Area 3
Select Area 2
Select Area 4
Touch Select Areas
