8 XT30/XT50 User Guide Introduction
Connect Keyring or Lanyard Here
LED
2-Button Layout 1-Button Layout
4-Button Layout
TOP
TOP
BTM
LFT
RGT
TOP
BTM

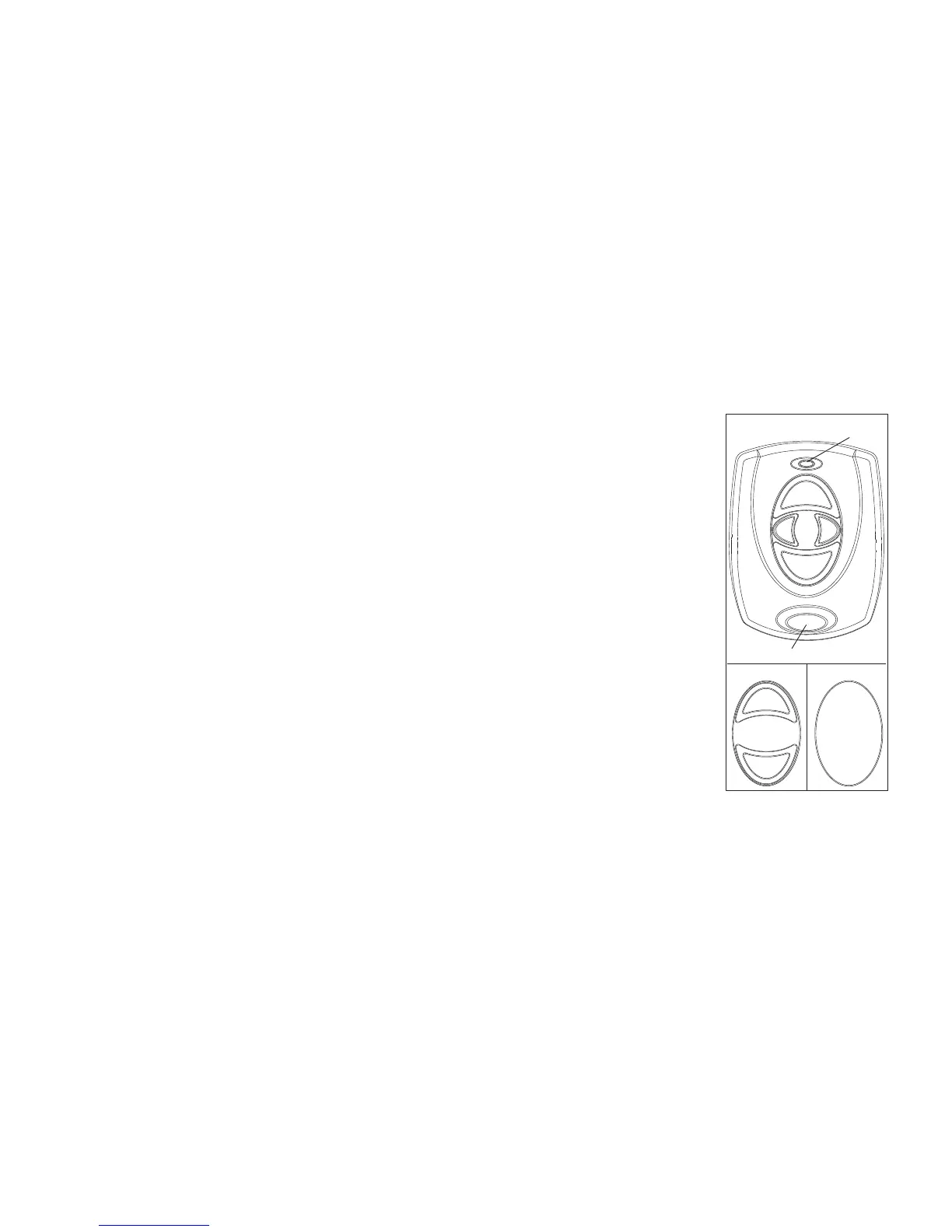

Key Fob Examples and
Button Names
Following are brief descriptions of the different tones you may hear
from the keypad.
Fire alert: An intermittent sweeping siren from LCD keypads that
continuously repeats until the alarm is silenced. This is in addition
to the bell output from the alarm panel.
Burglary alert: A siren tone from LCD keypads that continues until
the alarm is silenced. This is in addition to the bell output from the
alarm panel.
Key press tone: A short beep as you press a key on the keypad.
Prewarn tone: A continuous pulsed tone that sounds when you
open an entry delay door on a system that is armed (turned on)
reminding you to disarm the burglary protection.
Your system will silence the tone as soon as the rst user code
digit key is pressed. If a valid user code is not entered within 5
seconds or an invalid user code is entered, the prewarn tone begins
sounding again.
Exit tone: When fully arming your system to leave, a continuous
pulsing tone sounds during the exit countdown just after arming to
remind you to exit the premise. At ten seconds prior to the end of
the countdown, the rate of pulsing increases.
Monitor tone: A pulsed tone that sounds one time for one second
each time a door or window is opened while you are using the zone
monitor function from the User Menu. See Zone Monitor.
Trouble tone: A steady tone indicating a trouble condition on your
system. Press any key to silence the trouble tone.
What to do when the trouble tone sounds
You can silence the trouble tone by pressing any key.
This only silences the keypad and does not correct the
condition that originally caused the trouble.
1100 Series Wireless
Your system may include wireless devices such as key
fob(s). There are three types of wireless key fobs available:
4-Button Model 1144-4 Key Fob
2-Button Model 1144-2 Key Fob
1-Button Model 1144-1 Key Fob
The drawing shows the button
layout for all three models for your
reference. Each button on the key
fob is programmed to perform a
specic action. The button names
are listed for your reference.
TOP = the Key Fob Top button
BTM = the Key Fob Bottom button
LFT = the Key Fob Left button
RGT = the Key Fob Right button
The button programming list for the
key fob(s) connected to your system
is located in the System Setup section
of this guide. Refer to Appendix B for
LED Status operation information.
Specic function labels can be added
to each button to indicate button
operation.
For best operation, allow the LED
to turn on and then turn off before
pressing another button. The key
fob may not complete sending the
signal for the button press if another
button is pressed too soon.
