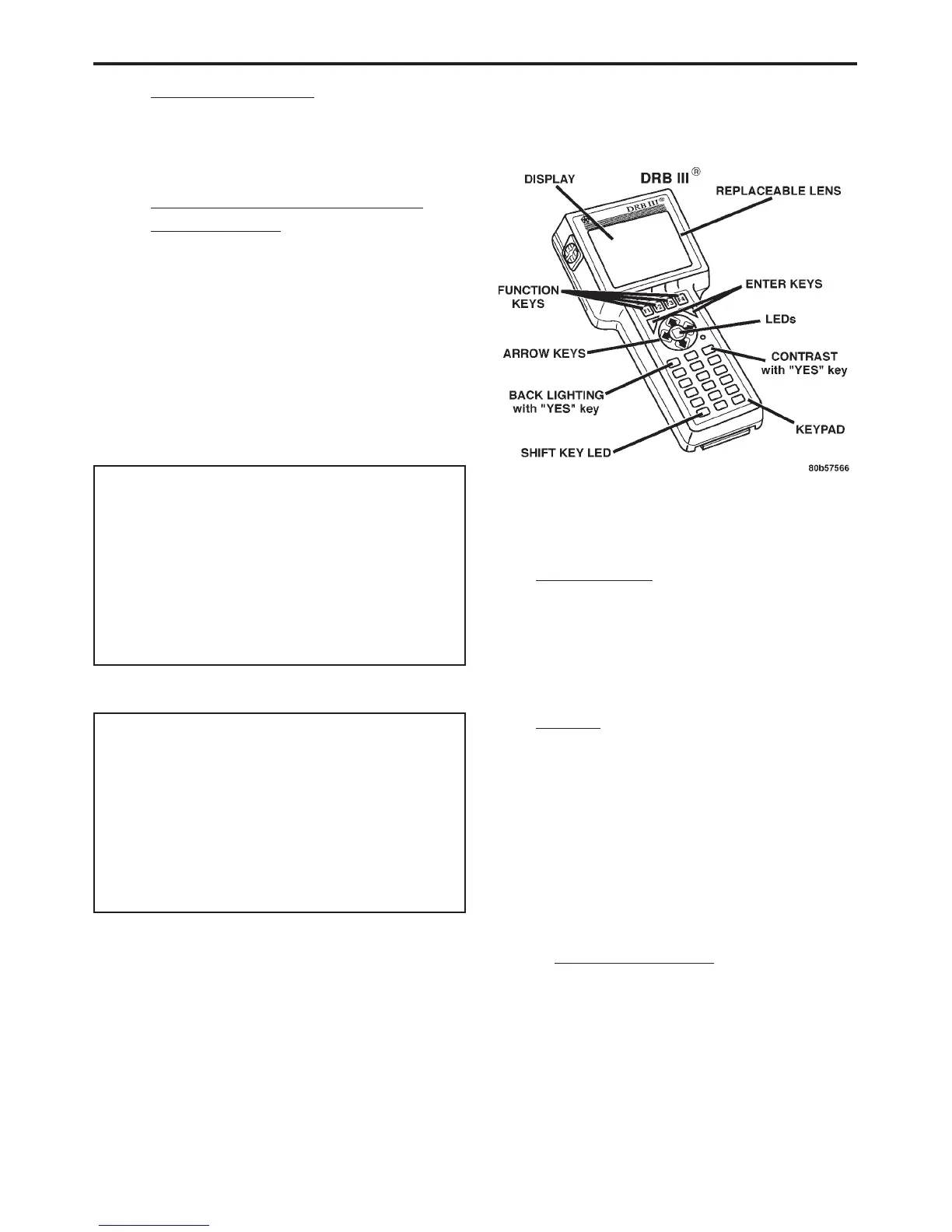

3.17 USING THE DRBIIIT
Refer to the DRBIIIt user’s guide for instructions
and assistance with reading trouble codes, erasing
trouble codes, and other DRBIIIt functions.
3.18 DRBIIIT ERROR MESSAGES AND
BLANK SCREEN
Under normal operation, the DRBIIIt will dis-
play one of only two error messages:
– User-Requested WARM Boot or User Re-
quested COLD Boot.
If the DRBIIIt should display any other error
message, record the entire display and call the
STAR Center. This is a sample of such an error
message display.
– User-Requested WARM Boot by pressing
MORE and NO at the same time.
ver: 2.29
date: 1 Oct 93
file: key_itf.cc
date: Jan 12 1994
line: 544
err: 0x1
User-Requested WARM Boot
Press MORE to switch between this display
and the application screen.
Press F4 when done noting information.
or User-Requested COLD Boot by pressing
MORE and YES at the same time.
ver: 2.29
date: 1 Oct 99
file: keyhnd1.cc
date: Mar 8 2000
line: 1297
err: 0x1
User-Requested COLD Boot
Press MORE to switch between this display
and the application screen.
Press F4 when done noting information.
3.18.1 DRBIIIT DOES NOT POWER UP
If the LEDs do not light or no sound is emitted at
start up, check for loose cable connections or a bad
cable. Check the vehicle battery voltage (data link
connector cavity 16). A minimum of 11 volts is
required to adequately power the DRBIIIt. Check for
proper ground connection at DLC cavities 4 and 5.
If all connections are proper between the DRBIIIt
and the vehicle or other devices, and the vehicle
battery is fully charged, an inoperative DRBIIIt may
be the result of faulty cable or vehicle wiring.
3.18.2 DISPLAY IS NOT VISIBLE
Low temperatures will affect the visibility of the
display. Adjust the contrast to compensate for this
condition.
4.0 DISCLAIMERS, SAFETY,
WARNINGS
4.1 DISCLAIMERS
All information, illustrations, and specifications
contained in this manual are based on the latest
information available at the time of publication.
The right is reserved to make changes at any time
without notice.
4.2 SAFETY
4.2.1 TECHNICIAN SAFETY INFORMATION
WARNING: WHEN OPERATING, ENGINES
PRODUCE AN ODORLESS GAS CALLED
CARBON MONOXIDE. INHALING CARBON
MONOXIDE GAS CAN RESULT IN SLOWER
REACTION TIMES AND CAN LEAD TO
PERSONAL INJURY OR DEATH. WHEN THE
ENGINE IS OPERATING, KEEP SERVICE
AREAS WELL VENTILATED OR ATTACH THE
VEHICLE EXHAUST SYSTEM TO THE SHOP
EXHAUST REMOVAL SYSTEM.
Set the parking brake and block the wheel before
testing or repairing the vehicle. It is especially
important to block the wheels on front-wheel drive
vehicles; the parking brake does not hold drive
wheels.
When servicing a vehicle, always wear eye pro-
tection, and remove any metal jewelry such as
