Dodge Ram 2004 - Blend Door Actuator (Single Zone) - 2 Way; Blower Motor - Black 2 Way; Blower Motor Resistor Block - Black 4 Way; Brake Transmission Shift Interlock Solenoid - Black 2 Way

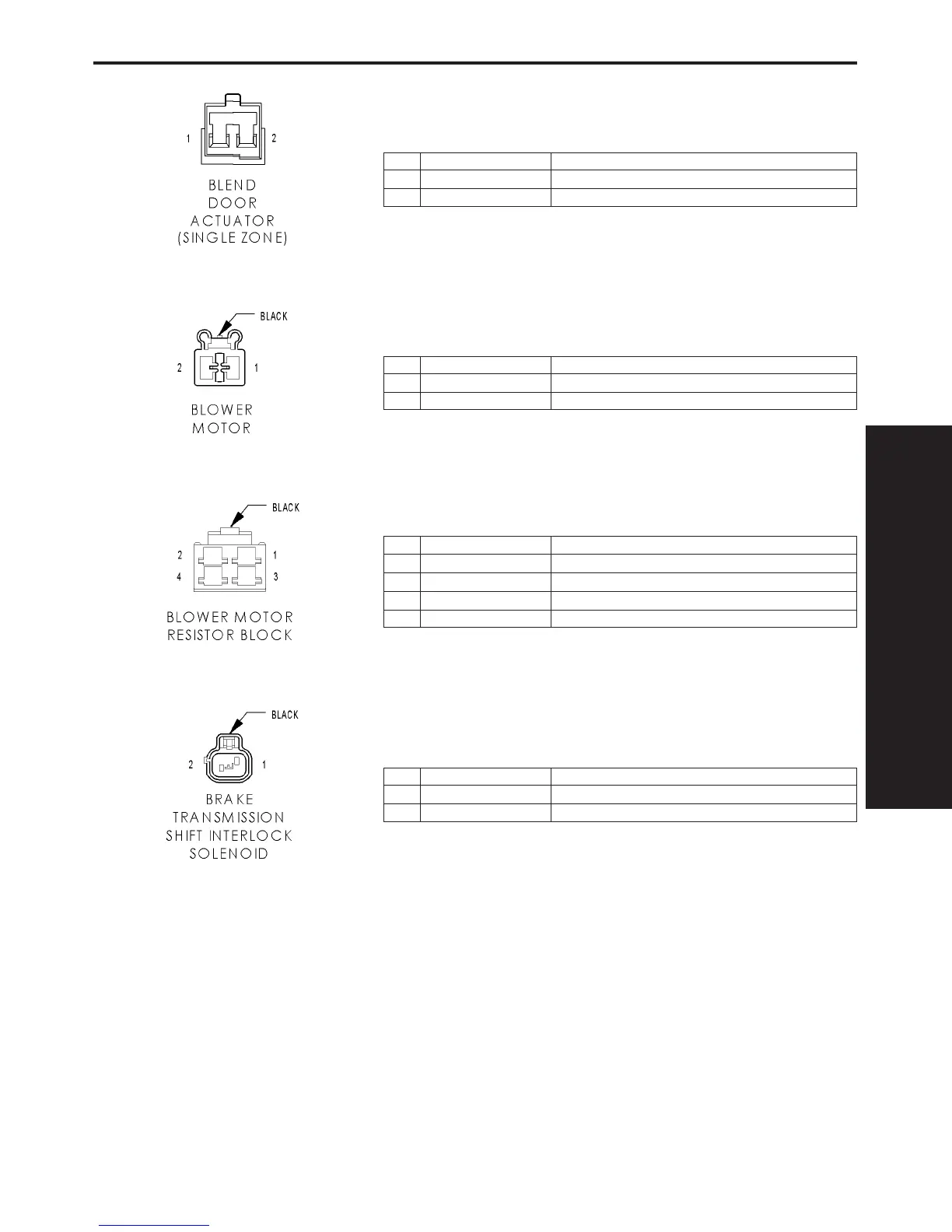

BLEND DOOR ACTUATOR (SINGLE ZONE)-2WAY
CAV CIRCUIT FUNCTION
1 C34 20DB/LB COMMON DOOR DRIVER
2 C61 20DB/LG BLEND DOOR DRIVER
BLOWER MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C70 10DB/YL BLOWER MOTOR HIGH DRIVER
2 C7 10DB BLOWER MOTOR FEED
BLOWER MOTOR RESISTOR BLOCK - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 C72 16DB/OR BLOWER MOTOR M1 DRIVER
2 C70 12DB/YL BLOWER MOTOR HIGH DRIVER
3 C71 16DB/BR BLOWER MOTOR LOW DRIVER
4 C73 14DB/VT BLOWER MOTOR M2 DRIVER
BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K32 18DB/YL BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID CONTROL
2 Z101 18BK/VT GROUND
