Hex wrench

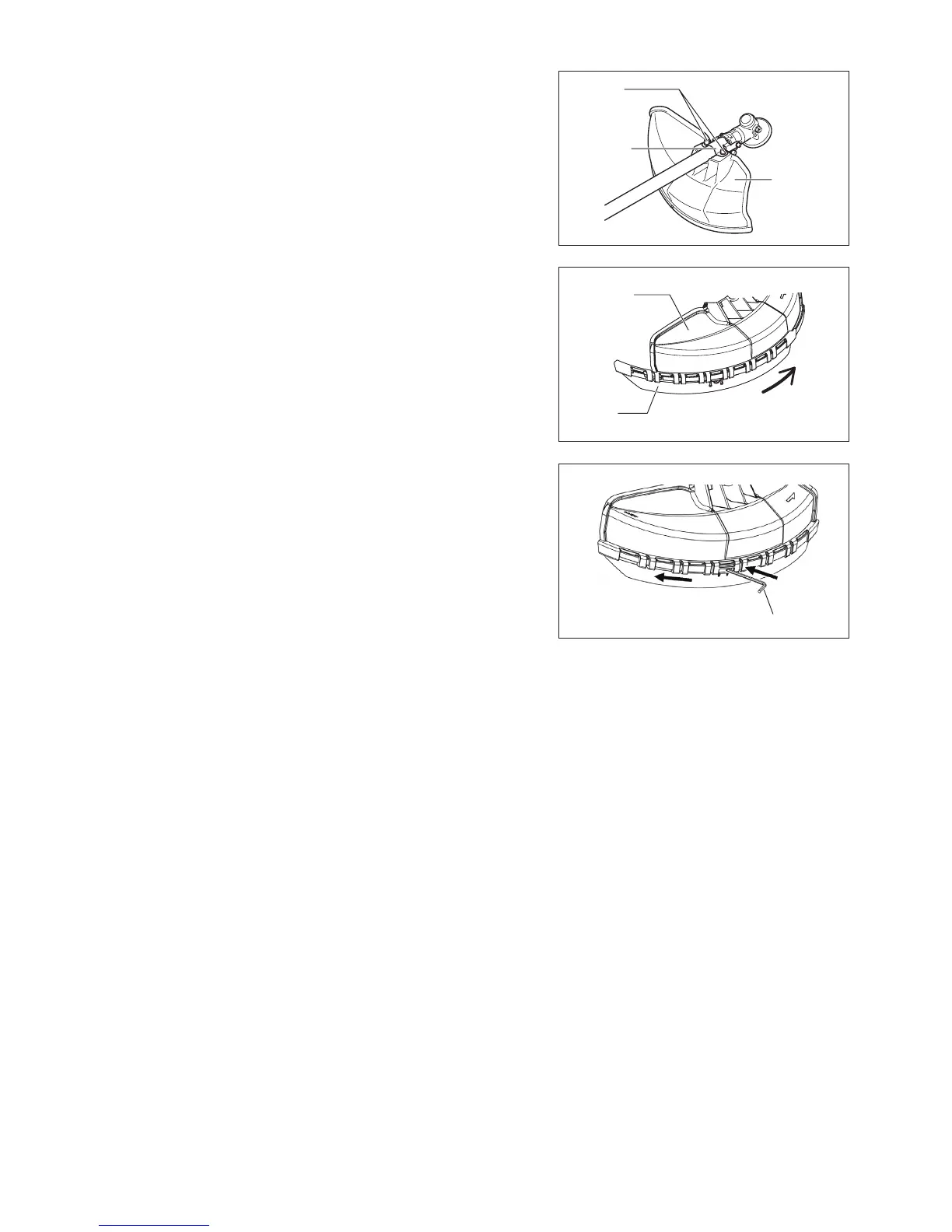

In use of the metal blade, fix the protector (3) to the clamp (2) with two bolts (1). –
NOTE: Tighten the right and left bolts evenly so that the gap between the clamp (2)
and the protector (3) will be constant.
Otherwise, the protector sometimes may not function as specified.
In cases where the nylon cord cutter is to be used, be sure to mount the nylon –
cord cutter protector (4) onto the metal blade protector (3).
Mount the nylon cord cutter protector (4) by sliding it into place from the flank of –
the metal blade protector (3) as shown.
Remove tape adhered to cutter, which cuts nylon cord, on nylon cord cutter –
protector (4).
CAUTION: Be sure to push in nylon cord cutter protector (4) until it is fully inserted.
Take care not to injure yourself on the cutter for cutting the nylon cord.
To remove the nylon cord cutter protector (4), apply a hex wrench into the notch –
on the metal blade protector (3), push it in and meanwhile slide the nylon cord
cutter protector (4).
