Dolmar MS-4215 - Assembly of Engine and Shaft; Connecting Engine and Shaft

CAUTION: Before doing any work on the brushcutter, always switch off the motor
and pull the spark plug connector off the spark plug.
Always wear protective gloves.
CAUTION: Start the brushcutter only after having assembled it completely.

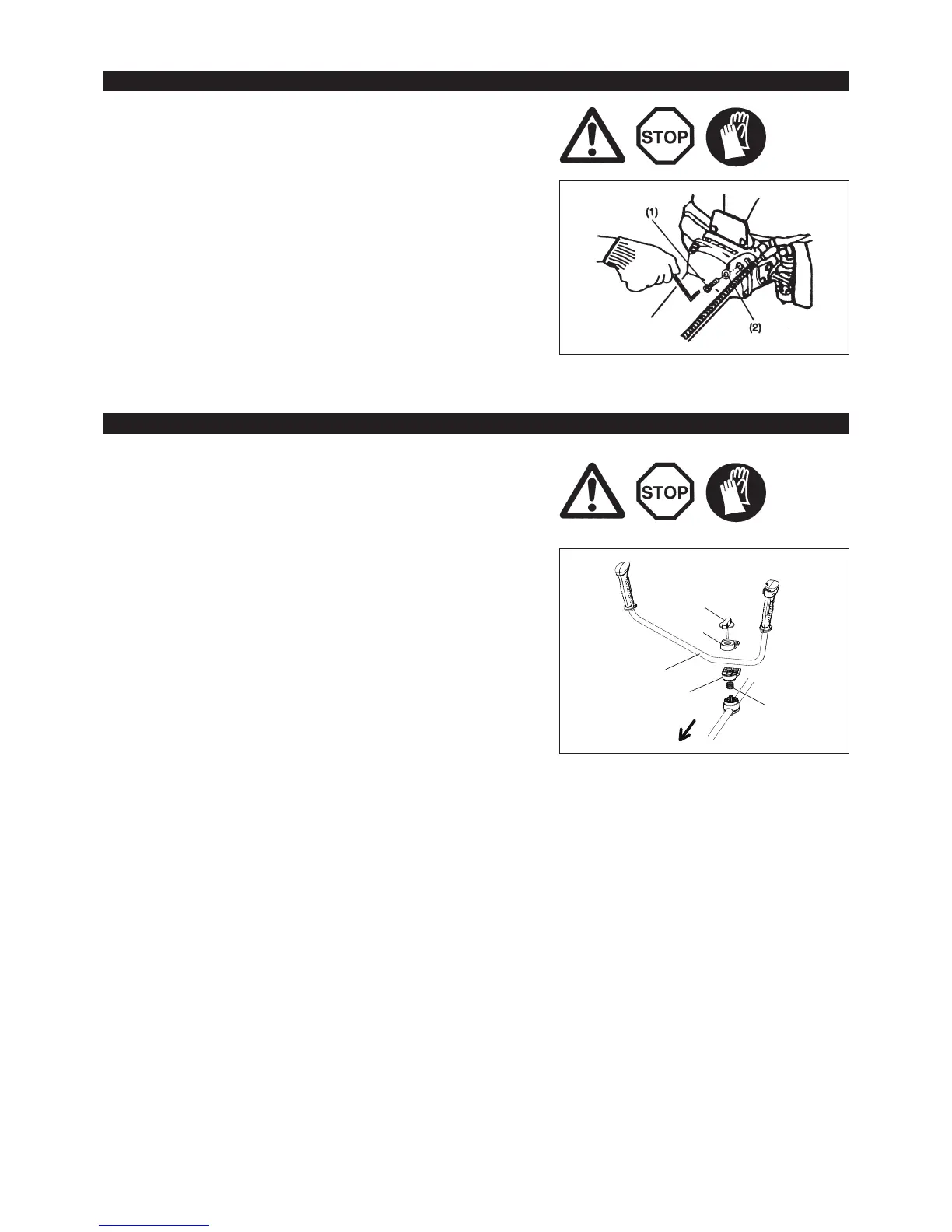

After checking the parts, fasten the drive shaft to the engine with four bolts –
M6 x 20 (1). At this time, fasten also the earth terminal (2) of the stop cord to the
engine.
CAUTION: Before doing any work on the brushcutter, always stop the engine and
pull the spark plug connector off the spark plug. Always wear protective
gloves!
CAUTION: Start the brushcutter only after having assembled it completely.
ASSEMBLY OF ENGINE AND SHAFT
MOUNTING OF HANDLE
(1)
(2)
(3)
(4)
(5)
For model MS-4215
Loosen knob (1). –
Place handle (4) between handle clamp (2) and handle holder (3). –
Adjust handle (4) to an angle that provides a comfortable working position and –
then secure by firmly hand-tightening knob (1).
CAUTION: Do not forget to mount spring (5).
